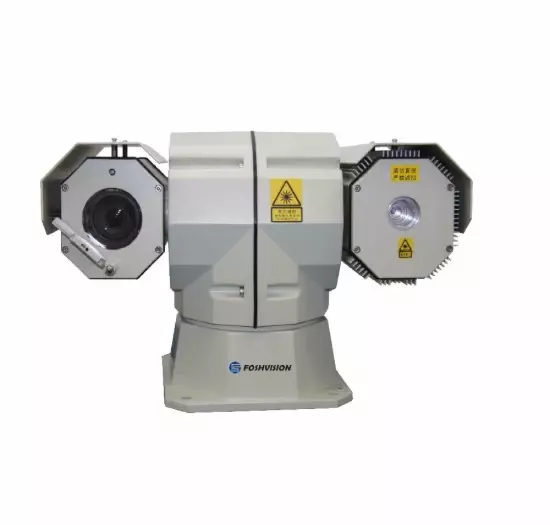

Wholesale Vehicle Mounted WiFi Zoom Stabilizer Thermal IP Security Camera Gimbal Payload Outdoor PTZ

Model NO. HLV535 Daytime Vision Distance 1000m Pixel 2.1 Mega Pixel Daylight Camera Lens 4.5-135mm, 30* Optical Zoom Laser Wave Length 810nm Laser Illuminator Power 5W Coding Format H.264 / H.265 Camera Type Laser Night Vision Camera Presets 256 Presets Protection Degree IP66 Cruising Function 6 Paths Weight 8kg Lens Aperture F1.6~3.5 Factory Yes Certificate CE Transport Package Carton / Wooden Case Specification 8kg Trademark CZVZ Origin Shandong Province, China Production Capacity 1000 Units / Month

Product Description

1. Product Features

 Adopting laser illuminating system, far illuminating distance, wide illuminating range, can monitor in 0Lux completely black

 Day&night low light megapixel color to black camera, day&night continuous monitoring

 Auto white balance, auto gain control, auto exposure control

 High performance video processing chip and H.264 high efficiency video code, providing millions of high definition video image

 Dual stream function, small time delay, fully satisfying different network bandwidth

Fully supporting ONVIF,GB/T28181,providing SDK, can dock with main monitoring platform home and broad

 Motion detection and alarm linkage, providing intelligent video monitoring application

 Capturing and videoing, supporting WEB browsing video, provide access to NVR platform to conduct parameter configuration and operation state management

 Adopting high performance power supply program, wide voltage input, low power consumption, suitable for special power supplying mode such as solar power

 Professionally designed shell, artistic, light, firm, anti-high temp, anti-corrosion, water proof, anti-acid rain

Monitoring distanceNight vision500metersDay vision1000metersCameraSensor1/2.8" Progressive Scan CMOSTotal pixels2.1 MPLens focal lengthf=3.5~135mm,30* optical zoomingLens apertureF1.6~3.5Min illumination0.05Lux(color),0.01Lux(black and white)Electronic shutter speedAuto and manual adjustmentVideoing controlAuto gain control, auto white balance, auto backlightcompensation,supporting manual and auto day and night mode switchVideo coding     Coding modeH.264Video resolution1920x1080Bit rate64Kbps~4MbpsFrame rate1~25F/S(50Hz),1~30F/S(60Hz)Subtitle overlayStation logo, date, timeImage adjustmentBrightness, contrast ratio, saturationProtocolTCP/IP,HTTP,DHCP,DNS,DDNS,RTP,RTSP,PPPoE,SMTP,NTP,UPnP,SNMP,FTP,802.1x,QoS,HTTPS,IPv6 (SIP,SRTP)IlluminatorPower5wWave length810nmIlluminating angle1°~20°,synchronous servo continuous adjustmentLaser homogenizationMCIC homogenization technologyPan-tiltAngleHorizontal 360°continuous rotation,pitching:-90°~+90°speedHorizontal 0°~80°/s,pitching 0°~60°/sPreset bitsMax 256Cruising function6 pathsInterfaceNetwork interface1×10Base-T/100Base-TX,RJ45Power supply interface1×AC 24V socket, for external power supply adapterAudio interface1×Line In,1×Line OutAlarm interface1 switch input, 1switch outputEnvironment indicatorsWorking temp-25ºC~+55ºCStorage temp-40ºC~+65 ºCProtection gradeIP66Anti-vibration10~55Hz,2m/s^2,0.75mmAnti-impact150m/s^2,11msAnti-salt fogcontinuous spraying for 48 hours at PH 6.5-7.2, surface with no changesPower supplyWorking power supplyAC 24V±5% /2.5A,please use appendant power supplyDevice power consumption≤60WPhysical featuresSize240mm×374mm×243mmWeight8KgOthersApplication functionreal-time clock, supporting manually capturing image and manually videoingConfiguration and maintenanceSupporting configuration management and video browsing through WEB browser, providing access to NVR platform to conduct uniform parameter configuration and operating state management, supporting ONVIF2.0,GB2818
