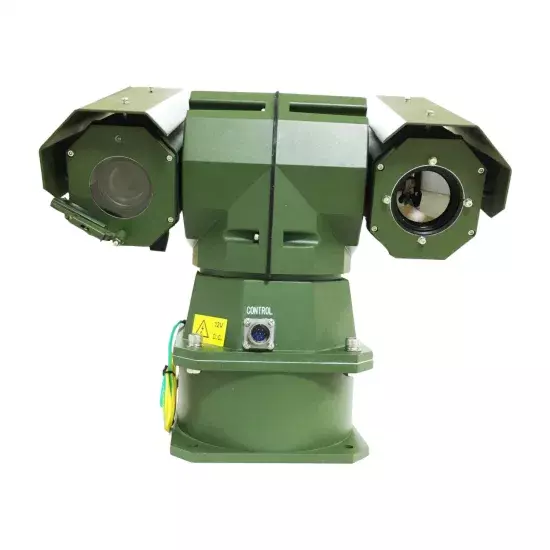

Visible and Thermal Pan/Tilt Dual Sensor Thermal IP Camera

Model NO. HLV330SIR2 Sensor CMOS HDMI Format 1080P Horizontal Resolution 540tvl Kind Autofocus Lens Certification CE, FCC, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition, Vandal-proof Effective Distance ≧30m Sensor Size 1/3 inch Remote Control With Remote Control Weight 7.5 Transport Package Carton Specification 223mm× 206mm× 82mm Trademark CZVZ Origin Shandong Province, China Production Capacity 200 Units / Month

Packaging & Delivery

Package Size 50.00cm * 40.00cm * 30.00cm Package Gross Weight 12.000kg

Product Description

1 Product Features Integrating infrared thermal imaging, visible light camera and pan-tilt controlling system, realizing day and night omni-directional monitoring Adopting thermal imaging technology, not limited by light source, imaging clearly Day and night 2 megapixel low illuminance color camera, realizing details observing High intelligence, simple to operate, easy to use and maintain 3D locating function, realizing frame selection magnifying and clicking to center, reducing operating difficulty, enhancing device usability Universal variable speed pan-tilt, realizing omni-directional no blind angle monitoring and high precision locating  2 Specification   Operating distanceVisible light1000mThermal imagingobjectHuman(1.8m×0.5m)Vehicle(2.3m×2.3m)Detection distance480m1320mRecognition distance120m330mIdentification distance60m160mAll-in-one machineSensor type1/4″EXview HAD CCDEffective pixelAbout 0.44MPHorizontal resolution530TVL(color);570TVL(black and white)Focal length3.4~122.4mm,36× optical zoomingHorizontal FOV1.7°~57.8°Thermal imaging cameraDetector typeuncooled microbolometer focal plane array(Vox)Effective pixels384×288Spectral range8~14μmTemp sensitivity≤[email protected],300KFocal length20m(athermalization design)FOV27.0°×20.4°Frame rate25HzImage processingDDE, pseudo colorPan-tiltAngleHorizontal 360°continuous rotation,pitching -90°~+90°speedHorizontal 0°~50°/s,pitching 0°~50°/sPreset bitsMax 128Cruising6cruising paths,20 bits each pathAnti-lightningTVS 6000VInterfacePower supply interfaceDC12VOther interfacesRS485,2xBNC video outputEnvironment indicatorsWorking temp-25ºC~+55ºCStorage temp-40ºC~+65ºCRelative humidity10%~90%Anti-salt fogcontinuous spraying for 48 hours at PH 6.5-7.2,surface with no changesProtection gradeIP66Power supplyWhole machine power supplyDC12V,appendant 220VAC~12VDC/3A water proof power supplyWhole machine power consumption≤30WPhysical featuresWhole machine weight7.5kgInstallation methodOutdoor pedestal mounting    3 Our Services (1)  We generally offer one year warranty. Extended warranty is also available.  (2) Life-long technical support. Professional technical team and salesperson help you with troubleshooting procedures any time when needed. (3) We accept OEM. (4) We offer customized product.    4 Company Introduction China CZVZ Optics & Electronics Co., Ltd, which was founded in 2004, is a leading night vision equipment and rugged information equipment supplier, as well as a relying construction company of Shandong Province Academician Workstation and Night Vision Surveillance Engineering Technology Research Center. CZVZ adheres to independent innovation, developed the world's first laser night vision camera and the first uncooled continuous zoom infrared thermal imaging camera with independent intellectual property rights, its synchronous zoom laser night vision technology and continuous zoom thermal imaging technology have reached international advanced standard level, possess the world's largest market share in laser night vision market. CZVZ's laser night vision and infrared thermal imaging products have been widely used in national defense, safe cities, railways, highways, forest fire, oil and other fields, achieved all-weather surveillance, provided technical support for the maintenance of national security and social stability. CZVZ's rugged information equipment have been widely used in land, sea, air, the Second Artillery Corps, armed police and other branches of the military, greatly promoted the national defense information technology. In addition to domestic market, the company's products have been exported to more than 40 countries and regions all over the world. CZVZ always adheres to "military technology for civilian use " and "joint development of military products and civilian products" strategy, mastered the key technology in optics and rugged computer field, possess complete qualification for research and production of military equipment, directed or participated in a number of military research and production tasks. CZVZ insists on the belief "growing up with customers and employees" and ready to make more contribution to national defense and public security.
