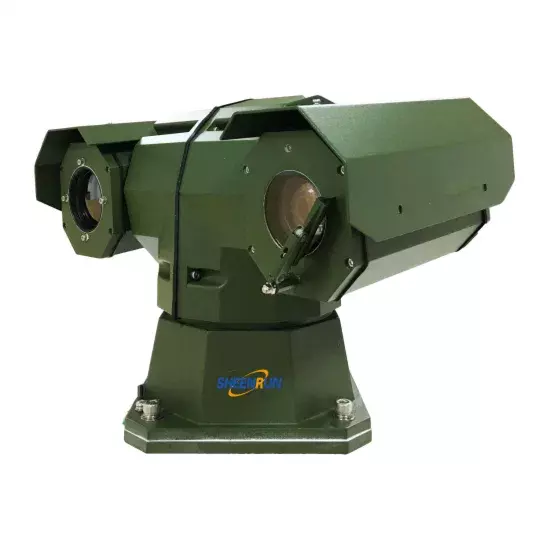

Vehicle/Tower Dual Sensor PTZ Thermal Camera

Sensor CMOS HDMI Format 1080P Horizontal Resolution 600tvl Kind Autofocus Lens Certification CE, FCC, RoHS, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition, Mini Size, Vandal-proof, Auto BLC Effective Distance 200m to 20km Sensor Size 1/3 inch Remote Control With Remote Control Transport Package Wooden Case Specification CE, FCC Trademark SHEENRUN/OEM Origin China Production Capacity 500 PCS/Month

Packaging & Delivery

Package Size 56.00cm * 54.00cm * 33.00cm Package Gross Weight 28.000kg

Product Description

1. Product features

(1) Integrating infrared thermal imaging, visible light camera and pan-tilt controlling system, realizing day and night omni-directional monitoring

(2) Adopting thermal imaging technology, not limited by light source, imaging clearly

(3) Day and night 2 megapixel low illuminance color camera, realizing details observing

(4) High intelligence, simple to operate, easy to use and maintain

(5) 3D locating function, realizing frame selection magnifying and clicking to center, reducing operating difficulty, enhancing device usability

(6) Universal variable speed pan-tilt, realizing omni-directional no blind angle monitoring and high precision locating

2. Technical Parameters

Monitoring distanceVisible light1000mThermal imagingobjectHuman(1.8m×0.5m)Vehicle(2.3 m×2.3 m)Detection distance1200m3300mRecognition distance600m820mIdentification distance150m400mCamera and video codingSensor type1/2.8" Progressive Scan CMOSTotal pixels2.1 MPLens focal lengthf=4.5~135mm,30* optical zoomingCamera controlAuto gain control, auto white balance, auto backlight compensation, supporting manual and auto day and night mode switchCoding formatH.264Video resolution1920x1080Video frame rate1~30F/SImage adjustmentbrightness, contrast ratio, saturationThermal imaging cameraDetector typeuncooled microbolometer focal plane array(α-si)Effective pixels384×288Spectral range8~14μmTemp sensitivity≤[email protected],300KFocal length50mmFOV11.0°×8.2°Frame rate25HzLens controlElectric focusing(auto focusing optional)Image processingDDE, pseudo colorPan-tiltAngleHorizontal 360°continuous rotation,pitching -90°~+90°speedHorizontal 0°~50°/s,pitching 0°~50°/sPreset bitsMax 128Cruising6cruising paths,20 bits each pathAnti-lightningTVS 6000VInterfacePower supply interfaceDC12VNetwork interface1×10Base-T/100Base-TX,RJ45Other interfacesRS485,BNC video outputEnvironment indicatorsWorking temp-25ºC~+55ºCStorage temp-40ºC~+65ºCRelative humidity10%~90%Anti-salt fogcontinuous spraying for 48 hours at PH 6.5-7.2,surface with no changesProtection gradeIP66Power supplyWhole machine power supplyDC12V,appendant 220VAC~12VDC/3A water proof power supplyWhole machine power consumption≤30WPhysical featuresWhole machine weight7.5kgInstallation methodOutdoor pedestal mounting 3. Company Photos 4. Company Introductions     CZVZ Optics & Electronics Co., Ltd, which was founded in 2004, is professional manufacturer of long range thermal imaging camera and laser night vision camera and infrared thermal imaging products, have been widely used in national defense, safe cities, railways, highways, forest fire, oil and other fields, achieved all-weather surveillance, provided technical support for the maintenance of national security and social stability. CZVZ rugged information equipment have been widely used in land, sea, air, the Second Artillery Corps, and other branches, greatly promoted the national defense information technology. In addition to domestic market, the company's products have been exported to more than 40 countries and regions all over the world. CZVZ has passed ISO9001 certificate and all of CZVZ products have CE,FCC certificate. CZVZ insists on the belief "growing up with customers and employees" and ready to make more contribution to national defense and public security. 5. Our Services (1) We generally offer one year warranty. Extended warranty is also available.  (2) Life-long technical support. Professional technical team and salesperson help you with troubleshooting procedures any time when needed. (3) We accept OEM. (4) We offer customized product.
