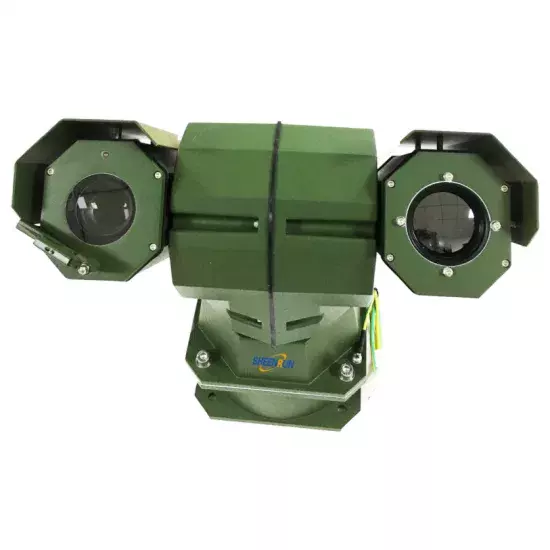

Vehicle Mounting Dual Sensor Day Vision and Thermal Camera

Model NO. HVLV330SIR5 Sensor CMOS Kind Electric Focusing Lens or Auto Focusing Lens Certification CE, FCC, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition, Auto BLC, Multi Sensor Effective Distance ≧30m Remote Control With Remote Control Protection Grade IP66 Daylight Distance 1000m Thermal Detect Distance for Human 1200m Thermal Detect Distance for Vehicle 3300m CCD Camera Pixel 2.1MP Specification CE, FFC Trademark SHEENRUN Origin Shandong Jinan Production Capacity 1000

Product Description

Product features                                                                *Integrating infrared thermal imaging, visible light camera and pantilt controlling system, realizing day and night omni-directional monitoring  * Adopting thermal imaging technology, not limited by light source, imaging clearly * Day and night 2 megapixel low illuminance color camera, realizing details observing  * High intelligence, simple to operate, easy to use and maintain  *3D locating function, realizing frame selection magnifying and clicking to center, reducing operating difficulty, enhancing device usability  *Universal variable speed pan-tilt, realizing omnidirectional no blind angle monitoring and high precision locating Main Use                                                               Frontier and coast defense,Border defense,Oilfields,Railway,Airports,Harbors, Armored monitoring,large areas real-time monitoring day & night. Technical Indicators                                                      Monitoring distanceVisible light1000mThermal imagingobject human (1.8m×0.5m) Vehicle (2.3 m×2.3 m) Detection distance 1200m 3300m Recognition distance 600m 820m Identification distance 150m 400m Camera and video codingSensor type1/2.8" Progressive Scan CMOSTotal pixels2.1 MPLens focal lengthf=4.5~135mm,30* optical zoomingCamera controlAuto gain control, auto white balance,  auto backlight compensation, supporting manual and  auto day and night mode switchCoding formatH.264Video resolution1920x1080Video frame rate1~30F/SImage adjustmentbrightness, contrast ratio, saturationThermal imaging cameraDetector typeuncooled microbolometer focal plane array(α-si)Effective pixels384×288Spectral range8~14μmTemp sensitivity≤[email protected],300KFocal length50mmFOV11.0°×8.2°Frame rate25HzLens controlElectric focusing(auto focusing optional)Image processingDDE, pseudo colorPan-tiltAngleHorizontal 360°continuous rotation,pitching -90°~+90°speedHorizontal 0°~50°/s,pitching 0°~50°/sPreset bitsMax 128Cruising6cruising paths,20 bits each pathAnti-lightningTVS 6000VInterfacePower supply interfaceDC12VNetwork interface1×10Base-T/100Base-TX,RJ45Other interfacesRS485,BNC video outputEnvironment indicatorsWorking temp-25ºC~+55ºCStorage temp-40ºC~+65ºCRelative humidity10%~90%Anti-salt fogcontinuous spraying for 48 hours at PH 6.5-7.2,surface with no changesProtection gradeIP66Power supplyWhole machine power supplyDC12V,appendant 220VAC~12VDC/3A water proof power supplyWhole machine power consumption≤30WPhysical featuresWhole machine weight7.5kgInstallation methodOutdoor pedestal mounting Our Services(1)  We generally offer one year warranty. Extended warranty is also available. (2) Life-long technical support. Professional technical team and salesperson help you with troubleshooting procedures any time when needed.(3) We accept OEM.(4) We offer customized product.   Company IntroductionChina CZVZ Optics & Electronics Co., Ltd, which was founded in 2004, is a leading night vision equipment and rugged information equipment supplier, CZVZ adheres to independent innovation, developed the world's first laser night vision camera and the first uncooled continuous zoom infrared thermal imaging camera with independent intellectual property rights, its synchronous zoom laser night vision technology and continuous zoom thermal imaging technology have reached international advanced standard level, possess the world's largest market share in laser night vision market.
