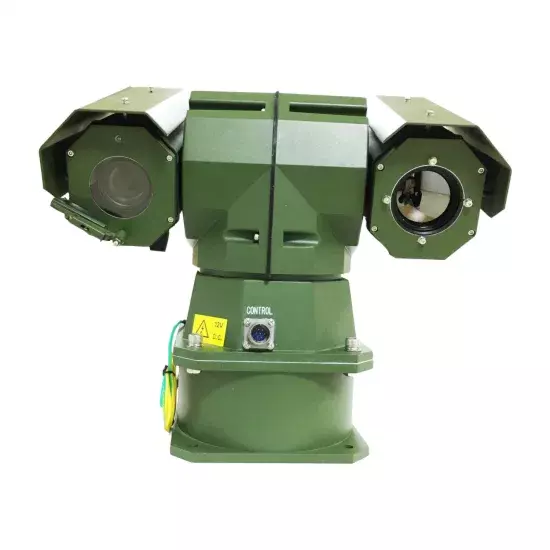

Vehicle Mounted Day and Night Dual Vision Thermal PTZ IP Camera

Model NO. HLV330HTIR5 Sensor CMOS and IR Imaging HDMI Format 1080P & 480p Horizontal Resolution 480tvl Kind Autofocus Lens Certification CE, FCC, ISO9001: 2000 Effective Distance 3.8 Km Sensor Size 1/2.8 " Remote Control With Remote Control Thermal Detection 1350m for Human; 3800m for Car Thermal Recognition 338m for Human; 950m for Car Thermal Identification 169m for Human; 475m for Car HD Camera Sensor 1/2.8" Progressive Scan CMOS HD Camera Pixels 2.1 M HD Camera Lens F=4.5~135mm,30* Optical Zooming Thermal Camera Sensor Uncooled Microbolometer Focal Plane Array(Vox) Thermal Sensor Pixels 384×288 Thermal Lens 50mm PTZ 360°continuous Rotation, Pitching -90°~ Transport Package Wooden Case Specification 400mm× 400mm× 500mm Trademark CZVZ Origin China HS Code 8525801190 Production Capacity 30/Month

Product Description

Product features1. Integrating infrared thermal imaging, visible light camera and pan-tilt controlling system, realizing day and night omni-directional monitoring2. Adopting thermal imaging technology, not limited by light source, imaging clearly3. Day and night 2 megapixel low illuminance color camera, realizing details observing4. High intelligence, simple to operate, easy to use and maintain5. 3D locating function, realizing frame selection magnifying and clicking to center, reducing operating difficulty, enhancing device usability6. Universal variable speed pan-tilt, realizing omni-directional no blind angle monitoring and high precision locating  Specification Monitoring distanceVisible light1000mThermal imagingobjectHuman(1.8m×0.5m)Vehicle(2.3m×2.3m)Detection distance1400m4000mRecognition distance350m1000mIdentification distance170m500mCamera and video codingSensor type1/2.8" Progressive Scan CMOSTotal pixels2.1 MPLens focal lengthf=4.5~135mm,30* optical zoomingCamera controlAuto gain control, auto white balance, auto backlight compensation, supporting manual and auto day and night mode switchCoding formatH.264/H.265Video resolution1080P, dual stream supportedVideo frame rate50Hz:25fps(1920×1080)60Hz:30fps(1920×1080)TitleTitle, date, timeImage adjustmentbrightness, contrast ratio, saturationThermal imaging cameraDetector typeuncooled microbolometer focal plane array(Vox)Effective pixels384×288/640×512Spectral range8~14μmTemp sensitivity≤[email protected],300KFocal length50mmFOV8.78°×6.59°/12.4°×9.3°Frame rate25HzLens controlElectric focusing (auto focusing optional)Image processingDDE, pseudo colorPan-tiltAngleHorizontal 360°continuous rotation, pitching -90°~+90°speedHorizontal 0°~80°/s, pitching 0°~60°/sPreset bitsMax 256Cruising6cruising paths,20 bits each pathAnti-lightningTVS 6000VInterfacePower supply interfaceDC12VNetwork interface1×10Base-T/100Base-TX,RJ45Other interfacesRS485,BNC video outputEnvironment indicatorsWorking temp-25ºC~+55ºCStorage temp-40ºC~+65ºCProtection gradeIP66Power supplyWhole machine power supplyDC12V, appendant 220VAC~12VDC/3A water proof power supplyWhole machine power consumption≤30WPhysical featuresWhole machine weight≤8 kgSize218mm×374mm×243mm(L×W×H)Installation methodOutdoor pedestal mounting
