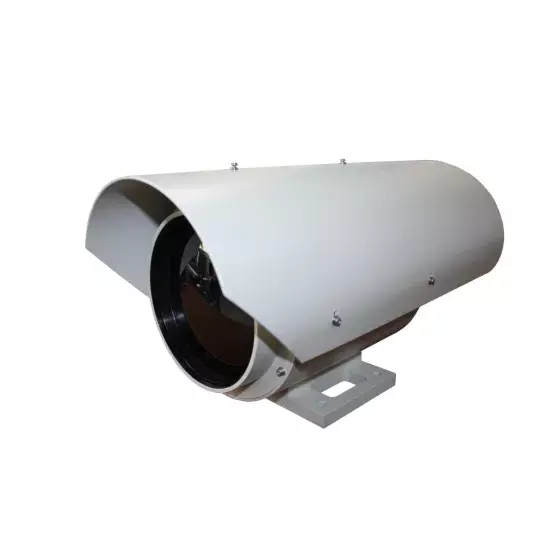

Vandal Proof Outdoor Surveillance Thermal Imaging IP Camera for Sale

Model NO. SHR-TIR63R Sensor Uncooled Fpa (Vox) HDMI Format 480P Horizontal Resolution 384×288 Kind Autofocus Lens Certification CE, FCC, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition, Vandal-proof Effective Distance 1 Km Sensor Size 1/3 inch Remote Control With Remote Control Detect Distance 1440m for Human; 3960 for Car Recognize Distance 360m for Human; 990m for Car Identify Distance 180m for Human; 480m for Car Focal Length 20~60mm,3X Optical Zoom Pixel 324×256,Pixel 25µm Spectrum 8~14μm Netd ≤50mk Weight ≤1.8kg Size 251mm×115mm×117mm International Protection IP66 Transport Package Carton/Wooden Box Specification 223mm× 206mm× 82mm Trademark CZVZ Origin Shandong Province, China Production Capacity 200 Units / Month

Packaging & Delivery

Package Size 35.00cm * 26.00cm * 25.00cm Package Gross Weight 8.000kg

Product Description

Product Features

1.      324×256 High resolution uncooled microbolometer infrared focal plane arrays,vox

2.      25µm super small pixel,image quality fine,observe small target more clearly,further detection distance

3.      High sensitivity, NETD can reach 50mk and frame at 25Hz

4.      Word originate 20~60mm continuous zooming,can search in a wide range as well as identify target far,don't lost target

5.      Image noise reduction processing,add DDE function; output hot white/ hot black/pseudo color

6.      Low power consumption, quick start-up, stable performance, image clearly with high uniformity

7.      RS 485 interface control, analog video signal output

8.      Simple operation,easy to use and maintain

9.      Precision casting aluminium alloy shell,sealed and waterproof,nitrogen inside, anti-harsh environment,overlength working lifetime

Specification Monitoring distanceObjectPeople(1.8m×0.5m)Vehicle(2.3m×2.3m)Detect distance1440m3960mRecognize distance360m990mIdentification distance180m480mThermal lensFocal length20~60mm,3x optical zoomFOV7.6°×6.1°~22.6°×18.2°F1.0Lens controlElectronic zoom/focus(auto focus is optional)DetectorDetector typeUncooled FPA detector(vox)Pixel324×256,pixel 25µmSpectrum8~14μmNETD≤50mKFrame25HzNUCAuto/Manual/Background correctionImage processDDE,pseudo colorVideo outputPALInterfacePower supply interfaceDC12VOther interfaceRS485,BNC Video outputEnvironmental indicatorsWorking temperature-25ºC~+55ºCStorage temperature-40ºC~+65ºCInternational protectionIP66Anti-vibrationGB/T 4857.10-2005Anti-impactGB/T 15412-94 Free drop test methodAnti-thunder2000VPowerPower supplyDC12V(attached AC220V/DC12Vpower adapter)Power consumption≤8WPhysical featuresWeight≤1.8KgSize251mm×115mm×117mm(L×W×H,contain sunshield cover)InstallationOutdoor base install
