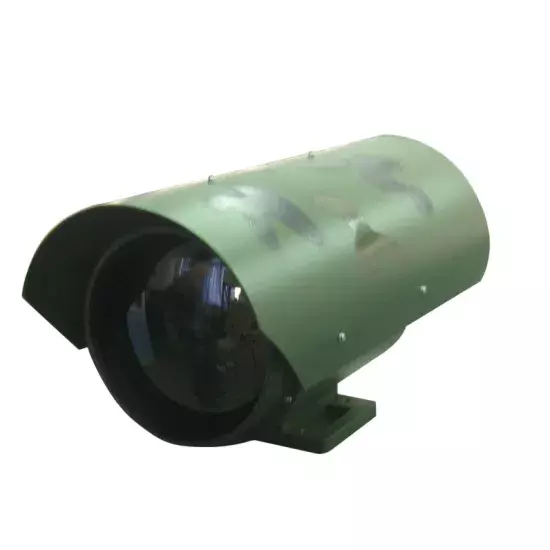

Uncooled Thermal Surveillance Network Camera for Security Project with Long Range Night Vision

Model NO. SHR-TIR104R Sensor Uncooled Fpa Detector (Vox) HDMI Format 480P Horizontal Resolution 384×288 Kind Autofocus Lens Certification CE, FCC, RoHS, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition, Vandal-proof Effective Distance 1.5 Km Sensor Size 1/3 inch Remote Control With Remote Control Detect Distance 2700m for Human, 7600m for Vehicle Recognize Distance 675m for Human, 1900m for Car Identify Distance 337m for Human, 950m for Car Thermal Lens 25~100mm F F 1.0 Detector Uncooled Fpa Detector(Vox) Pixel 384X288 Spectrum 8~14μm Netd ≤50mk(at)F1.0, 300K Frame 25Hz Transport Package Carton Box Specification 223mm× 206mm× 82mm Trademark CZVZ Origin Shandong Province, China Production Capacity 200 Units / Month

Packaging & Delivery

Package Size 60.00cm * 50.00cm * 40.00cm Package Gross Weight 20.000kg

Product Description

Product Features Adopt continuous zooming thermal imaging technology, imaging clear, further detection distance, not only largescale search but also small scale observation; 384×288 High resolution uncooled microbolometer infrared focal plane arrays, vox, high sensitivity; Fine quality image, observe small target more clearly, further detection distance; Multi-position intelligent automatic focusing technology, rapid focusing can be achieved through a variety of focusing modes and triggering modes; Manually adjust brightness/contrast, digital zoom, auto/manual/background correction, ,better imaging; Image noise reduction processing, add DDE function; output hot white/ hot black/pseudo color; Digital video output, easy access to existing security monitoring platform; Precision casting aluminum alloy shell, sealed and waterproof, nitrogen inside, anti-harsh environment, overlength working lifetime.  SPECIFICATION   Monitoring distanceObjectPeople(1.8m×0.5m)Vehicle(2.3m×2.3m)Detect distance2400m6600mRecognize distance600m1650mIdentification distance300m800mThermal lensFocal length25~100mm,4x optical zoomFOV4.6°×3.7°~18.2°×14.6°F1.0Lens controlElectronic zoom/focus(auto focus is optional)DetectorDetector typeUncooled FPA detector(vox)Pixel324×256,pixel 25µmSpectrum8~14μmNETD≤50mKFrame25HzNUCAuto/Manual/Background correctionImage processDDE,pseudo colorVideo outputPALInterfacePower supply interfaceDC12VOther interfaceRS485,BNC Video outputEnvironmental indicatorsWorking temperature-25ºC~+55ºCStorage temperature-40ºC~+65ºCInternational protectionIP66Anti-vibrationGB/T 4857.10-2005Anti-impactGB/T 15412-94 Free drop test methodAnti-thunder2000VPowerPower supplyDC12V(attached AC220V/DC12V power adapter)Power consumption≤8WPhysical featuresWeight≤4KgSize390mm×174mm×173mm(L×W×H,contain sunshield cover)InstallationOutdoor base install

Certification

(1)Technical advancement certificate

Invention patent of continuous zooming for uncooled infrared thermal imaging camera(Patent number:ZL 200810015710.6) Invention patent of large times zoom for infrared continuous zooming lens of uncooled infrared thermal imaging camera(Patent number:ZL 200910014323.5) Invention patent of auto focus method and device for thermal camera (Patent number:ZL200910019161.4) Invention patent of anti-glare damage thermal camera and its method (Patent number:ZL201210362592.2) Invention patent of a infrared thermal system blind-pixel substitution method(Patent number:ZL201310182838.2) Invention patent of super times zoom for infrared continuous zooming lens of uncooled infrared thermal imaging camera(Patent number:ZL 201410094484.0) Shandong Province Patent Technology Award Uncooled large diameter zoom infrared thermal imaging camera State Key New Products(2011TJC60003)

(2)Quality reliability certificate

ISO9001:2008 Certificate of quality management system; Inspection report from Security and Police Electronic Product Quality Testing Center of the Ministry of Public Security; China Saibao (Shandong) Laboratory Test Report; CE, FCC certificate.
