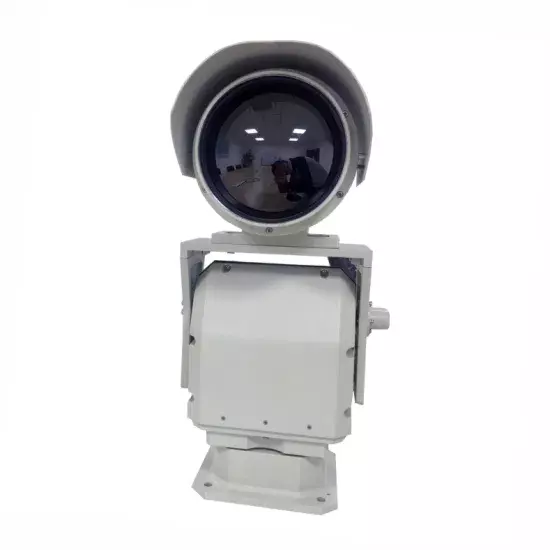

Uncooled Infrared IR PTZ Night Vision Thermal Camera

Model NO. SHR-TIR104R Sensor Uncooled Sensor HDMI Format 480P Horizontal Resolution 480tvl Kind Manual Focus Lens Certification CE, FCC, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition Effective Distance 3km Sensor Size 1/3 inch Remote Control With Remote Control Transport Package Wooden Case/Carton Specification CE, FCC Trademark SHEENRUN Origin China Production Capacity 200 PCS/Month

Product Description

Long Range Infrared Thermal Imaging CameraMain Features  1. 384x288 resolution, uncooled Vox detector. 100mm lens 2. can obtain clear details, and realize longer distance monitoring. 3. NETD 50mk. 4. First developed 25~100mm 4x continuous optical zooming, can realize large-scale search and also identify distant target.  5. Adopts Image Denoising tech, DDE tech, output black hot/white hot/palette colors.  6. Low power consumption, quick start, steady performance, clear and smooth images. 7. RS485, analog signal. 8. Easy to operate and maintain. 9. High aluminum alloy shell with nitrogen inside, can work under harsh environment 24/7.     Technical IndicatorsEffecting DistanceObjectsPeople (1.8mx0.5m)Vehicle (2.3 mx2.3 m)Detect distance2400m6600mRecognize distance600m1650mIdentification distance300m800mIR LensFocal length25~100mm 4x continuous zoomingFOV4.6°x3.7°~18.2°x14.6°   MRAD0.25~1mradLens controlElectric zoom, electronic focus (auto focus is optional)DetectorDetector typeUncooled focal plane infrared Vox detectorResolution320x256Spectrum range8~14μmNETD≤[email protected],300KNon-uniformity correctionManual/auto/background correctionImage processDDE, palette colorsVideo outputPAL/NTSCInterfacePower supplyDC12VOther interfaceRS485, BNC video outputEnvironmental indicatorsWorking temperature-25ºC~+55ºCStorage temperature-40ºC~+65ºCInternational protectionIP66Anti-vibration10~55Hz, 0.75mmAnti-impact150m/s², 11msAnti-saltfogunder PH6.5~7.2, continuous spraying fog for 48 hoursPower supplyPower supply for whole deviceDC12VTotal power consumption≤8WOthersWeight≤4KgSize390mm×174mm×173mm(L×W×H, including shield)
