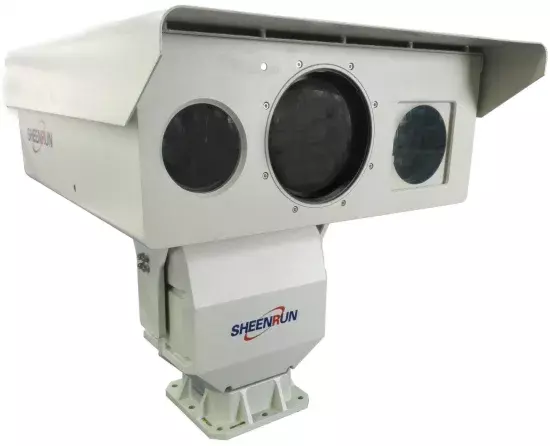

Ultra-Long Range Thermal Imaging Infrared Night Vision Cameras

Model NO. SHR-WHLV3022ADIR185A Sensor CMOS HDMI Format 1080P Kind Autofocus Lens Certification CE, FCC, CCC, RoHS, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition, Vandal-proof, Auto BLC Sensor Size 1/3 inch Remote Control With Remote Control Day Vision 8000m Night Vision 3000m Thermal Detection 4.8km( Human), 13km(Vehicle) Pan Tilt 360 Degrees Horizontal Rotation Power Supply DC30V Weight 65kg Thermal Resolution 384X28(640X512) Transport Package Carton Case Specification thermal imaging camera Trademark CZVZ Origin Jinan Production Capacity 50sets

Product Description

SHR-WHLV3022ADIR185A HD three sensor thermal camera Product Features:1. Three spectral imaging design, with advantage of visible light imaging clearly, thermal imaging camera detecting far and laser night vision range large2. Adopting continuous zooming thermal imaging technology, imaging clearly, can search in large area and recognize objectives in long distance3. Infrared detector with high temp sensitivity, with min temp resolution of 50mK4. Synchronous zooming laser illuminating system, long illuminating distance, large illuminating range, realizing monitoring in 0Lux complete black5. Day and night low illuminance 2 megapixels color to black camera, day and night continuous monitoring6. MCIC multi-tube core fusion mixed mode light homogenization technology, no speckle and dark ring, high edge definition7. Supporting fog penetration, backlight compensation, multistage wide dynamic8. Optional auto focusing function, realizing multiple focusing mode and triggering mode9. Optional thermal imaging camera presetting function, remembering FOV of each preset bit, enhancing working efficiency10. 3D locating function, can realize frame selection magnifying function and clicking to center function, reducing operating difficulty, enhancing device usability11. External MMA fine adjustment mechanism, no need to disassemble to complete laser alignment adjustment12.Professionally designed shell, artistic, light, firm, anti-high temp, anti-corrosion, water proof, anti-acid rain   SHR-WHLV3022ADIR185AMonitoring distanceobjecthuman(1.8m×0.5m)Vehicle(2.3m×2.3m)Detection distance4860m13680mRecognition distance1215m3420mIdentification distance607m1710mVisible monitoring distanceDay vision 8000m, Night vision 3000mHD day cameraFocal lens20~750mmFOV0.5°~17.8°IrisAuto irisFocusManual focus/auto focusHD cameraSensor1/1.8"Progressive Scan CMOSCamera controlAutomatic gain control, automatic white balance, support manual and automatic day and night mode conversionFog penetrationON/OFF (optional)Back focus fine tuning technologySupport for remote debuggingNoise reduction function3D Digital noise reductionCodeH.265/H.264/MJPEGVideo resolution1080p, supporting three steamVideo bit rate32Kbps~16MbpsVideo frame rate50Hz:25fps(1920×1080),25fps (1280×720)60Hz:30fps(1920×1080),30fps (1280×720)Laser illuminatorIllumination lens100x zooming laser telephoto lensPower15WWave length810nmillumination angle0.3°~30°continuous changelaser switchAutomatic/manual controlThermal lensFocal lens36~180mm,5x optical zoomFov2.44°x1.83°~12.18°x9.15°F valueF1.0~F1.2Camera controlElectric doubling, electric focusing, automatic focusingThermal detectorDetector typeuncooled microbolometer focal plane array(VOX)Resolution384x288Spectral range8~14μmNETD≤[email protected],300KFrame rate25HzImage processingDDE, pseudo colorPan tiltLoad capacity50kg(top load)AnglePan 360°continuous rotation, Tilt: -45°~+45°speedPan 0.01°~20°/s, Tilt 0.01°~10°/sPreset255Preset accuracy±0.1°Automatic cruise2 paths,64 bits each pathInterfacePower supplyDC30VNetwork 1×10Base-T/100Base-TX, RJ45Environment indicatorWorking temp-25ºC~+55ºCStorage temp-40ºC~+65ºCProtection gradeIP66PowerPower supplyWide input AC90 ~ 305V to DC30V waterproof power supplyWhole power consumption≤160WPhysical featuresDimensions712×542×603(L×W×H)mmWeight≤65kgInstallationoutdoor base installation
