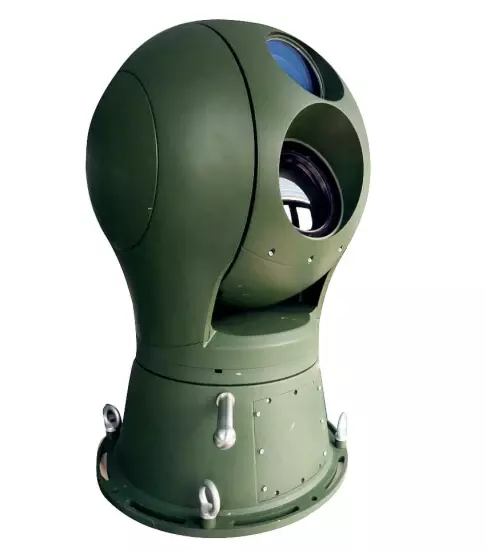

Uav/Vessel Medium/Big Thermal Camera with Gyro

Model NO. UAV thermal camera Sensor CMOS HDMI Format 1080I Horizontal Resolution 480tvl Kind Manual Focus Lens Certification CE, FCC, CCC, RoHS, EMI/EMC, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition, Mini Size, Vandal-proof, Auto BLC Effective Distance 2000m Sensor Size 1/3 inch Remote Control With Remote Control Transport Package Wooden Case/Carton Specification IP66 Trademark CZVZ Origin Jinan, Shandong, China Production Capacity 200

Product Description

Product Features Integrate infrared detection system, video recording system, high precision transmission system and gyro image stabilizing system High precision two axis gyro stabilization technology  Target tracking CCTV camera wavelength extend infrared enhancement technology high performance parallel process ability, real-time functional ARM+FPGA hardware process platform Modularization and parallelization real-time embedded system Real-time video OSD High intensity, high precision, super-low resistance design  Spherical design with strong wind resistance, all-metal shell Special reinforced design, suitable for UAV, aircraft, vehicle and vessel low power consumption and heat, stable performance  DistanceThermal camera Human(1.8m×0.5m)Vehicle(2.3 m×2.3 m)detection700m2000mrecognition170m500midentification90m250mVisible                1000mRotation rangeHorizontal360° horizontal rotationVertical+20° ~ -90°Rotation speedOrientation and vertical angle speed≥60°/sOrientation and vertical angle accelerated speed≥60°/s2Precisionstabilization precision≤1mrad(RMS)Tracking precision≤ 2% FOV(RMS)optical axis overlap ratio≤2 pixelVisible CCTV cameraSensor type1/4″EXview HAD CCDValid pixel440000 pixelHorizontal resolution530TVL(color), 570TVL(black&white)Focal length3.4~122.4 mm, 36X optical zoomIrisF1.6~F4.5FOV57.8°(wide)~1.7°(tele)Focusauto/manual/zoom triggerLowest illumination0.2Lux/F1.4(color); 0.001Lux/F1.4(black&white)White balanceAuto/auto tracking/indoor/outdoor/trigger/manualSNR≥50dbThermal cameraDetectoruncooled microbolometer focal array (α-Si)Valid pixel640×512Spectrum range8~14μmNETD≤[email protected],300KFocal length25mmFOV24.6×19.8°IFOV0.68mradLens controlElectric focusImage process2× digital zoom, pseudo colorOSDreal-time video overlay current date, time, longitude, latitude, altitude, speed, pod direction pitch angle info, with function of display and blanking overlayed characterInterfacePower supply interfaceDC(direct current)OthersRS422, 2×BNC video outputEnvironmental indicatorsOperation temperature-20ºC~+55ºCStorage temperature-40ºC~+65ºCProtection gradeIP65Anti-vibration10~150Hz, 2g accelerated speed, p3 axial direction sweep frequency 7.5hoursAnti-impact150m/s², 11msAnti-saltfog  PH 6.5~7.2, spray fog for 48hoursPower supplyOperation voltageDC18V~36VWhole consumptionPeek consumption≤70W;continuous consumption≤55WOthersWeight≤6.5KgSize200×200×325mmInstallation waylifting or base installation
