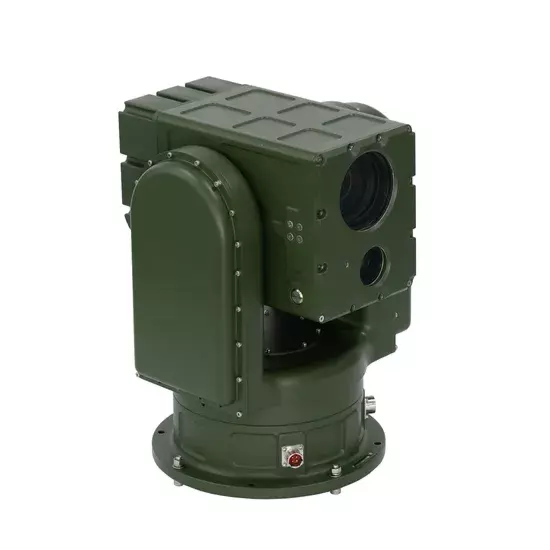

U Shape Dual Sensor IP66 Grade Long Range 10km Thermal Imaging PTZ Camera for Monitoring

Sensor CMOS HDMI Format 1080P Kind Autofocus Lens Certification CE, FCC, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition, Vandal-proof, Auto BLC Effective Distance 9000m Sensor Size 1/1.8" Remote Control With Remote Control Monitoring Distance 16000m Lens 20~200mm,10X Zoom Pixel 2.1 Mega Pixel IP IP66 Certificate CE FCC Category Dual Sensor Camera Weight 25kg Transport Package Standard Exporting Package Specification 590× 260× 490mm Trademark SHEENRUN Origin China Production Capacity 100 Units / Month

Packaging & Delivery

Package Size 60.00cm * 40.00cm * 50.00cm Package Gross Weight 30.000kg

Product Description

1. Product features

1) Adopting thermal imaging technology, imaging clearly, can search in large area and recognize objectives in long distance2) 640× 512 high resolution infrared detector with NETD≤ 50mK3) Day and night 2 megapixels low illuminance color camera, realizing day and night continuous monitoring4) Optional auto focusing function, realizing multiple focusing mode and triggering mode5) Optional thermal imaging camera presetting function, remembering FOV of each preset bit, enhancing working efficiency6) 3D locating function, can realize frame selection magnifying function and clicking to center function, reducing operating difficulty, enhancing device usability7) High reliability aluminum alloy electro-optical pantilt, reinforcement design, strong ability of anti-wind, anti-salt fog, low and high temperature resistance etc. 2. Technical Specifications

Model UT550HLV4020HTIR210R Monitoring distance Visible camera 9000m Object Human Vehicle Thermal camera 5600m 16000m 1400m 4000m 780m 2000m Thermal detector Detector Uncooled microbolometer focal plane array(Vox) Effective pixel 640×512 Spectral range 8~ 14μm NETD ≤50mK F1.0,300K Frame rate 25Hz Image process DDE, pseudo color Thermal lens Focal length 20~200mm,10x zoom FOV 3.1°×2.5°~30.4°×24.6° F value F1.0~ F1.2 Lens control E-zoom, e-focus(auto focus optional) IFOV 0.09~0.85mrad HD Camera Sensor type 1/1.8'' Progressive Scan CMOS Coding format H.264/MJPEG/MPEG4 Video resolution 1080P,CIF,supporting three stream Video bit rate 32Kbps~ 16Mbps Video frame rate 1~ 25F/S (50Hz), 1~ 30F/S (60Hz) HD lens Focal length 16.7~1000mm FOV 25°~ 0.45° Other Defog, Auto focus Support for optional Pan-tilt load 40kg Angle Pan: 0°~ 360°;  Tilt: -45°~ +45° speed Pan: 0.01°~ 45°/s;  Tilt: 0.01°~ 30°/s Preset 200 Preset accuracy ±0.1°(±0.05° optional) Auto cruise 8 paths, 10 presets each path Auto scan 1 path   Anti-wind Grade 12 Interface Power supply DC30V Network interface 1x10Base-T/100Base-TX,RJ45 Video interface RS485/RS422, BNC video output Environment indicators  temp. operation -25ºC~ +55ºC (-40ºC~ +65ºC optional), Storage -40ºC~ +65ºC Protection grade IP66 Power supply power supply Wide range power input AC90~305V to output DC30V/10A,anti-water power supply Consumption ≤180W         3. Company Intruduction

CZVZ Optics & Electronics Co., Ltd, which was founded in 2004, is one of the largest manufacturer of long range thermal imaging camera and laser night vision camera, as well as a supporting construction company of Shandong Province Academician Workstation and Night Vision Surveillance Engineering Technology Research Center. CZVZ adheres to independent innovation,  developed the world's first laser night vision camera and the first uncooled continuous zoom infrared thermal imaging camera  withindependent intellectual property rights, its synchronous zoom laser night vision technology and continuous zoom thermal imaging  technology have reached international advanced standard level, possess the world's largest market share in laser night vision market.

  4. Our Service

(1)  We generally offer one year warranty.  Extended warranty is also available.

(2)  We accept OEM.

(3) Life-long technical support. Professional technical team and salesperson help you with troubleshooting via Internet and Phone any time.

(4) Door-to-door service if necessary.

(5) Outside color of the produt  can be customized. 5.  FAQ

(1)  Is your company a manufacturer?      Yes. CZVZ is a manufacturer of  thermal camera and laser camera since 2004.

(2) What is the price?     Please kindly tell us your required specificatons or application details such as monitoring/ detection distance, then we will offer suitable      cameras with quotation.(3) What is your warranty?      We generally offer one year warranty. Extended warranty is also available.

(4) Does your company offer customized product?       Yes.

(5) Does your company accept OEM.      Yes.
