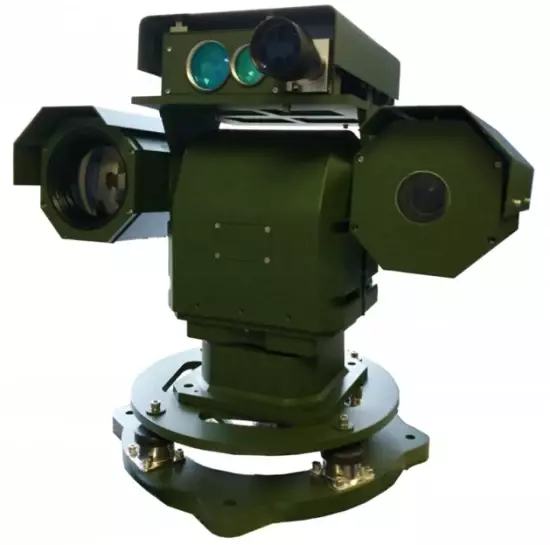

Top Mounted Multisensor Night Vision Vehicle Camera with Pan Tilt

Model NO. SHR-WHLV4020HTIR210R-LRF10 Sensor CMOS HDMI Format 1080P Horizontal Resolution >800tvl Kind Autofocus Lens Certification CE, FCC, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition, Vandal-proof Effective Distance ≧30m Sensor Size 1/3 inch Remote Control With Remote Control Laser Illuminator Power 20W Illuminator Wave Length 810nm Visible Light Camera Lens 16.7-1000mm Video Code Format H.264/H.265/Mjpeg Pantilt Preset 255 Pantilt Cruising Function 2 Paths, 64 Presets Each Path Protection Grade IP66 Working Temperature -25degree~55degree Power Interface DC30V Transport Package Carton/Wooden Package Specification 240mmx374mmx243mm Trademark CZVZ Origin Shandong, China Production Capacity 1000set/Month

Packaging & Delivery

Package Size 70.00cm * 50.00cm * 80.00cm Package Gross Weight 50.000kg

Product Description

Top Mounted Multisensor Night Vision Vehicle Camera with Pan Tilt   Features: > Three spectral imaging design, with advantage of visible light imaging clearly, thermal imaging camera detecting far and laser night vision range large  > Adopting continuous zooming thermal imaging technology, imaging clearly, can search in large area and recognize objectives in long distance > Infrared detector with high temp sensitivity, with min temp. resolution of 50mK > Synchronous zooming laser illuminating system, long illuminating distance, large illuminating range, realizing monitoring in 0Lux complete black > Day and night low illuminance 2 megapixels color to black camera, day and night continuous monitoring > MCIC multi-tube core fusion mixed mode light homogenization technology, no speckle and dark ring, high edge definition > Supporting fog penetration, backlight compensation, multistage wide dynamic > Optional auto focusing function, realizing multiple focusing mode and triggering mode > Optional thermal imaging camera presetting function, remembering FOV of each preset bit, enhancing work efficiency > 3D locating function, can realize frame selection magnifying function and clicking to center function, reducing operating difficulty, enhancing devices usability > External MMA fine adjustment mechanism, no need to disassemble to complete laser aligment adjustment > Professionally designed shell, artistic, light, firm, anti-high temp., anti-corrosion, water proof, anti-acid rain  Technical Data:                      Model                                                   SHR-WHLV4020HTIR210R-LRF10 Monitoring distance Visible light Day vision 8-10km, night vision 4-5km Thermal camera Detection:  human: 5600mm        vehicle: 16000m Recognition: human: 1400m        vehicle: 4000m Identification: human: 700m          vehicle: 2000m Laser illuminator Power 15W Wave length 810nm Power switch Auto/Manual control Light homogenization MCIC light homogenization technology Heat dissipation Array air-cooled conduction Laser lens Focal length 60x zoom laser telephoto lens Illuminating angle  0.3°~30° continuous change Coating Multi-layer near-infrared anti-reflection coating Preset Precise potentiometer voltage feedback Zoom mode 3CAM cam-gearing mode, high coaxiality Visible light camera   Sensor 1/1.8" Progressive Scan CMOS Color mode ICR double filter, day and night switch Shutter speed Auto and manual adjustment Fog penetrating  ON/OFF WDR 120dB BLC supported Back focusfine adjustment Supporting, can remotely debug Noise reduction 3D digital noise reduction Title overlay Logo, date, time Image adjustment Brightness, contrast,saturation, sharpness etc Camera control Auto gain control, auto white balance, auto backlight compensation, supporting manual and auto day and night mode switch Coded format H.264/H.265/MJEPG Video resolution 1080P,supporting three stream Bitrate 32Kbps-16Mbps Frame rate 50Hz:25f/s(1920x1080), 25f/s(1280x720)  60Hz:30f/s(1920x1080),30f/s(1280x720) Visible light camera lens Focal length 16.7~1000nm(2x extender optional) FOV 0.45°~24.9° Auto iris DC drive Fog penetrating Supporting Auto focus Supporting Wiper Supporting Infrared lens Focal length 20-200mm FOV 3.1°X2.3°~30.4°X23.1° Spatial resolution 0.09~0.85mrad Lens control Electric zoom, electric focus, auto focus Thermal detector Detector type Uncooled microbolometer focal plane array Effective pixel 640x512, 17μm Spectrum range 8~14μm NETD ≤[email protected], 300K Frame frequency 25Hz FFC Auto/manual/background correction Image process DDE, pseudo color Video output PAL/NTSC Laser range finder Max range 10km(in the mode of mid-latitudes atmosphere, T=20ºC, relative humidity 70%, 1 standard atmospheric pressure, horizontal visibility >23.5km) Min range 100m Precision ±1m Repetition frequency 0.2Hz GPS Antenna Built in Sensibility -165dBm Precision 5m Location speed Under open sky conditions; hot start 1s; warm start 35s; cold start 38s; recapture<1s Height <18,000m Speed <515m/s Acceleration <4g Pantilt Angle Pan 360° continuous, tilt -45° to +45° Speed Pan 0.01°-12°/s, tilt 0.01°-8°/s Presets 255 Cruising function 2 paths, 64 presets each path Auto line scan 1 path Preset precision ±0.1ºC Size 326mmx206mmx380mm(LxWxH) Anti-lightning Power supply 4000V, video signal 2000V Load 50kg(top mounted) Interface Network interface 1x10Base-T/100Base-TX,RJ45 Power supply interface DC 30V  Environmental indicators Working temperature -25ºC~÷55ºC Storage temperature -40ºC ~÷65ºC Protection level IP66 Anti-salt fog GB/T2423.17-2008 Power supply Power DC 30V, equipped with wide range, waterproof power adapter Consumption ≤180W Application:     High altitude monitoring system                                  Railway monitoring system                                  Harbor monitoring system         Package&Shipment:   Wooden / carton package means will be supplied to ensure the transport safety.   FAQ: 1. Q: Is your company manufacturer?           Yes, CZVZ is the thermal camera and laser camera manufacturer since year 2004. 2. Q: Can you supply OEM service?          Yes, CZVZ can do OEM products as customer's requirement. 3. Q: What is the product's lead time?          It is confirmed by the order quantity. 4. Q: What is the warranty?          It is generally 1 year warranty, extend warranty is available. 5. Q: How will the product be shipped?          For sample order, it will be shipped by DHL, FEDEX, UPS or TNT.          For bulk order, we can arrange the shipment as customer requirement. 6. Q: How about your after sale service?          Any problem about our product, you can contact with us at any time. Our team will supply technical service for you. Company Introduction: CZVZ company, which was founded in year 2004, is one of the largest manufaturer of long range thermal imaging camera and laser night vision camera, as well as a relying Academician serveillance Engineering Technology Research Center in China. CZVZ adheres to independent innovation, which developed the world's first laser night vision camera,  and the continuous zoom infrared thermal imaging technology has reached the international advanced standard level.  The laser night vision and infrared thermal imaging products have been widely used in nation defense, safe cities, railways, highways, forest fire, oil and other fields, achieved all-weather surveillance, provided technical support for the maintenance of national security and socal stability. The company photo:  The exhibition:
