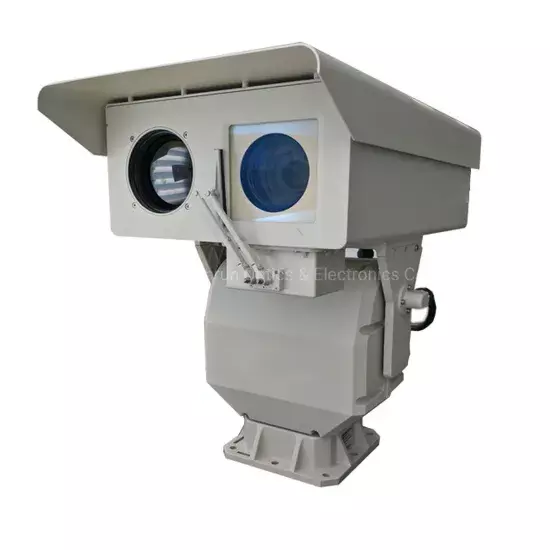

Thermal and Day Dual Video Camera with 150mm Zoom Lens

Model NO. SHR-HLVHVIR155R Sensor CMOS HDMI Format 1080P Horizontal Resolution 540tvl Kind Autofocus Lens Certification CE, FCC, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition Effective Distance ≧30m Sensor Size 1/3 inch Remote Control With Remote Control Weight 21 Kg Transport Package Carton Specification 440mm× 213mm× 217mm Trademark CZVZ Origin Shandong Province, China Production Capacity 200 Units / Month

Product Description

1 Product Features  1. Adopting continuous zooming thermal imaging technology, imaging clearly, can search in large area and recognize objectives in long distance2. Infrared detector with high temp sensitivity, with min temp resolution of 50mK3. Day and night 2 megapixels low illuminance color camera, realizing day and night continuous monitoring4. Optional auto focusing function, realizing multiple focusing mode and triggering mode5. Optional thermal imaging camera presetting function, remembering FOV of each preset bit, enhancing working efficiency6. 3D locating function, can realize frame selection magnifying function and clicking to center function, reducing operating difficulty, enhancing device usability7. Professionally designed shell, artistic, light, firm, anti-high temp, anti-corrosion, water proof, anti-acid rain   2 Specification   Operating distanceVisible light1000mThermal imagingobjecthuman(1.8m×0.5m)Vehicle(2.3m×2.3m)Detection distance3600m9900mRecognition distance900m2470mIdentification distance450m1200mCamera and video codingSensor type1/2.8" Progressive Scan CMOSTotal pixels2.1MPLens focal lengthf=4.5~135mm,30* optical zoomingCamera controlAuto gain control, auto white balance, auto backlight compensation, supporting manual and auto day and night mode switchCoding formatH.264Video resolution1920x1080Video frame rate1~30f/sImage adjustmentbrightness, contrast ratio, saturationInfrared lensFocal length30~150mm,5* optical zoomingFOV3.1°×2.4°~15.2°×12.2°F valueF1.0~F1.2Lens controlelectric zooming, electric focusing(auto focusing optional)DetectorDetector typeuncooled microbolometer focal plane array(VOx)Effective pixels324×256Spectral range8~14μmTemp sensitivity≤[email protected],300KFrame rate25HzImage processingDDE, pseudo colorPan-tiltCarrying capacity22kg(top load)AngleHorizontal 360°continuous rotation,pitching -45°~+45°speedHorizontal 0°~9°/s,pitching 0.1°~4°/sPreset bits255Cruising8 paths,10 bits each pathAnti-lightning2000VInterfacePower supply interfaceAC24VNetwork interface1×10Base-T/100Base-TX,RJ45Other interfacesRS485,BNC video outputEnvironment indicatorsWorking temp-25ºC~+55ºCStorage temp-40ºC~+65ºCProtection gradeIP66Power supplyWhole machine power supply24VAC±10%,appendant 220VAC~24VAC/5A water proof power supplyWhole machine power consumption≤60WPhysical featuresWhole machine weight21kgInstallation methodOutdoor pedestal mounting   3 Our Services (1)  We generally offer one year warranty. Extended warranty is also available.  (2) Life-long technical support. Professional technical team and salesperson help you with troubleshooting procedures any time when needed. (3) We accept OEM. (4) We offer customized product.    4 Company Introduction China CZVZ Optics & Electronics Co., Ltd, which was founded in 2004, is a leading night vision equipment and rugged information equipment supplier, as well as a relying construction company of Shandong Province Academician Workstation and Night Vision Surveillance Engineering Technology Research Center. CZVZ adheres to independent innovation, developed the world's first laser night vision camera and the first uncooled continuous zoom infrared thermal imaging camera with independent intellectual property rights, its synchronous zoom laser night vision technology and continuous zoom thermal imaging technology have reached international advanced standard level, possess the world's largest market share in laser night vision market. CZVZ insists on the belief "growing up with customers and employees" and ready to make more contribution to national defense and public security.
