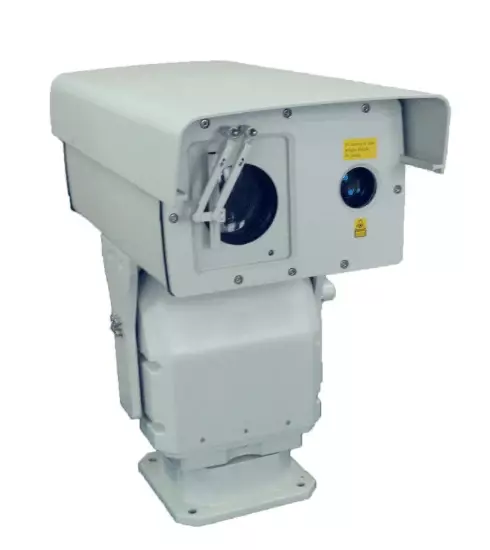

Surveillance Control System Waterproof Infrared CCTV IP Laser Camera

Model NO. SHR-HLV3020 Sensor CMOS HDMI Format 1080P Horizontal Resolution 640X512 Resolution Kind Autofocus Lens Certification CE, FCC, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition, Vandal-proof Effective Distance 6.5km Remote Control With Remote Control Detection Distance Day Vision: 6.5km, Night Vision:3km Laser Illumination Lens 100mm Zoom Laser Telephoto Lens Laser Illuminator Power 20W Illuminator Wave Length 810nm Visible Light Camera Sensor 1/1.8" Progressive Scan CMOS Video Code Format H.264/H.265/Mjpeg Pantilt Load Capacity 50kg Top Mount Pantilt Preset 255 Pantilt Cruising Function 2 Paths,64 Presets Each Path Protection Grade IP66 Transport Package Carton/Wooden Package Trademark CZVZ Origin Shandong, China Production Capacity 1000set/Month

Packaging & Delivery

Package Size 60.00cm * 50.00cm * 70.00cm Package Gross Weight 50.000kg

Product Description

Surveillance Control System Waterproof Infrared CCTV IP Laser Camera Product Description



Features: > Synchronous zooming laser illuminating system, long illuminating distance, large illuminating range, can monitor in 0LUX completely black > Day and night low illuminance 2 megapixel color to black camera, day and night continuous monitoring > MCIC multi-tube core fusion mixed mode light homogenization technology > Supporting fog penetration, backlight compensation, multistage wide dynamic  > Optional auto focusing function, realizing multiple focusing mode and triggering mode > Supporting camera back focal length fine adjustment technology and camera remote debugging  > Supporting long focal length speed limit and 3D locating function > Abundant network protocol and good network applicability, adapting all kinds of netork environment > External MMA fine adjustment mechanism, no need to disassemble to complete laser alignment adjustment   Technical Data:                      Model                                                   SHR-HLV3020 Monitoring distance Night vision 3000m Day vision 6500m Laser illuminator Power 20W Illumination lens 100mm zoom laser telephoto lens Wave length 810nm Angle 0.3°-30° continuous change Light homogenization MCIC even light technology Imaging lens Focal length 12.5-750mm FOV 0.6°-35° Auto focus Support(optional) Fog penetration Support(optional) Visible light camera Sensor 1/1.8" Progressive Scan CMOS Coding mode H.264/H.265/MJPEG Video resolution 1080P, CIF, supporting three data rates Video bitrate 32Kbps-16Mbps Video frame rate 1-25f/s(50Hz), 1-30f/s(60Hz) Pantilt Angle Pan 360° continuous, tilt -45° to +45(-60°~+20° optional) Speed Pan 0.01°-20°/s, tilt 0.01°-10°/s Presets 255, supporting lens zoom focus presets, 2paths, 64 presets each path Anti-lighting 2000V Load Capacity 50kg top mounted Interface Power supply DC 30V Network interface 1x10base-T/100Base-TX, RJ45 interface Environmental indicators Working temperature -25ºC~÷55ºC Storage temperature -40ºC ~÷65ºC Protection level IP66 Power supply Power AC 90V-295V to DC30V/5A ±5% /2.5A, waterproof power adapter Consumption ≤150W Physical features Weight 50kg Installation Outdoor base install   Application



Application:   It is widely used for the workshop monitoring, power station inspection, high speed railway,  road patrol, forest anti fire and coastal defense etc. Packaging & Shipping



   Package&Shipment:   Wooden / carton package means will be supplied to ensure the transport safety.   FAQ

  FAQ:

 Q: 1. Is sample order available?        Yes, we can accept the sample order for testing. Q: 2. Do you have the MOQ requirement?         The MOQ is 1 piece. Q: 3. Do you support technical supporting for the installation and operation?          Yes, we have professional technician to supply solution for you. Q: 4. What is the lead time?          It depends on the order quantity. Q: 5. How to ship the products?         For small order, it's usually shipped by express, like FEDEX, DHL, UPS or TNT etc.         For bulk order, it can be shipped as customer's need. Q: 6.What is the warranty for the product?        The warranty is 1 year. Q: 7. How about your after sale service?         Any problem about our product, please contact with us at any time. Q: 8. Do you accept the OEM product?          Yes, we can produce the product as customer requirement.   Company Profile

Company Introduction:

China CZVZ Optics & Electronics Co., Ltd, which was founded in 2004, is a leading night vision equipment and rugged information equipment supplier, as well as a relying construction company of Shandong Province Academician Workstation and Night Vision Surveillance Engineering Technology Research Center.  CZVZ's laser night vision and infrared thermal imaging products have been widely used in national defense, safe cities, railways, highways, forest fire, oil and other fields, achieved all-weather surveillance, provided technical support for the maintenance of national security and social stability. CZVZ's rugged information equipment have been widely used in land, sea, air, the Second Artillery Corps, and other branches, greatly promoted the national defense information technology. In addition to domestic market, the company's products have been exported to more than 40 countries and regions all over the world.Workshop: More Products You Can Review, Pls Click The Picture for Detail Information                       Long Range Thermal Camera                                             Laser Night Vision Camera                                  Heavy Duty Pan Tilt
