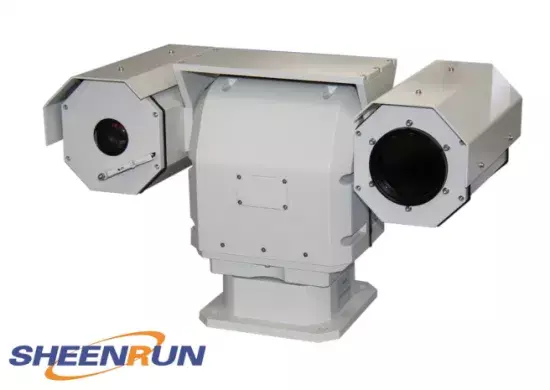

SHR-HVLV1000HTIR104R T-Shape Seaport Surveillance Day-Night Thermal Camera

Model NO. SHR-HVLV1000HTIR104R Sensor CMOS HDMI Format 1080P Kind Autofocus Lens Certification CE, FCC, RoHS, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition, Vandal-proof, Auto BLC Effective Distance 1000m Sensor Size 1/3 inch Remote Control With Remote Control Valid Pixels 640X512 Thermal Imager 25-100mm 4X Zoom, Auto Focus Visible Light Visible Light Human Recognize 730m Vehicle Recognize 2080m Transport Package Wooden Case/Carton Specification IP66 Trademark CZVZ Origin Jinan, Shandong, China Production Capacity 5000

Product Description

Product Features 1) 640×512 Uncooled microbolometer infrared focal plane arrays 2) High sensitivity, with clear image 3) Dynamic Detail Enhancer (DDE) function; output white hot/black hot/color palette 4) Low power consumption, quick start-up, stable performance, image with high uniformity 5) Sealed shell, smart shape, nitrogen inside, anti-harsh environment Specifications   DistanceVisible light1000mHuman(1.8m×0.5m)Detect2910mRecognise730mIdentificate360mVehicle(2.3m×2.3m)Detect8320mRecognize2080mIdentificate1040mDetectorSensorUncooled infrared focal plane detector(vox)Valid pixels640x512Wave length8~14μmNETD≤[email protected],300KFrame25HzThermal imagerFocal length100mm, 25-100mm 4X zoom, auto focusFOV6.2°×5.0°Lens controlElectronic focusEffect distanceTo people≥2800m, to vehicle≥8000mControlIp softwareHD 1080P cameraEffecting Distance1000m in daytimeLensFocal Length: f=4.5~135mm, 30x optical zoomingLens aperture: F1.6~4.4Video CodeFormat: H.264Video resolution: 1280×1080p(25fps), support dual-streamTitle on screen display: logo, date, time, alarmImage adjustment: brightness, contrast, saturationHK series support Hikvision platformImaging Components1/2.8" Progressive Scan CMOSPixel: 2.1 MEGALow illumination: 0.1 LUX (color), 0.01LUX (black&white)Network ProtocolTCP/IP, ARP, ICMP, FTP, RTP/RTCP, NTP, DNS, DDNS, SNMP, PPPoE, RTSPPan-tiltTilt speed0°~30°/sPan speed0°~22°/sPresets128Scan speed1 °/sCruise function2 pathsEnvironment indicatorsWorking temperature-25ºC~+ 60 ºCStorage temperature-40ºC~+ 85 ºCAnti-vibration150m/s² 11msSalt-fog proofcontinuously spray fog for 48 hours under PH6.5-7.2physicsPower consumption≤30WWeight15.5KgSize516.5×240×310mmMTBF≥10000hrs
