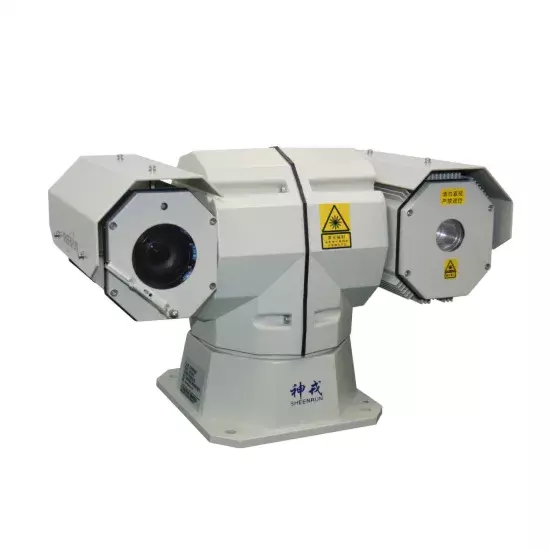

Short Range 500m~1000m Day Night Vision HD IP Laser Camera

Model NO. SHR-HLV535 Sensor CMOS HDMI Format 1080P Kind Autofocus Lens Certification CE, FCC, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition, Vandal-proof Effective Distance ≧30m Sensor Size 1/3 inch Remote Control Without Remote Control Illuminator Wave Length 810nm Video Code Format H.264/H.265/Mjpeg Pantilt Cruising Function 6 Paths Laser Illuminator Power 5W Visible Light Camera Lens 4.3-129nm, 30X Optical Zoom Pantilt Preset 256 Protection Grade IP66 Detection Distance in Night Timee 800m Transport Package Wooden Case/Carton Specification 240mmx374mmx243mm Trademark CZVZ Origin Shandong Province, China Production Capacity 100 Units / Month

Product Description

  Product Description   Features: Adopting laser illuminating system, far illuminating distance, wide illuminating range, can monitor in 0Lux completely black Day&night low light megapixel color to black camera, day&night continuous monitoring Auto white balance, auto gain control, auto exposure control High performance video processing chip and H.264 high efficiency video code, providing millions of high definition video image Dual stream function, small time delay, fully satisfying different network bandwidth Capturing and videoing, supporting WEB browsing video, provide access to NVR platform to conduct parameter configuration and operation state management Adopting high performance power supply program, wide voltage input, low power consumption, suitable for special power supplying mode such as solar power Professionally designed shell, artistic, light, firm, anti-high temp, anti-corrosion, water proof, anti-acid rain Product Parameters



              Model                                                  SHR-HLV535Monitoring distanceNight vision800mDay vision1000mLaser illuminatorPower5WWave length810nmAngle0.7°-50°Light homogenizationMCICVisible light cameraSensor1/2.8" Progressive Scan CMOSTotal pixels2.1MPLens focal length4.3-129mm,30x optical zoomLens apertureF1.6-4.4Min Lux0.05Lux(color), 0.01Lux(black and white)Camera controlAuto gain control, auto white balance, auto backlight compensation, supporting manual and auto day and night mode switchVideo codingCoded formatH.264/H.265/MJEPGVideo resolution1920x1080Bitrate64Kbps-4MbpsFrame rate1-25f/s(50Hz), 1-30f/s(60Hz)PantiltAnglePan 360° continuous, tilt -90° to +90°SpeedPan 0°-80°/s, tilt 0°-60°/sPresets256Cruising function6 pathsInterfaceNetwork interface1x10Base-T/100Base-TX,RJ45Power supply interface1xDC 24V socket, for external power adapterAudio interface1xLine In, 1xLine outAlarm interface1 switch input, 1 switch outputEnvironmental indicatorsWorking temperature-25ºC~÷55ºC(-40ºC to +55ºC optional)Storage temperature-40ºC ~÷65ºCProtection levelIP66Anti-VibrationGB/T 15211-1994 5.4 SEVERITIES LEVEL 2Anti-impactGB/T 15211-1994 5.3 SEVERITIES LEVEL 3Anti-salt fogGB/T2423.17-2008Power supplyPowerDC 24V±5% /2.5A, equipped with 220VAC~24VDC/4.2A, waterproof power adapterConsumption≤60WPhysical featuresWeight≤14kgSize(including sunshield cover)240mmx374mmx243mm (LXWXH)



Effects   Packaging & Shipping FAQ

1. Q: Is your company manufacturer?          Yes, CZVZ is the thermal camera and laser camera manufacturer since year 2004.2. Q: Can you supply OEM service?         Yes, CZVZ can do OEM products as customer's requirement.3. Q: What is the product's lead time?         It is confirmed by the order quantity.4. Q: What is the warranty?         It is generally 1 year warranty, extend warranty is available.5. Q: How will the product be shipped?         For sample order, it will be shipped by DHL, FEDEX, UPS or TNT.         For bulk order, we can arrange the shipment as customer requirement.6. Q: How about your after sale service?         Any problem about our product, you can contact with us at any time. Our team will supply technical service for you.

Company Profile

CZVZ company, which was founded in year 2004, is one of the largest manufaturer of long range thermal imaging camera and laser night vision camera, as well as a relying Academician serveillance Engineering Technology Research Center in China.CZVZ adheres to independent innovation, which developed the world's first laser night vision camera,  and the continuous zoom infrared thermal imaging technology has reached the international advanced standard level.  The laser night vision and infrared thermal imaging products have been widely used in nation defense, safe cities, railways, highways, forest fire, oil and other fields, achieved all-weather surveillance, provided technical support for the maintenance of national security and socal stability.
