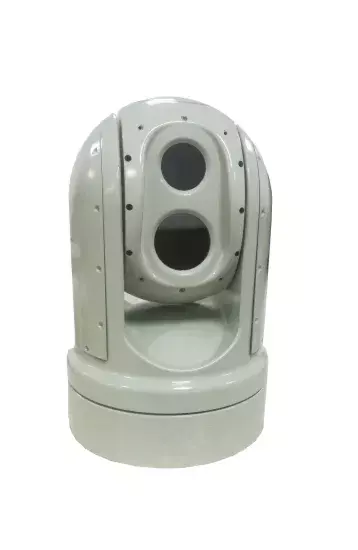

Ship-Borne Image Stabilization GPS Long Range Day Night PTZ Marine Flir Surveillance Pantilt Thermal Camera

HDMI Format 1080P Horizontal Resolution 540tvl Kind Autofocus Lens Certification CE, FCC, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition Sensor Size 1/3 inch Remote Control With Remote Control Human Detection 5040m Car Detection 14400m Human Recognition 10260m Car Recognition 3600m Human Identification 630m Car Identification 1800m Visible Light Camera 1/2" Progressive Scan CMOS Thermal Lens 36~180mm, 5X Optical Zoom Thermal Detector 384X288/640X512 Uncooled Fpa Detector HD Camera Lens 12.5~750mm HD Camera Snsor 1/1.8" Progressive Scan CMOS PTZ Angle Pan 360°continuously, Tilt ±45° PTZ Speed Pan 0.01~20°/S; Tilt 0.1~10°/S Size 712X385X583mm Weight Less Than 55kg Transport Package Carton Specification 540mm× 343mm× 560mm Trademark CZVZ Origin Shandong Province, China Production Capacity 200 Units / Month

Product Description

 Ship-Borne Image Stabilization GPS Long Range Day Night PTZ Marine Flir Surveillance Pantilt Thermal Camera Product Description



1. Product Features

Adopting continuous zoom thermal imaging technology, it has a strong ability to penetrate fog and detect target in the distance. It can not only search in a wide range, but also can observe target in close range. Day and night 2 megapixels low illuminance color camera, cooperated with thermal imaging camera, realizes day and night continuous monitoring Multi-position intelligent identification autofocus technology enables fast focusing through multiple focus modes and trigger modes. The control software of the front-end equipment can realize online upgrade function through the network, which greatly facilitates the post-maintenance PTZ with maintenance window, circuit board plug-in design, can quickly replace the circuit board without removing the shell PTZ re-powered, PTZ self-test can return to the user's own zero or power off position, support remote restart function Universal variable speed PTZ, which achieves all-round blind-free monitoring and achieves high-precision positioning Professional design shell, beautiful, light, strong, anti-high-temperature, corrosion resistance, waterproof, anti-acid-rain 2. Technical Specifications Operating distanceVisible light8000mThermal imagingobjecthuman(1.8m×0.5m)Vehicle(2.4m×2.4m)Detection distance4200m12000mRecognition distance1050m3000mIdentification distance520m1500mHD lensLens12.5~750mmFOV0.6°~35°Aperture TypeAuto ApertureFocusManual/AutoCamera and video codingSensor type1/1.8" Progressive Scan CMOSTotal pixels2.1MPCamera controlAuto gain control, auto white balance, auto backlight compensation, supporting manual and auto day and night mode switchPenetrate fogOn/Off optionalPost-focusingSupport, Remote-testCoding formatH.265/H.264/MJPEGNoise reduction3D Digital noise reductionVideo resolution1920x1080, three stream supportedVideo frame rate50Hz:25fps(1920×1080),25fps (1280×720)60Hz:30fps(1920×1080),30fps (1280×720)Image adjustmentbrightness, contrast ratio, saturationInfrared lensFocal length30~150mm,5× optical zoomingFOV4.2°x3.1°~20.6°x15.5°F valueF1.0~F1.2Lens controlelectric zooming, electric focusing (auto focusing optional)DetectorDetector typeUncooled microbolometer focal plane array(VOx)Effective pixels384×288/640x512Spectral range8~14μmTemp sensitivity≤[email protected],300KFrame rate25HzImage processingDDE, pseudo colorPan-tiltCarrying capacity50kg (top load)AngleHorizontal 360°continuous rotation, pitching -45°~+45°SpeedHorizontal 001°~20°/s, pitching 0.1°~10°/sPreset bits255Cruising2 paths,64 bits each pathAuto-scan1 pathInterfacePower supply interfaceDC30VNetwork interface1×10Base-T/100Base-TX,RJ45Environment indicatorsWorking temp-25ºC~+55ºCStorage temp-40ºC~+65ºCProtection gradeIP66Power supplyWhole machine power supply90VAC~305VAC to DC30V water proof power supplyWhole machine power consumption≤130WPhysical featuresWhole machine weight≤55kgDimension712×385×583(L×W×H)mmInstallation methodOutdoor pedestal mounting                                GPS Function on top                                                                             Anti-freezing design                                                         3 Our Services (1)  We generally offer one year warranty. Extended warranty is also available.  (2) Life-long technical support. Professional technical team and salesperson help you with troubleshooting procedures any time when needed. (3) We accept OEM. (4) We offer customized product.  Packaging & Shipping



4 Package&Shippment Wooden and carton case to ensure the shipping safety. FEDEX, UPS, TNT, DHL etc can be choosed.   Company Profile



5 Company Introduction China CZVZ Optics & Electronics Co., Ltd, which was founded in 2004, is a leading night vision equipment and rugged information equipment supplier, as well as a relying construction company of Shandong Province Academician Workstation and Night Vision Surveillance Engineering Technology Research Center. CZVZ adheres to independent innovation, developed the world's first laser night vision camera and the first uncooled continuous zoom infrared thermal imaging camera with independent intellectual property rights, its synchronous zoom laser night vision technology and continuous zoom thermal imaging technology have reached international advanced standard level, possess the world's largest market share in laser night vision market. Company Photo: Exhibition:
