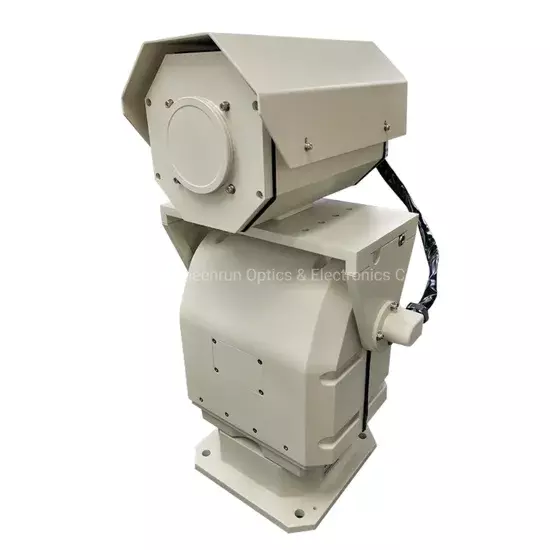

Sheenrun Security Long Range Thermal Imaging Camera

Model NO. SHR-TIR63R Sensor CMOS & Uncooled Fpa HDMI Format 1080P Horizontal Resolution 540tvl Kind Autofocus Lens Certification CE, FCC, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition, Vandal-proof Effective Distance ≧30m Sensor Size 1/3 inch Remote Control With Remote Control Size 251mmx115mmx117mm Focal Length 20~60mm,3X Optical Zoom Fov 7.6°×6.1°~22.6°×18.2° F 1.0 Transport Package Carton Specification 400mm× 400mm× 500mm Trademark CZVZ Origin Shandong Province, China Production Capacity 1000 Units / Month

Product Description

Product Description   1  Feature*  324×256 High resolution uncooled microbolometer infrared focal plane arrays,vox*  25µm super small pixel,image quality fine,observe small target more clearly,further detection distance*  High sensitivity, NETD can reach 50mk and frame at 25Hz*  Word originate 20~60mm continuous zooming,can search in a wide range as well as identify target far,don't lost    target*  Image noise reduction processing,add DDE function; output hot white/ hot black/pseudo color*  Low power consumption, quick start-up, stable performance, image clearly with high uniformity* RS 485 interface control, analog video signal output* Simple operation,easy to use and maintain* Precision casting aluminium alloy shell,sealed and waterproof,nitrogen inside, anti-harsh      environment,overlength working lifetime 2. Camera Specifications    Monitoring distanceObjectPeople(1.8 m×0.5 m)Vehicle(2.3 m×2.3 m)Detect distance1440m3960mRecognize distance360m990mIdentification distance180m480mThermal lensFocal length20~60mm,3x optical zoomFOV7.6°×6.1°~22.6°×18.2°F1.0Lens controlElectronic zoom/focus(auto focus is optional)DetectorDetector typeUncooled FPA detector(vox)Pixel324×256,pixel 25µmSpectrum8~14μmNETD≤50mKFrame25HzNUCAuto/Manual/Background correctionImage processDDE,pseudo colorVideo outputPALInterfacePower supply interfaceDC12VOther interfaceRS485,BNC Video outputEnvironmental indicatorsWorking temperature-25ºC~+55ºCStorage temperature-40ºC~+65ºCInternational protectionIP66Anti-vibrationGB/T 4857.10-2005Anti-impactGB/T 15412-94 Free drop test methodAnti-thunder2000VPowerPower supplyDC12V(attached AC220V/DC12Vpower adapter)Power consumption≤8WPhysical featuresWeight≤1.8KgSize251mm×115mm×117mm(L×W×H,contain sunshield cover)InstallationOutdoor base install   Effects

Packaging & Shipping

After Sales Service (1)  We generally offer one year warranty. Extended warranty is also available.  (2) Life-long technical support. Professional technical team and salesperson help you with troubleshooting procedures any time when needed. (3) We accept OEM. (4) We offer customized product.    Company Profile China CZVZ Optics & Electronics Co., Ltd, which was founded in 2004, is a leading night vision equipment and rugged information equipment supplier, as well as a relying construction company of Shandong Province Academician Workstation and Night Vision Surveillance Engineering Technology Research Center. CZVZ adheres to independent innovation, developed the world's first laser night vision camera and the first uncooled continuous zoom infrared thermal imaging camera with independent intellectual property rights, its synchronous zoom laser night vision technology and continuous zoom thermal imaging technology have reached international advanced standard level, possess the world's largest market share in laser night vision market.
