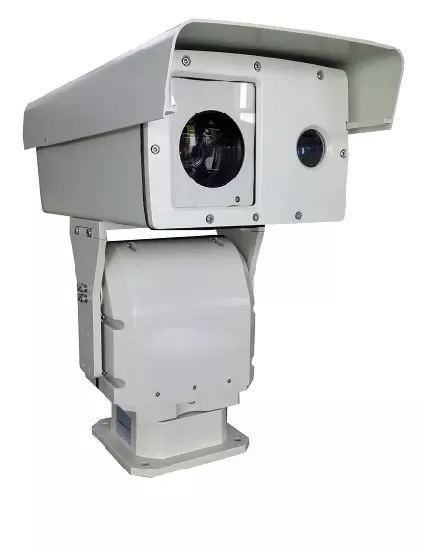

Sheenrun HD PTZ Laser Night Vision Camera

Model NO. HLV1020 Sensor CMOS HDMI Format 1080P Horizontal Resolution 640X512 Kind Autofocus Lens Certification CE, FCC, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition, Vandal-proof Effective Distance 11.8km to Vehicle Sensor Size 1/3 inch Remote Control With Remote Control Transport Package Wooden Case/Carton Specification Thermal Sensor Trademark CZVZ Origin Shandong Province, China Production Capacity 100 Units / Month

Packaging & Delivery

Package Size 54.00cm * 56.00cm * 30.00cm Package Gross Weight 22.000kg

Product Description

Product Description Product Features:   1) Adopt sync zoom laser IR illuminator system,illuminate far with large scope,can realize monitoring at 0Lux2)Day and night type low illumination level color to black camera,to realize monitoring around the clock3) MCIC light homogenization technology,no speckle & Crape ring phenomenon,high marginal definition4) Support fog penetrating,backlight compensation,multistage WDR5) Support telephoto limiting-velocity & 3D locate function6) External MMA micro-adjusting mechanism,no need to remove cover to finish laser alignment adjustment7) Smart shell with professional design,light,firm,high temperature resistance,anti-corrosion, waterproof and acid rain proof   Specification: Monitoring DistanceNight vision1000mDay vision2000mImaging lensFocal length15~300mmFOV0.9°~18.2°CameraSensor type1/3'' surface infrared enhanced CCDPixel752×582ResolutionColor 600 TV line,black & white 650 TV lineMin. illuminatingColor 0.02lux,black & white 0.0009luxLaser IR illuminatorIllumination lens60x zoom laser telephoto lensPower6WWavelength810nmIlluminate angle0.5°~30° continuous changeLight homogenizationMCIC light homogenization technologyShieldMaterialPrecision casting aluminium alloyWindow glass4mm Microlite super white optical glassPan-tiltLoad20kg(top-load)Angle360° continuously rotating horizontally,-60°~+20° looking up and downSpeedPan 0.1°~9°/s,tilt 0.1°~4°/sPresets255pcs,support lens zoom & focus presets memoryAuto cruising8 cruising paths,each path can set up 10 presetsAnti-thunder2000VInterfacePower supply interfaceAC24VOther interfaceRS485,BNC video outputEnvironmental indicatorsWorking temperature-25ºC~+55ºCStorage temperature-40ºC~+65ºCInternational protectionIP66PowerPower supplyAC24V±10%,equip AC220V~AC24V/5A waterproof power supplyPower consumption≤80WPhysical featuresWeight25.5kgInstallationOutdoor base install Packaging & Shipping

  Our Advantages Certification:

(1)Technical advancement certificate

Invention patent of continuous zooming for uncooled infrared thermal imaging camera(Patent number:ZL 200810015710.6) Invention patent of large times zoom for infrared continuous zooming lens of uncooled infrared thermal imaging camera(Patent number:ZL 200910014323.5) Invention patent of auto focus method and device for thermal camera (Patent number:ZL200910019161.4) Invention patent of anti-glare damage thermal camera and its method (Patent number:ZL201210362592.2) Invention patent of a infrared thermal system blind-pixel substitution method(Patent number:ZL201310182838.2) Invention patent of super times zoom for infrared continuous zooming lens of uncooled infrared thermal imaging camera(Patent number:ZL 201410094484.0) Shandong Province Patent Technology Award Uncooled large diameter zoom infrared thermal imaging camera State Key New Products(2011TJC60003)

(2)Quality reliability certificate

ISO9001:2008 Certificate of quality management system; Inspection report from Security and Electronic Product Quality Testing Center of the Ministry of Public Security; China Saibao (Shandong) Laboratory Test Report; CE, FCC certificate Company Profile
