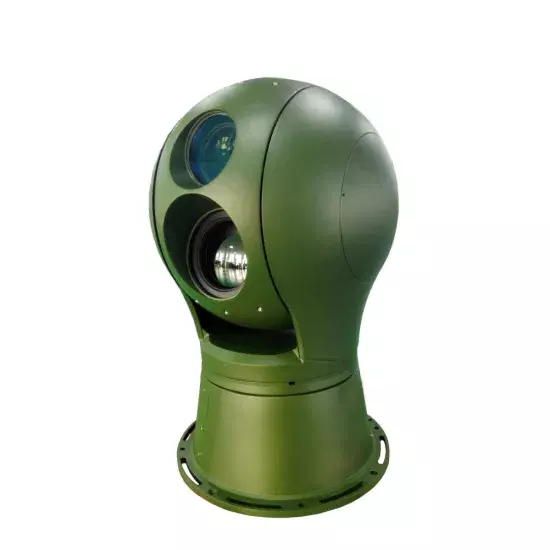

Security Night Vision PTZ Series Optics Dome Thermal Imager Camera

Model NO. SHR-PT550HLV1520TIR155R Sensor CMOS HDMI Format 1080P Kind Autofocus Lens Certification CE, FCC, CCC, ISO9001: 2000 Feature Waterproof / Weatherproof Effective Distance ≧30m Sensor Size 1/3 inch Remote Control With Remote Control HD Camera Monitoring Distance 4500m Thermal Detector Uncooled Fpa Detector Thermal Camera Detection Distance Human: 4200mm, Vehicle:12000m Thermal Detector Pixel 384X288 Thermal Image Process Dde, Pseudo Color Thermal Lens F Value F1.0~F1.2 Thermal Focal Length 30~150mm, 5X Zoom Lens Control E-Zoom, E-Focus HD Camera Focal Length 15.6~500mm HD Camera Sensor Type CMOS Pantilt Load 25kg Power Supply DC30V Transport Package Wooden or Carton Package Trademark CZVZ Origin Shandong, China Production Capacity 1000sets/Month

Product Description

Security Night Vision PTZ Series Optics Dome Thermal Imager Camera   Features: 1. Adopting thermal imaging technology, imaging clearly, can search in large area and recognize objectives in long distance2.High resolution infrared detector with NETD≤ 50mK3. Day and night 2 megapixels low illuminance color camera, realizing day and night continuous monitoring4.Optional auto focusing function, realizing multiple focusing mode and triggering mode5.Optional thermal imaging camera presetting function, remembering FOV of each preset bit, enhancing working efficiency6.3D locating function, can realize frame selection magnifying function and clicking to center function, reducing operating difficulty, enhancing device usability 7.High reliability aluminum alloy electro-optical pantilt, reinforcement design, strong ability of anti-wind, anti-salt fog, low and high temperature resistance etc   Thermal Camera Technical Data: Monitoring distanceHD camera4500mThermalcameraHumanVehicle4200m12000m1050m3000m520m1500mThermal detectorDetectorUncooled FPA detectorPixel384×288Spectral range8~ 14μmNETD≤[email protected], 300KFrame rate25HzImage processDDE, pseudo colorThermal lensFocal length30~150mm, 5x zoomFOV 2.9°x2.2°~14.6°x11° F value F1.0~F1.2 Lens controlE-zoom, e-focus(auto focus optional)IFOV0.17~0.83mradHD CameraSensor type1/1.8'' Progressive Scan CMOSCoding formatH.265/MJPEG/H.264Video resolution1080P,CIF,supporting three streamVideo bit rate32Kbps~ 16MbpsVideo frame rate1~ 25F/S (50Hz), 1~ 30F/S (60Hz)HD lensFocal length15.6~500mmFOV0.9°~ 27.5°OtherDefog, Auto focus Support for optionalPan-tiltload25kgAnglePan: 0°~ 360°;  Tilt: -45°~ +45°speedPan: 0.01°~ 45°/s;  Tilt: 0.01°~ 30°/sPreset 255 Preset accuracy±0.1°(±0.05° optional)Auto cruise2paths, 64presets each pathAuto scan1 pathAnti-windGrade 12InterfacePower supplyDC30VNetwork interface1x10Base-T/100Base-TX,RJ45VideoRS485/RS422, BNC video outputEnvironment indicatorstemp.operation -25ºC~ +55ºC (-40ºC~ +65ºC optional), Storage -40ºC~ +65ºCProtection gradeIP66Power supplyPowerWide range power input AC90~305V to output DC30V/10A,anti-water power supplyConsumption≤180W(without heater); ≤230W(with heater) Application:  > Car cctv> Marine surveillance> Robot cctv> Patrol vehicle surveillance> Mining monitoring> Fire rescue camera FAQ: 1. Q: Is your company manufacturer?           Yes, CZVZ is the thermal camera and laser camera manufacturer since year 2004. 2. Q: Can you supply OEM service?          Yes, CZVZ can do OEM products as customer's requirement. 3. Q: What is the product's lead time?          It is confirmed by the order quantity. 4. Q: What is the warranty?          It is generally 1 year warranty, extend warranty is available. 5. Q: How will the product be shipped?          For sample order, it will be shipped by DHL, FEDEX, UPS or TNT.          For bulk order, we can arrange the shipment as customer requirement. 6. Q: How about your after sale service?          Any problem about our product, you can contact with us at any time. Our team will supply technical service for you.Package&Shipment Wooden and carton case package to ensure the shipping safety. DHL, TNT, FEDEX, UPS etc expree can be choosed. Company Profile: CZVZ company, which was founded in year 2004, is one of the largest manufaturer of long range thermal imaging camera and laser night vision camera, as well as a relying Academician serveillance Engineering Technology Research Center in China. CZVZ adheres to independent innovation, which developed the world's first laser night vision camera,  and the continuous zoom infrared thermal imaging technology has reached the international advanced standard level.  The laser night vision and infrared thermal imaging products have been widely used in nation defense, safe cities, railways, highways, forest fire, oil and other fields, achieved all-weather surveillance, provided technical support for the maintenance of national security and socal stability.   Certifcate
