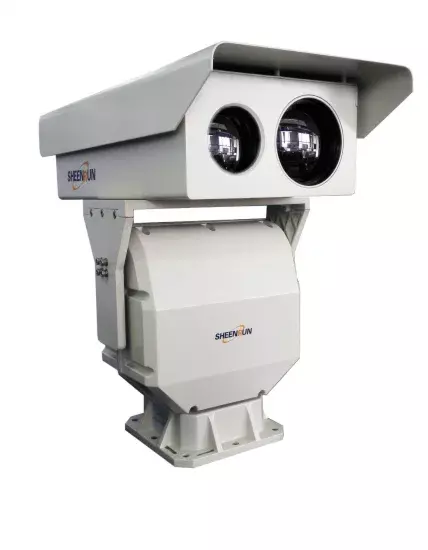

River Channel Surveillance Used Long Range Day/Night Vision Thermal Camera

Model NO. SHR-HLV1520TIR155 Sensor CMOS HDMI Format 1080P Horizontal Resolution 540tvl Kind Autofocus Lens Certification CE, FCC, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition Effective Distance 5km Sensor Size 1/1.8′′ Remote Control With Remote Control Thermal Lens 30~150mm Thermal Detector Uncooled Fpa Detector(Vox) Thermal Resolution 384X288/640X512 Day Camera Lens 12.5~500mm Day Camera Sensor 1/1.8" Progressive Scan CMOS Day Camera Resolution 2.1MP PTZ Rotation 360 Degrees Continuously PTZ Tilt -60~+20 Degrees Protection Grade IP 66 Working Tep. -25~+55ºC Storage Tep. -40~+65ºC Transport Package Carton Specification 637mm× 377mm× 573mm Trademark CZVZ Origin Shandong Province, China Production Capacity 200 Units / Month

Product Description

1 Product Features  1. Adopting continuous zooming thermal imaging technology, imaging clearly, can search in large area and recognize objectives in long distance2. Infrared detector with high temp sensitivity, with min temp resolution of 50mK3. Day and night 2 megapixels low illuminance color camera, realizing day and night continuous monitoring4. Optional auto focusing function, realizing multiple focusing mode and triggering mode5. Optional thermal imaging camera presetting function, remembering FOV of each preset bit, enhancing working efficiency6. 3D locating function, can realize frame selection magnifying function and clicking to center function, reducing operating difficulty, enhancing device usability7. Professionally designed shell, artistic, light, firm, anti-high temp, anti-corrosion, water proof, anti-acid rain   2 Specification Operating distanceVisible light5000mThermal imagingobjecthuman(1.8m×0.5m)Vehicle(2.3m×2.3m)Detection distance4200m12000mRecognition distance1050m3000mIdentification distance520m1500mHD lensLens15.2~500mmFOV0.8°~25.6°Aperture TypeAuto ApertureFocusManual/AutoCamera and video codingSensor type1/1.8" Progressive Scan CMOSTotal pixels2.1MPCamera controlAuto gain control, auto white balance, auto backlight compensation, supporting manual and auto day and night mode switchPenetrate fogOn/Off optionalPost-focusingSupport, Remote-testCoding formatH.265/H.264/MJPEGNoise reduction3D Digital noise reductionVideo resolution1920x1080, three stream supportedVideo frame rate50Hz:25fps(1920×1080),25fps (1280×720)60Hz:30fps(1920×1080),30fps (1280×720)Image adjustmentbrightness, contrast ratio, saturationInfrared lensFocal length30~150mm,5× optical zoomingFOV2.5°x1.9°~12.4°x9.3°(384x288)4.2°x3.1°~20.6°x15.5°(640x512)F valueF1.0~F1.2Lens controlelectric zooming, electric focusing (auto focusing optional)DetectorDetector typeUncooled microbolometer focal plane array(VOx)Effective pixels384×288/640x512Spectral range8~14μmTemp sensitivity≤[email protected],300KFrame rate25HzImage processingDDE, pseudo colorPan-tiltCarrying capacity50kg (top load)AngleHorizontal 360°continuous rotation, pitching -45°~+45°SpeedHorizontal 001°~20°/s, pitching 0.1°~10°/sPreset bits255Cruising2 paths,64 bits each pathAuto-scan1 pathInterfacePower supply interfaceDC30VNetwork interface1×10Base-T/100Base-TX,RJ45Environment indicatorsWorking temp-25ºC~+55ºCStorage temp-40ºC~+65ºCProtection gradeIP66Power supplyWhole machine power supply90VAC~305VAC to DC30V water proof power supplyWhole machine power consumption≤120WPhysical featuresWhole machine weight≤45kgDimension637×377×573(L×W×H)mmInstallation methodOutdoor pedestal mounting 3 Our Services (1)  We generally offer one year warranty. Extended warranty is also available.  (2) Life-long technical support. Professional technical team and salesperson help you with troubleshooting procedures any time when needed. (3) We accept OEM. (4) We offer customized product.    4 Company Introduction China CZVZ Optics & Electronics Co., Ltd, which was founded in 2004, is a leading night vision equipment and rugged information equipment supplier, as well as a relying construction company of Shandong Province Academician Workstation and Night Vision Surveillance Engineering Technology Research Center. CZVZ adheres to independent innovation, developed the world's first laser night vision camera and the first uncooled continuous zoom infrared thermal imaging camera with independent intellectual property rights, its synchronous zoom laser night vision technology and continuous zoom thermal imaging technology have reached international advanced standard level, possess the world's largest market share in laser night vision market.
