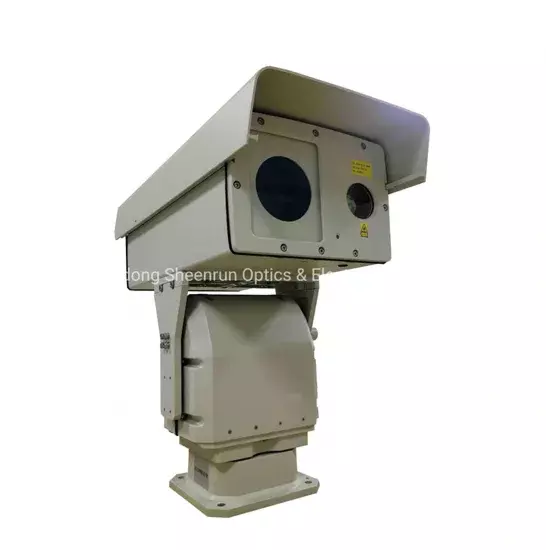

PTZ Outdoor City Monitoring CCTV Laser Night Vision Camera

Model NO. SHR-HLV1020 Sensor CMOS HDMI Format 1080P Kind Autofocus Lens Certification CE, FCC, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition, Auto BLC Effective Distance 2km at Day and 1km at Night Remote Control With Remote Control Lens Focal Length 10~320mm Camera Resolution 1920*1080, HD Network Camera Protection Grade IP66 Transport Package Wooden Cartons Trademark SHEENRUN Origin Shandong, China Production Capacity 1000

Product Description

SHR-HLV1020 HD Middle Range Night Vision Laser PTZ Camera Product features                                                                1.Synchronous zooming laser illuminating system, long illuminating distance, large illuminating range, realizing monitoring in 0Lux  2.Day and night low illuminance 2 megapixels color to black camera, day and night continuous monitoring 3.MCIC multi-tube core fusion mixed mode light homogenization technology, no speckle and dark ring, high edge definition  4.Supporting fog penetration, backlight compensation, multistage wide dynamic  5. Optional auto focusing function, realizing multiple focusing mode and triggering mode 6.Supporting camera back focal length fine adjustment technology and camera remote debugging  7.upporting long focal length speed limit and 3D locating function  8.Abundant network protocol and good network applicability, adapting all kinds of network environment 9.External MMA fine adjustment mechanism, no need to disassemble to complete laser alignment adjustment  10.Professionally designed shell, artistic, light, firm, anti-high temp, anti-corrosion, water proof, anti-acid rain Monitoring distanceNight vision1000mDay vision2000mImaging lensFocal length10 ~ 320mmFOV1.2° ~ 38.5°F2.5 ~ 16Auto focusingSupporting(optional)Fog penetrationSupporting(optional)CameraSensor type1/1.8"Progressive Scan CMOSCoding modeH.264/MPEG4/MJPEGVideo resolution1080P,CIF,supporting three streamVideo bit rate32Kbps ~ 16MbpsVideo frame rate1 ~ 25F/S(50Hz),1 ~ 30F/S(60Hz)IlluminatorIlluminating lens60x zooming laser telephoto lensPower8WWave length810nmIlluminating angle0.5° ~ 30°continuous changingLight homogenizationMCIC homogenization technologyPan-tiltLoad22kg(top load)AngleHorizontal 360°continuous rotation,pitching -60° ~ +20°SpeedHorizontal 0.1° ~ 9°/s,pitching 0.1° ~ 4°/sPreset bits255 bits,supporting lens zooming and focusing memory,8 cruising pathsAuto cruising8 paths,10 preset bits each pathInterfacePower supply interfaceAC24VNetwork interface1×10Base-T/100Base-TX,RJ45Environment indicatorsWorking temp-25ºC ~ +55ºC(-40ºC ~ +55ºC customized)Storage temp-40ºC ~ +65ºCProtection gradeIP66Power supplyWhole machine power supplyAC24V±10%,equipped with AC220V ~ AC24V/5A water proof power supplyWhole machine power consumption≤80WPhysical featuresWeight25kgInstallation methodOutdoor Based installation
