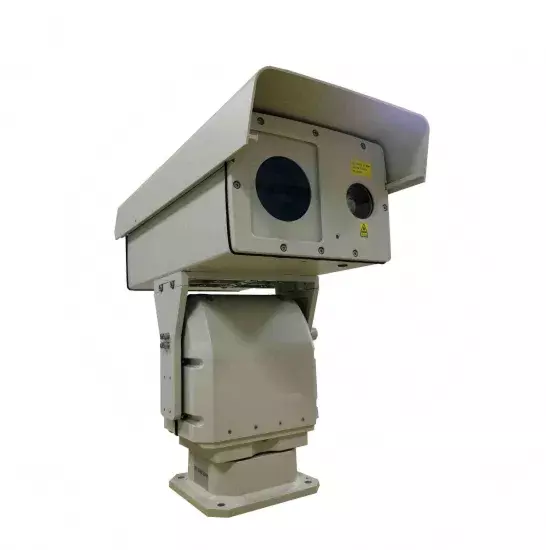

PTZ Long Range HD IP CCTV Module IR Laser Camera

Model NO. SHR-HLV3020 Sensor CMOS HDMI Format 1080P Horizontal Resolution 640X512 Resolution Kind Autofocus Lens Certification CE, FCC, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition, Vandal-proof Effective Distance 6.5km Remote Control With Remote Control Detection Distance Day Vision: 6.5km, Night Vision:3km Laser Illumination Lens 100mm Zoom Laser Telephoto Lens Laser Illuminator Power 20W Illuminator Wave Length 810nm Visible Light Camera Sensor 1/1.8" Progressive Scan CMOS Video Code Format H.264/H.265/Mjpeg Pantilt Load Capacity 50kg Top Mount Pantilt Preset 255 Pantilt Cruising Function 2 Paths,64 Presets Each Path Protection Grade IP66 Transport Package Carton/Wooden Package Trademark CZVZ Origin Shandong, China Production Capacity 1000set/Month

Packaging & Delivery

Package Size 60.00cm * 50.00cm * 70.00cm Package Gross Weight 50.000kg

Product Description

PTZ Long Range HD IP CCTV Module IR Laser Camera Product Description



Features: > Synchronous zooming laser illuminating system, long illuminating distance, large illuminating range, can monitor in 0LUX completely black > Day and night low illuminance 2 megapixel color to black camera, day and night continuous monitoring > MCIC multi-tube core fusion mixed mode light homogenization technology > Supporting fog penetration, backlight compensation, multistage wide dynamic  > Optional auto focusing function, realizing multiple focusing mode and triggering mode > Supporting camera back focal length fine adjustment technology and camera remote debugging  > Supporting long focal length speed limit and 3D locating function > Abundant network protocol and good network applicability, adapting all kinds of netork environment > External MMA fine adjustment mechanism, no need to disassemble to complete laser alignment adjustment   Technical Data:                      Model                                                  SHR-HLV3020Monitoring distanceNight vision3000mDay vision6500mLaser illuminatorPower20WIllumination lens100mm zoom laser telephoto lensWave length810nmAngle0.3°-30° continuous changeLight homogenizationMCIC even light technologyImaging lensFocal length12.5-750mmFOV0.6°-35°Auto focusSupport(optional)Fog penetrationSupport(optional)Visible light cameraSensor1/1.8" Progressive Scan CMOSCoding modeH.264/H.265/MJPEGVideo resolution1080P, CIF, supporting three data ratesVideo bitrate32Kbps-16MbpsVideo frame rate1-25f/s(50Hz), 1-30f/s(60Hz)PantiltAnglePan 360° continuous, tilt -45° to +45(-60°~+20° optional)SpeedPan 0.01°-20°/s, tilt 0.01°-10°/sPresets255, supporting lens zoom focus presets, 2paths, 64 presets each pathAnti-lighting2000VLoad Capacity50kg top mountedInterfacePower supplyDC 30VNetwork interface1x10base-T/100Base-TX, RJ45 interfaceEnvironmental indicatorsWorking temperature-25ºC~÷55ºCStorage temperature-40ºC ~÷65ºCProtection levelIP66Power supplyPowerAC 90V-295V to DC30V/5A ±5% /2.5A, waterproof power adapterConsumption≤150WPhysical featuresWeight50kgInstallationOutdoor base install   Application

It is widely used for the workshop monitoring, power station inspection, high speed railway,  road patrol, forest anti fire and coastal defense etc.

Packaging & Shipping   Wooden / carton package means will be supplied to ensure the transport safety.   FAQ Q: 1. Is sample order available?        Yes, we can accept the sample order for testing. Q: 2. Do you have the MOQ requirement?         The MOQ is 1 piece. Q: 3. Do you support technical supporting for the installation and operation?          Yes, we have professional technician to supply solution for you. Q: 4. What is the lead time?          It depends on the order quantity. Q: 5. How to ship the products?         For small order, it's usually shipped by express, like FEDEX, DHL, UPS or TNT etc.         For bulk order, it can be shipped as customer's need. Q: 6.What is the warranty for the product?        The warranty is 1 year. Q: 7. How about your after sale service?         Any problem about our product, please contact with us at any time. Q: 8. Do you accept the OEM product?          Yes, we can produce the product as customer requirement.   Company Profile CZVZ company, which was founded in year 2004, is one of the largest manufaturer of long range thermal imaging camera and laser night vision camera, as well as a relying Academician serveillance Engineering Technology Research Center in China. CZVZ adheres to independent innovation, which developed the world's first laser night vision camera,  and the continuous zoom infrared thermal imaging technology has reached the international advanced standard level.  The laser night vision and infrared thermal imaging products have been widely used in nation defense, safe cities, railways, highways, forest fire, oil and other fields, achieved all-weather surveillance, provided technical support for the maintenance of national security and socal stability.The company photo:
