PTZ CCTV HD IP Dual Sensor Thermal and Daylight Cameras

Model NO. SHR-VLV1000HTIR104R Sensor CCD&Vox HDMI Format Analog Horizontal Resolution 540tvl Kind Autofocus Lens Certification CE, FCC, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition, Vandal-proof, Auto BLC Effective Distance ≥1000m Sensor Size 1/4 inch Remote Control Optional Protection IP66 Transport Package Wooden Case/Carton Specification 60× 60× 40cm Trademark SHEENRUN Origin China Production Capacity 1000

Product Description

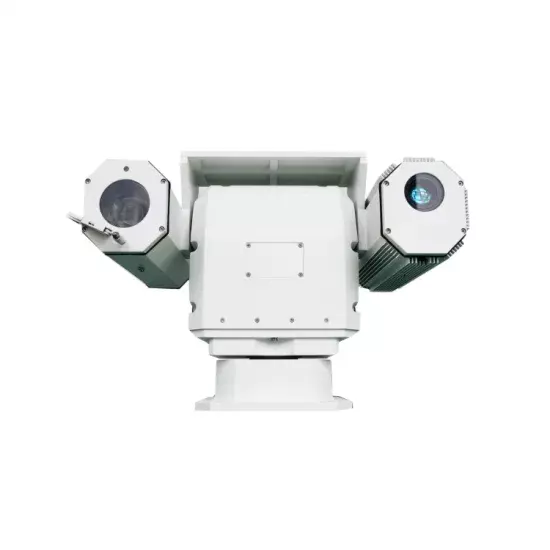

SHR-VLV1000HTIR104R Double Sensor Thermal Imaging Camera   Introduction :         SHR-VLV1000HTIR104R double spectrum night vision camera combines thermal imager, visible camera and pan-tilt together, has two video output, 360°horizontal rotate, PTZ design, can realize 24hrs monitoring.This product has two operation mode, day mode and night mode. In day mode, it uses CCTV camera to image; while under night mode, it uses thermal camera to image.         This product can be widely used in many occasions at night, harsh environment, long distance, large scope and hidden monitoring. Features: 640*512,25HZ Vox detector 25--100mm 4X continuous zoom lens.thermal zoom technology, clear image, auto focus Day night low illumination color to black CCD camera, can realize continuous monitor Shift pantilt, realize full monitor and high precision position Easy operation, easy to use and maintain Hidden thermal, uneasy to be found Professional design, smart, low weight and anti harsh environment Low power consumption, stable performance Easily for integrating Laser range finder(Optional) Thermal Imager: Sensor             640*512,9HZ or 25Hz uncooled FPA Vox detectorThermal lens    100mm fixed Wave length      8~14μmNETD               ≤50mk F1.0,300KImage processing   AGC,DDE Day/Night CCD Camera: Sensor             1/4" Exview HAD CCDValid pixels       440000,550TVLZoom               36x optical zoomFocal length     3.4~122.4mm  FOV                 57.8° (H) to 1.7° (H)Min illumination    0.01LxZoom method    Auto/manualShutter              1/1~1/10000s Pan/tilt: Rotating Speed      Tilt 0°~30°/s, Pan 0°~22°/sPresets                   128(support object tracking)Scan and cruising function     SupportCruise function      2 paths Video Output: Video output          PAL or NTSC for thermal and visibleStreaming Video        MPEG-4, H.264, or M-JPEG IP video               Video Server Environmental: Operation Temperature       -30ºC~+ 60 ºCStorage Temperature         -40ºC~+ 85 ºCProtect Grade                 IP66Anti-impact                  GB/T15412-94Anti-vibration                 GB/T4857.10-2005Anti-thunder                  2000v Power: Requirements 24 VAC/24 VDC System Compatibility: Compatibility with VMS and Video Analytics System Shape and dimension: System connection reference Camera can be connected with other equipment to form a system.   Effect Demo:
