Portable Intelligent Laser Damage System Thermal Camera

Model NO. SHR--500W System Daytime Vision Distance 1000m Pixel 2.1 Mega Pixel Daylight Camera Lens 4.5-135mm, 30* Optical Zoom Laser Wave Length 810nm Laser Illuminator Power 5W Coding Format H.264 / H.265 Camera Type Laser Night Vision Camera Presets 256 Presets Protection Degree IP66 Cruising Function 6 Paths Weight 8kg Lens Aperture F1.6~3.5 Factory Yes Certificate CE Transport Package Carton / Wooden Case Specification 8kg Trademark CZVZ Origin Shandong Province, China Production Capacity 1000 Units / Month

Product Description

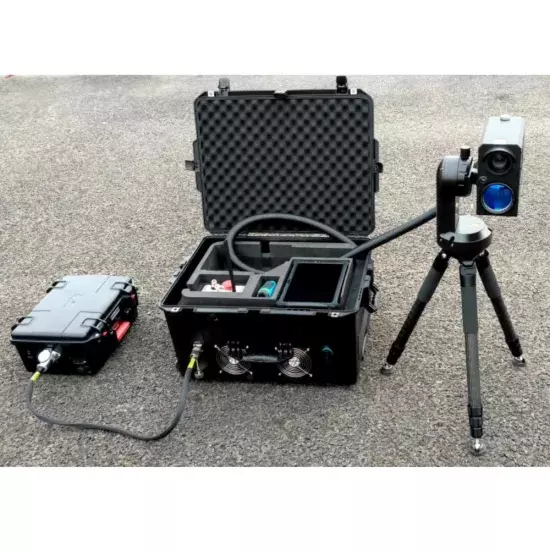

The portable intelligent laser damage system to meet the requirement of long distance focusing and high energy laser rapid damage on unexplosive ordance. The high energy laser damage system is composed of emission head, air cooled laser, lithium battery, tablet computer, tripod and so on. It can be carried by two people and is easy to transport, quick to deploy, safe and efficient.

Features:

1) Ranging and aiming functions;

2) Function of far-field high-energy laser focusing;

3) Able to remotely control the system, laser emit, laser off, video recording, etc., and provide a unified display interface to monitor the working status of each part of the system;

4) Able to display the laser power and remaining electricity;

5) Video storage and playback of the laser damage process;

6) Easy to deliver, assemble, disassemble and use.

500W System 1000W System 1.Overall specifications Output power≥500W Output power≥1000W Overall weight≤55KG Overall weight≤68KG Damage distance:50-150m Damage distance≥200m,maximum damage distance 300m The system is equipped with a PTZ for precise aiming. System aiming accuracy≤5mm@100m Ranging capability, ranging error≤2m Remote control distance in sighting condition≥400m(can be customized) The system can be operated remotely with a tablet. Output transmission power adjustment range:10%~100%. Capablility of recording the entire operation. With safety interlock control and emergency stop button. Apply the sound and flash alarm at the laser components. Continuous operating time with full power≥45min (Ordinary temperature) Deployment time for two people≤3min Number of failure-free emission:≥2000times Beam diameter:≤5mm@50m≤10mm@100m≤15mm@200m Environmental adaptability:Storage temperature:-30ºC~60ºCOperating temperature:-20ºC~50ºCHumidity:10%RH~95%RH

FAQ

Q: 1. Is sample order available?

      Yes, we can accept the sample order for testing.

Q: 2. Do you have the MOQ requirement?

       The MOQ is 1 piece.

Q: 3. Do you support technical supporting for the installation and operation?

        Yes, we have professional technician to supply solution for you.

Q: 4. What is the lead time?

        It depends on the order quantity.

Q: 5. How to ship the products?

       For small order, it's usually shipped by express, like FEDEX, DHL, UPS or TNT etc.

       For bulk order, it can be shipped as customer's need.

Q: 6.What is the warranty for the product?

      The warranty is 1 year.

Q: 7. How about your after sale service?

       Any problem about our product, please contact with us at any time.

Q: 8. Do you accept the OEM product?

        Yes, we can produce the product as customer requirement.
