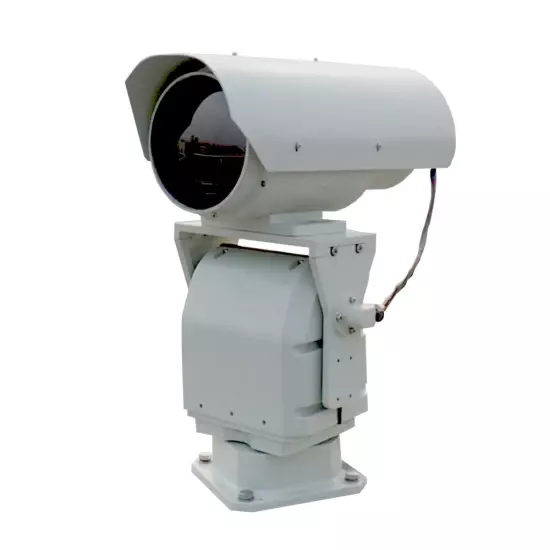

Perimeter Security Used Day and Night PTZ Thermal Imaging Camera

Model NO. SHr-DIR 104&155 Sensor Uncooled Fpa (Vox) HDMI Format 480P Horizontal Resolution 640×512/384×288 Kind Autofocus Lens Certification CE, FCC, EMI/EMC, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition, Vandal-proof Effective Distance 12km Sensor Size 1/3 inch Remote Control With Remote Control Detector Uncooled Fpa Detector(Vox) Pixel 384×288 F F1.0~F1.2 Spectrum 8~ 14μm Netd ≤ 50mk Image Process Dde, Pseudo Color PTZ Load 18kg PTZ Moving Pan: 0°~ 360°; Tilt: +20°~ -60° PTZ Moving Speed Pan: 0.1 ~ 9°/S; Tilt: 0.1 ~ 4°/S Transport Package Carton/Box Specification 440mm× 213mm× 217mm Trademark CZVZ Origin Shandong Province, China Production Capacity 200 Units / Month

Product Description

1 Product Features1. High resolution uncooled microbolometer infrared focal plane arrays,vox2.  25µm or 17 µm pixel,image quality fine,observe small target more clearly,further detection distance3.  High sensitivity, NETD can reach 50mk and frame at 25Hz4.  Word originate 36~180mm continuous zooming,can search in a wide range as well as identify target far,don't lost target5.  Image noise reduction processing,add DDE function; output hot white/ hot black/pseudo color6.  Low power consumption, quick start-up, stable performance, image clearly with high uniformity7.  RS 485 interface control, analog video signal output8.  Simple operation,easy to use and maintain 9. Precision casting aluminium alloy shell,sealed and waterproof,nitrogen inside, anti-harsh environment,overlength working lifetime      2 Specification ModelSHR-DIR104SHR-DIR155Monitoring distanceObjectHuman (1.8m×0.5m)Vehicle (2.3m×2.3m)Human (1.8m×0.5m)Vehicle (2.3m×2.3m)Detection2800m8000m4200m12000mRecognition700m2000m1050m3000mIdentification 350m1000m500m1500mDetectorDetector typeUncooled microbolometer FPA detector (vox)Resolution384×288, pixel 17μmSpectrum8~ 14μmNETD≤ 50mKFrame rate25HzNUCAuto/ manual/ background correctionImage processDDE, pseudo colorVideo outputPALThermal lensFocal length25~100mm, 4x optical zoom30~ 150mm, 5x optical zoomFOV3.7°×2.8°~14.9°×11.2°2.5°×1.9° ~ 12.4°×9.3°F value1.0F 1.0-1.2Lens controlE-zoom, E-focus (auto focus is optional)Pan-tiltLoad capacity18kgRotate anglePan: 0°~ 360°; Tilt: +20°~ -60°Rotate speedPan: 0.1°/s ~ 9°/s; Tilt: 0.1°/s ~ 4°/sPreset200Auto cruise 8 paths, each has 10 presetsInterface RS422, RS485ProtocolPelco-D, Pelco-P optional Power supplyAC24V±20%, 50/60HZ; DC28V±20%Power consumption ≤40WProtectionIP66Environment indicatorsWorking temperature-25ºC ~ +55ºCStorage temperature-40ºC ~ +65ºCProtectionIP66Anti-vibrationGB/T 4857.10-2005Anti-impactGB/T 15412-94 Free drop test methodAnti-thunder2000VPhysical featuresWeight≤ 14Kg≤ 15KgSize(L×W×H, including sunshield cover)390mm×174mm×488mm400mm×202mm×515mmInstallationOutdoor based installation  3 Our Services (1)  We generally offer one year warranty. Extended warranty is also available.  (2) Life-long technical support. Professional technical team and salesperson help you with troubleshooting procedures any time when needed. (3) We accept OEM. (4) We offer customized product.    4 Company Introduction China CZVZ Optics & Electronics Co., Ltd, which was founded in 2004, is a leading night vision equipment and rugged information equipment supplier, as well as a relying construction company of Shandong Province Academician Workstation and Night Vision Surveillance Engineering Technology Research Center. CZVZ adheres to independent innovation, developed the world's first laser night vision camera and the first uncooled continuous zoom infrared thermal imaging camera with independent intellectual property rights, its synchronous zoom laser night vision technology and continuous zoom thermal imaging technology have reached international advanced standard level, possess the world's largest market share in laser night vision market.
