P43 P45 White Green Phosphor Image Intensifier Tubes for Pvs-14 Night Vision Gen2 Night Vision Monocular Binoculars

Model NO. DA-Image Intensifier Tube Style Head-mounted Structure Binocular Kind Image Intensifier Night Vision Operation Principle Low-light Night Vision Shell Material Plastic Customized Customized Fom 1600/1700 Snr 25 Magnification 1X Resolution 64 Lp/mm Fov 40 Degree Electric Connection End Lead/Contacts Sensitivity (2856K) 800 μa/Lm Image Intensifier Tube Gen2+ / Gen 3 Waterproof IP65(IP67 Optional) Battery Type Lithium Batteries Cr123X1 Weight 80g Brand Name CZVZ Model Number Mx10160 Name Mx 10160 Figure of Merit 1600 Transport Package Safety Box Provided Specification 14X8X10 cm Trademark DA-Image Intensifier Tube Origin China HS Code 9005809000 Production Capacity 200PCS/Month

Product Description

P43 P45 White Green Phosphor Image Intensifier Tubes for Pvs-14 Night Vision Gen2 Night Vision Monocular Binoculars

Product Description

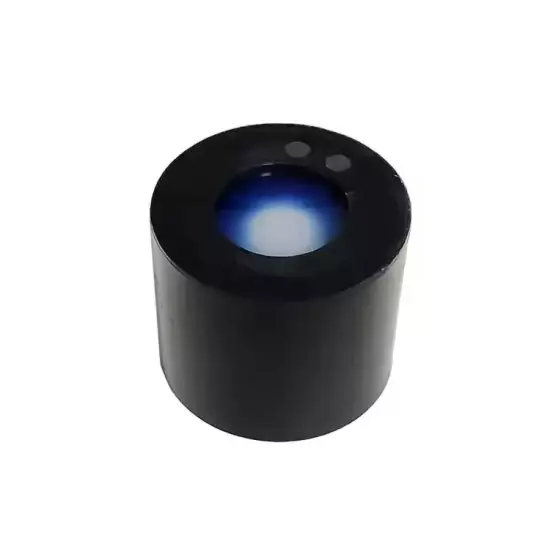

MX10160 series image intensifier tube adopts double proximity focused electronic optical system and S25+photocathode with extended near-infrared response and magnification ratio of 1. The product has the func-ions of strong light source protection and polarity reversal protection, and has the advantages of small sizelight weight and low power consumption.



Class AThe flagship product of the series, which adopts optical reflection reduction technology, with photocathode sensitivity of over 1000μA/lm and FOM up to 1800, and features such as near-infrared enhancement and small halo to meet the needs of users in identifying targets under different environmental conditions.



Class BThe upgraded product of the series, its FOM more than 1600, using auto-gated power supply technology, with a wider dynamic range, can adapt to a variety of complex environment, in the case of changing external lighting conditions, to provide users with a more comfortable observation experience.



Class CThe basic product of the series, with technologies such as high-contrast optic fiber inverter and input enhancement, It can provide higher image resolution and signal-to-noise ratio with FOM 1400 or higher, rendering superior image quality in low light conditions.

  ParameterClass CClass BClass AFigure Of Merit1400 16001800Sensitivity (2856K)(μA/lm)700 8001000SNR232528Resolution ( lp/mm)606464High light resolution (2001x)(lp/mm)-5454Operating voltage(V)2.2-3.42.2-3.42.2-3.4Operating current(mA)152525Luminance gain(cd/m^2/lx)8000-120008000-1200010000-20000 Maximum output brightness(cd/m²⁾4~8  4~84~10  Working illumination range(lx) /1×10^-6~5×104  1×10^-6~5×104 Uniformity of luminance(2856K)3:1  3:13:1  Cathode effective diameter(mm) 17.517.5  17.5Power supplyNormalAuto-gatingAuto-gatingPhosphor powderP43P43P43Weight(g)≤80≤80≤80Power consumption(mW)33-5155-8555-85 Specification

REAL FOM ValueFOM value we provide is the real figure of merit, FOM1600 is FOM1600, FOM 2000 is FOM2000, never and ever lies. See below test report from NNVT , it's real Gen 3rd, FOM=60*30.98=FOM1858

Auto-gating Available

Autogating is an extremely critical feature for IITs' life that dynamically and automatically controls the bright into the image intensifier, so that auto-gating function can well help IITs avoid damage due to brightlight.

In Stock!!!CZVZ has over 300 pcs Gen 2+ image intensifier tubes and over 100 pcs Gen 3 Image intensifier tubes in stock now, so you can not only get your tubes very fast, but also receive your PVS-14, PVS-31and PVS-7 in a short time!
