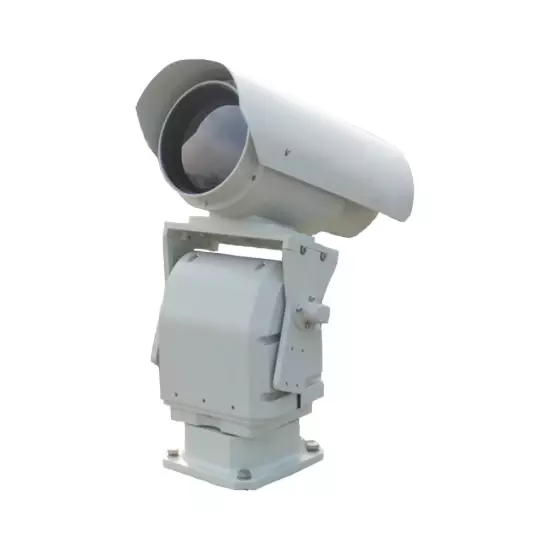

Outdoor Surveillance Night Vision Thermal IP Camera

Model NO. SHR-TIR155R Sensor Uncooled Fpa Detector(Vox) HDMI Format 480P Horizontal Resolution 384X288/640X512 Kind Autofocus Lens Certification CE, FCC, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition, Vandal-proof Effective Distance 12 Km Sensor Size 1/3 inch Remote Control With Remote Control Detect Distance 4050m for Human; 11400m for Car Recognize Distance 1012m for Human; 2850m for Car Identify Distance 506m for Human; 1425m for Car Focal Length 30~150mm 5× Continuous Zoom F F1.0 Detector Uncooled Fpa Detector(Vox) Pixel 384X288/640X512(Optional) Spectrum 8~14μm Netd ≤[email protected], 300K Frame 15Hz Transport Package Carton/Wooden Box Specification 400mm× 202mm× 200mm Trademark CZVZ Origin Shandong Province, China Production Capacity 200 Units / Month

Packaging & Delivery

Package Size 60.00cm * 50.00cm * 40.00cm Package Gross Weight 20.000kg

Product Description

Product Features Adopt continuous zooming thermal imaging technology, imaging clear, further detection distance, not only largescale search but also small scale observation; 384×288 High resolution uncooled microbolometer infrared focal plane arrays, vox, high sensitivity; Fine quality image, observe small target more clearly, further detection distance; Multi-position intelligent automatic focusing technology, rapid focusing can be achieved through a variety of focusing modes and triggering modes; Manually adjust brightness/contrast, digital zoom, auto/manual/background correction, ,better imaging; Image noise reduction processing, add DDE function; output hot white/ hot black/pseudo color; Digital video output, easy access to existing security monitoring platform; Precision casting aluminum alloy shell, sealed and waterproof, nitrogen inside, anti-harsh environment, overlength working lifetime.    Specification Monitoring distanceObjectPeople(1.8m×0.5m)Vehicle(2.3m×2.3m)Detect distance4050m11400mRecognize distance1012m2850mIdentification distance506m1425mThermal lens   Focal length30~150mm 5× Continuous ZoomFOV2.93°×2.20°~14.59°×10.97°FF1.0Lens controlElectronic zoom/focus/auto focusDetectorDetector typeUncooled FPA detector(vox)Pixel384x288/ 640*512(Optional)Spectrum8~14μmNETD≤[email protected],300KFrame25HzNUCAuto/Manual/Background adjustImage processDDE, pseudo colorVideo outputPALShieldMaterialSuper strength cast aluminum alloyStructureIntegrated shell designOtherSeal nitrogen filledInterfacePower supply interfaceDC12VOther interfaceRS485,BNC video outputEnvironmental indicators   Working temperature-25ºC~+55ºC(-40ºC~+55ºCOptional)Storage temperature-40ºC~+65ºCInternational protectionIP66Anti-vibrationAccord with GB/T 15211-1994 5.4 harsh grade 2Anti-impactAccord with GB/T 15211-1994 5.3 harsh grade 3Anti-thunder2000VPowerPower supplyDC12V(attached AC220V/DC12V power adapter)Power consumption≤8WPhysical featuresSize400mm×202mm×200mm (L×W×H, sunshield cover included)Weight≤5KgInstallationOutdoor base install

Certification

(1)Technical advancement certificate

(2)Quality reliability certificate

ISO9001:2008 Certificate of quality management system; Inspection report from Security and Police Electronic Product Quality Testing Center of the Ministry of Public Security; China Saibao (Shandong) Laboratory Test Report; CE, FCC certificate. Company
