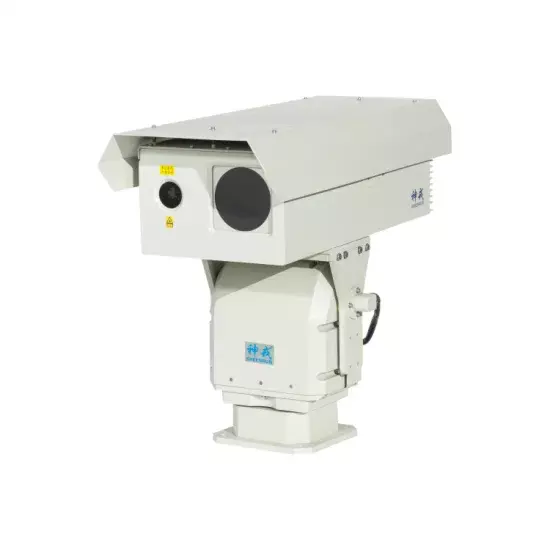

outdoor Security Infrared PTZ IP Laser Night Vision Camera (SHR-HLV1020)

Model NO. SHR-HLV1020 Sensor CMOS HDMI Format 1080P Horizontal Resolution 1920 Kind Autofocus Lens Certification CE, FCC, RoHS, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition, Vandal-proof, Auto BLC Effective Distance 1km Night, 2km Daytime Sensor Size 1/1.8" Remote Control With Remote Control Monitoring Distance 1km Night, 2km Daytime Lens 10~320mm Resolution 1920×1080 Laser Illuminator 8W Pantilt Pan 360°, Tilt -60°~+20° Presets 255 Power Supply AC24V Interface RJ45 Ingress Protection IP66 Weight 25kg Transport Package Carton and Wooden Case Specification 718× 353× 558mm Trademark SHEENRUN Origin China Production Capacity 500units/Month

Packaging & Delivery

Package Size 26.50cm * 18.00cm * 39.00cm Package Gross Weight 28.000kg

Product Description

Product Description

1. Product Features

Adopt sync zoom laser IR illuminator system,illuminate far with large scope,can realize monitoring at 0LuxDay and night type low illumination level color to black camera,to realize monitoring around the clockMCIC light homogenization technology,no speckle & Crape ring phenomenon,high marginal definitionSupport fog penetrating,backlight compensation,multistage WDRSupport telephoto limiting-velocity & 3D locate functionExternal MMA micro-adjusting mechanism,no need to remove cover to finish laser alignment adjustmentSmart shell with professional design,light,firm,high temperature resistance,anti-corrosion, waterproof and acid rain proof2. Technical Specifications   Monitoring DistanceNight vision1000mDay vision2000mImaging lensFocal length15~300mmFOV0.9°~18.2°CameraSensor type1/3'' surface infrared enhanced CCDPixel752×582ResolutionColor 600 TV line,black & white 650 TV lineMin. illuminatingColor 0.02lux,black & white 0.0009luxLaser IR illuminatorIllumination lens60x zoom laser telephoto lensPower6WWavelength810nmIlluminate angle0.5°~30° continuous changeLight homogenizationMCIC light homogenization technologyShieldMaterialPrecision casting aluminium alloyWindow glass4mm Microlite super white optical glassPan-tiltLoad20kg(top-load)Angle360° continuously rotating horizontally,-60°~+20° looking up and downSpeedPan 0.1°~9°/s,tilt 0.1°~4°/sPresets255pcs,support lens zoom & focus presets memoryAuto cruising8 cruising paths,each path can set up 10 presetsAnti-thunder2000VInterfacePower supply interfaceAC24VOther interfaceRS485,BNC video outputEnvironmental indicatorsWorking temperature-25ºC~+55ºCStorage temperature-40ºC~+65ºCInternational protectionIP66PowerPower supplyAC24V±10%,equip AC220V~AC24V/5A waterproof power supplyPower consumption≤80WPhysical featuresWeight25.5kgInstallationOutdoor base install   Effects     Company Profile
