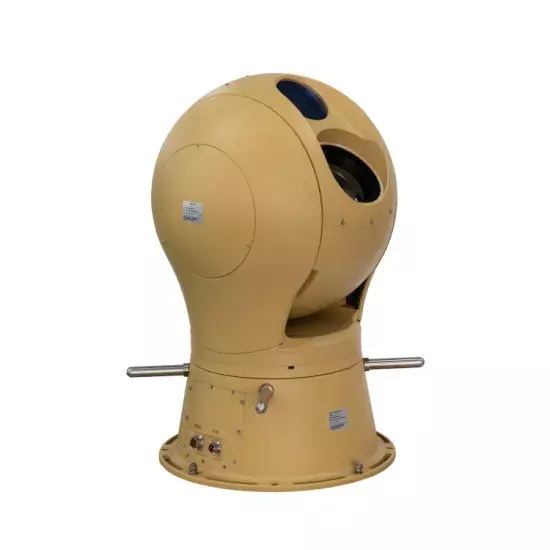

Optics Servo Stabilized 75km Long Distance Security Gimbal Thermal Camera

Model NO. SHR-GPT500HLV3020ZIR360H Sensor CMOS HDMI Format 1080P Horizontal Resolution 540tvl Kind Autofocus Lens Certification CE, FCC, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition Effective Distance 6.5 Km Sensor Size 1/3 inch Remote Control With Remote Control Monitoring Distance Human: 7.5km, Vehicle: 20km Thermal Camera Detector Type Refrigeration Focal Plane Array Detector (Mct) Thermal Camera Pixel 320×256 Image Process Dde, Pseudo Color Thermal Lens Focal Length 30~360mm, 12X Times; Optical Zoom Thermal Lens F Value F1.0~F1.2 HD Camera Focal Length 12.5~750mm Thermal Lens 30~150mm Thermal Detector 384X288/640X512 Uncooled Fpa Detector HD Camera Lens 12.5~750mm HD Camera Snsor 1/1.8" Progressive Scan CMOS Photoelectric Turntable Pan 360deg;Continuously Pitch Speed 0.05deg~60deg/S Interface Power Supply DC30V Video Control RS422, BNC Video Output Transport Package Carton Specification 540mm× 343mm× 560mm Trademark CZVZ Origin Shandong Province, China Production Capacity 200 Units / Month

Product Description

Optics Servo Stabilized 75KM Long Distance Security Gimbal Thermal Camera 1. Technical Specifications Distance  Visible light6500mThermal imagingTargetHuman(1.8m×0.5m)Boat(24m×8m)Detect7520m20000mRecognize1880m13000mIdentify940m7000mHD LensFocal length12.5~750mmFF3.6~F22.CFOV0.6°~35°Auto irisDC driveAuto focusSupportCameraSensor type1/1.8''Progressive Scan CMOSColor PatternIntegrated ICR dual filter day and night, day and night dual mode parameter settingsShutter speedAutomatic and manual adjustmentCamera controlAutomatic gain control, automatic white balance, support for manual/automatic day and night mode conversionPenetrate fogOn/off optionalWide DynamicOn/off optionalBacklight compensationOn/off and area optionalArea-of-interestSupport on/off, area optionalRear focus fine tuningSupport, remote debuggingNoise reduction3D digital noise reductionCoded formatH.265/H.264/MJPEGVideo resolution1080P,three code stream supportVideo bitrate32Kbps~16MbpsFrame rate50Hz: 50fps (1920×1080,1280×960,1280×720);25fps (1920×1080,1280×960,1280×720);60Hz: 60fps (1920×1080,1280×960,1280×720);  30fps (1920×1080,1280×960,1280×720);Filter Title OverlayTitle, date, timeImage adjustBrightness, contrast, saturation acutance, etcNetwork protocolTCP/IP/ICMP/HTTP/HTTPS/FTP/DHCP/DNS/DDNS/RTP/RTSP/RTCP/PPPoE/NTP/UPnP/SMTP/SNMP/IGMP/802.1X/QoS/IPv6/BonjourFeaturesSupport heartbeat, video cover, password protection, mirroring function Thermal lensFocal length 30~360mm,12× optical zoomFOV 1.5°×1.2°~18.2°×14.6°Lens controlElectric zoom, electric focus, auto focusIFOV0.08~1.0mradDetectorTypeRefrigeration Focal Plane Array Detector (MCT)Resolution320×256Spectral range3~5μmNETD≤[email protected],300kFrame50HzNUCAuto/manual/ Scene FFCImage processingDigital detail enhancement (DDE), image brightness contrast adjustment, electronic amplificationVideo outputPAL formatPhotoelectric turntableHorizontal 360° continuously turningPitch-45°~+45°Horizontal speed0.05°~80°/sPitch speed0.05°~60°/sstabilization precision≤1mrad(RMS)ProtocolPelco-D,Pelco-P optionalBaud rate 2400/4800/9600/19200 bps optionalAnti-thunderPower supplier 4000V, video signal 2000VInterfaceInterfaceDC30VNetwork interface1×10Base-T/100Base-TX,RJ45 interfaceVideo controlRS422,BNC video outputEnvironment indexOperating temperature-40ºC~+60ºCStorage temperature-45ºC~+65ºCProtection gradeIP66Anti-saltfog Comply with GB/T2423.17-2008Power Power supplyDC30V,AC90~305VDC30V/10A wide band waterproof power supplyConsumption≤180WPhysical featuresWeight≤80kgDimension 500mm×500mm×795mm(L×W×H) Installation Outdoor base installation Application for various fields: safe city monitoring, forest fire-proof monitoring, high attitude monitoring, railway monitoring, harbor monitoring, oilfield monitoring, freeway monitoring etc. 2 Our Services (1)  We generally offer one year warranty. Extended warranty is also available.  (2) Life-long technical support. Professional technical team and salesperson help you with troubleshooting procedures any time when needed. (3) We accept OEM. (4) We offer customized product.   3 Company Introduction China CZVZ Optics & Electronics Co., Ltd, which was founded in 2004, is a leading night vision equipment and rugged information equipment supplier, as well as a relying construction company of Shandong Province Academician Workstation and Night Vision Surveillance Engineering Technology Research Center. CZVZ adheres to independent innovation, developed the world's first laser night vision camera and the first uncooled continuous zoom infrared thermal imaging camera with independent intellectual property rights, its synchronous zoom laser night vision technology and continuous zoom thermal imaging technology have reached international advanced standard level, possess the world's largest market share in laser night vision market. Exhibition: Certificate: More Products You Can Review, Pls Click The Picture for Detail Information                       Long Range Thermal Camera                                             Laser Night Vision Camera                                  Heavy Duty Pan Tilt
