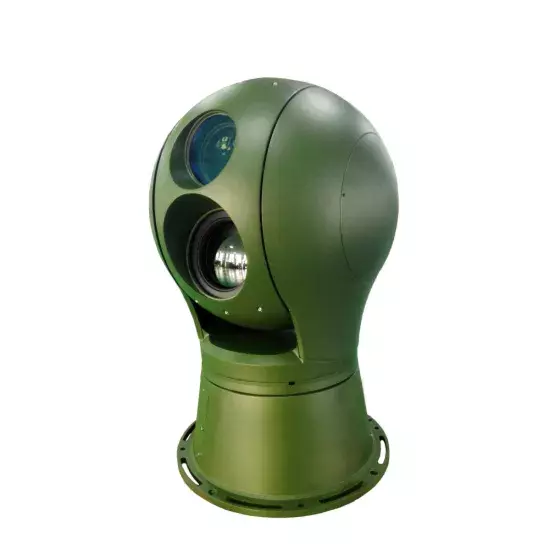

Optical Electro PTZ Dual Sensor Thermal Camera

Model NO. PT550HLV4020ZIR75/300R Video Capture System Video Camera Video Transmission System Optical Fiber Transmission Software Function Monitoring+Control Software Usage Computer Monitoring Software Client Software Client Software Model Surveillance Sensor CMOS Kind Autofocus Lens Technology Pan / Tilt / Zoom Horizontal Resolution 540tvl Whole Machine Power Consumption ≤120W Transport Package Carton Specification 400mm× 400mm× 500mm Trademark CZVZ Origin China Production Capacity 10 Units / Month

Product Description

 Features:    Adopting thermal imaging technology, imaging clearly, can search in large area and recognize objectives in long distance High resolution infrared detector with NETD≤ 50mK Day and night 2 megapixels low illuminance color camera, realizing day and night continuous monitoring Optional auto focusing function, realizing multiple focusing mode and triggering mode Optional thermal imaging camera presetting function, remembering FOV of each preset bit, enhancing working efficiency 3D locating function, can realize frame selection magnifying function and clicking to center function, reducing operating difficulty, enhancing device usability High reliability aluminum alloy electro-optical pantilt, reinforcement design, strong ability of anti-wind, anti-salt fog, low and high temperature resistance etc. Specification:   Monitoring distanceHD camera9000mThermalcameraHumanVehicle6270m15330m1570m3830m780m1920mThermal detectorDetector Cooled detectorPixel324×256Spectral range8~ 14μmNETD≤25mKFrame rate25HzImage processDDEThermal lensFocal length75/300mm dual FOV lensFOV7.3°×5.9°/1.8°×1.5°F valueF2.3Lens controlE-zoom, e-focus (auto focus optional)IFOV0.4~0.1mradHD CameraSensor type1/1.8'' Progressive Scan CMOSCoding formatH.264/MJPEG/MPEG4Video resolution1080P, CIF, supporting three streamVideo bit rate32Kbps~ 16MbpsVideo frame rate1~ 25F/S (50Hz), 1~ 30F/S (60Hz)HD lensFocal length16.7~1000mmFOV25°~ 0.45°OtherDefog, Auto focus Support for optionalPan-tiltload40kgAnglePan: 0°~ 360°; Tilt: -45°~ +45°speedPan: 0.01°~ 45°/s; Tilt: 0.01°~ 30°/sPreset200Preset accuracy±0.1° (±0.05° optional)Auto cruise8 paths, 10 presets each pathAuto scan1 pathAnti-windGrade 12InterfacePower supplyDC30VNetwork interface1x10Base-T/100Base-TX, RJ45VideoRS485/RS422, BNC video outputEnvironment indicators temp.operation -25ºC~ +55ºC (-40ºC~ +65ºC optional), Storage -40ºC~ +65ºCProtection gradeIP66Power supplyPowerWide range power input AC90~305V to output DC30V/10A, anti-water power supplyConsumption≤180W (without heater); ≤230W(with heater)   3 Our Services (1)  We generally offer one year warranty. Extended warranty is also available.  (2) Life-long technical support. Professional technical team and salesperson help you with troubleshooting procedures any time when needed. (3) We accept OEM. (4) We offer customized product.    4 Company Introduction
