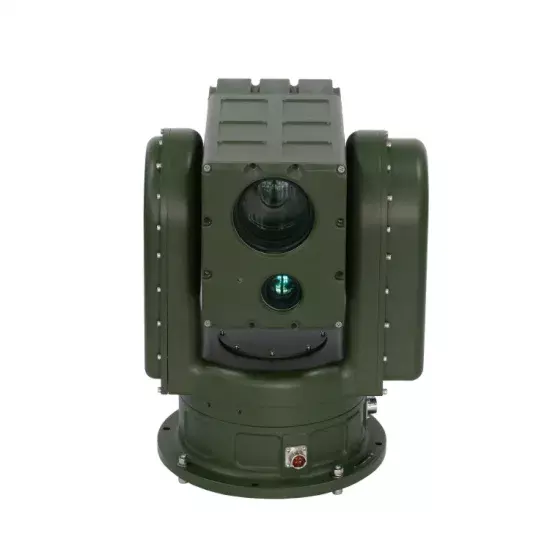

OEM Long Range Farm Security IR Laser PTZ Camera

Sensor CMOS HDMI Format 1080P Horizontal Resolution 420tvl Kind Autofocus Lens Certification CE, FCC, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition Effective Distance 1000 M Sensor Size 1/3 inch Remote Control With Remote Control Night Vision 1000 M Day Vision 2000 M Focal Length 10~320mm HD Camera Sensor CMOS Video Resolution 1080P Illuminator Power Consumption 8W Laser Wave Length 810nm Pantilt Preset 255 Total Pixels 2.1MP Lens Aperture F1.6~3.5 Coding Mode H.264/MPEG/Mjpeg Subtitle Overlay Station Logo, Date, Time Transport Package Wooden and Carton Case Specification 240mmx374mmx243mm Trademark CZVZ Origin China Production Capacity 100 Units / Month

Product Description

OEM Long Range Farm Security IR Laser PTZ Camera Product Features:   > Adopting laser illuminating system, far illuminating distance, wide illuminating range, can monitor in 0LUX completely black > Day and night low light megapixel color to black camera, day and night continuous monitoring > Auto white balance, auto gain control, auto exposure control > High performance video processing chip and H.264 high efficiency video code, providing millions of high definition video frame  > Dual stream function, small time delay, fully satisfying different network banwidth > Fully supporting ONVIF, GB/T28181 providing SDK, can dock with main monitoring platform in domestic and overseas > Capturing and videoing, supporting WEB browsing video, provide access to NVR platform to conduct parameter configuration and operation state management > Adopting high performance power supply program, wide voltage input, low power consumption, suitable for special power supplying mode such as solar power Specifications: Monitoring distanceNight vision1000metersDay vision2000metersCameraSensor1/2.8" Progressive Scan CMOSTotal pixels2.1 MPLens focal length10~320mmLens apertureF1.6~3.5Min illumination0.05Lux(color),0.01Lux(black and white)Electronic shutter speedAuto and manual adjustmentVideoing controlAuto gain control, auto white balance, auto backlightcompensation,supporting manual and auto day and night mode switchVideo coding     Coding modeH.264/MPEG/MJPEGVideo resolution1080P, CIFBit rate32Kbps~16MbpsFrame rate1~25F/S(50Hz),1~30F/S(60Hz)Subtitle overlayStation logo, date, timeImage adjustmentBrightness, contrast ratio, saturationProtocolTCP/IP,HTTP,DHCP,DNS,DDNS,RTP,RTSP,PPPoE,SMTP,NTP,UPnP,SNMP,FTP,802.1x,QoS,HTTPS,IPv6 (SIP,SRTP,)IlluminatorPower5wLens60x zooming laser lensWave length810nmIlluminating angle0.5°~30°,synchronous servo continuous adjustmentLaser homogenizationMCIC homogenization technologyPan-tiltAngleHorizontal 360°continuous rotation,pitching:-45°~+45°speedHorizontal 0.1°~20°/s,pitching 0.1°~12°/sPreset bitsMax 255Cruising function2pathsInterfaceNetwork interface1×10Base-T/100Base-TX,RJ45Power supply interface1×AC 24V socket, for external power supply adapterAudio interface1×Line In,1×Line OutAlarm interface1 switch input, 1switch outputEnvironment indicatorsWorking temp-25ºC~+55ºCStorage temp-40ºC~+65 ºCProtection gradeIP66Anti-vibration10~55Hz,2m/s2,0.75mmAnti-impact150m/s2,11msAnti-salt fogcontinuous spraying for 48 hours at PH 6.5-7.2, surface with no changesPower supplyWorking power supplyAC 24V±5% /2.5A,please use appendant power supplyDevice power consumption≤60WPhysical featuresSize508mm×320mm×308mmWeight20KgOthersApplication functionreal-time clock, supporting manually capturing image and manually videoingConfiguration and maintenanceSupporting configuration management and video browsing through WEB browser, providing access to NVR platform to conduct uniform parameter configuration and operating state management, supporting ONVIF2.0,GB28181            Gradienter                                                       Nitrogen Inlet                                              Nitrogen outlet   Package&Shipment:   Wooden / carton package means will be supplied to ensure the transport safety.  FAQ: 1. Q: Is your company manufacturer?           Yes, CZVZ is the thermal camera and laser camera manufacturer since year 2004. 2. Q: Can you supply OEM service?          Yes, CZVZ can do OEM products as customer's requirement. 3. Q: What is the product's lead time?          It is confirmed by the order quantity. 4. Q: What is the warranty?          It is generally 1 year warranty, extend warranty is available. 5. Q: How will the product be shipped?          For sample order, it will be shipped by DHL, FEDEX, UPS or TNT.          For bulk order, we can arrange the shipment as customer requirement. 6. Q: How about your after sale service?          Any problem about our product, you can contact with us at any time. Our team will supply technical service for you. Company Introduction: CZVZ company, which was founded in year 2004, is one of the largest manufaturer of long range thermal imaging camera and laser night vision camera, as well as a relying Academician serveillance Engineering Technology Research Center in China. CZVZ adheres to independent innovation, which developed the world's first laser night vision camera,  and the continuous zoom infrared thermal imaging technology has reached the international advanced standard level.  The laser night vision and infrared thermal imaging products have been widely used in nation defense, safe cities, railways, highways, forest fire, oil and other fields, achieved all-weather surveillance, provided technical support for the maintenance of national security and socal stability.The company photo:  The exhibition:   More Products, pls click the picture for detail information.                                Thermal Camera                                             HD Laser Night Vision Camera                             Dual Sensor Thermal Camera
