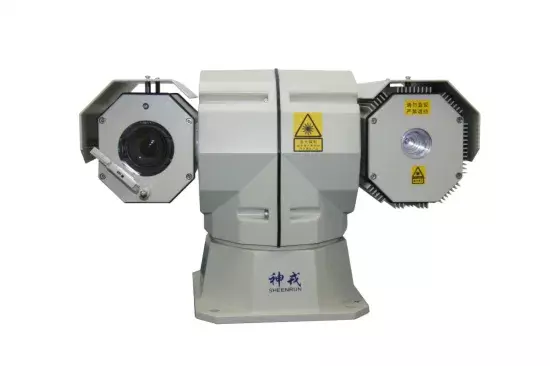

OEM 500m Long Range CCTV Analog IR Laser Infrared PTZ Surveillance Camera for Vehicle Mount

Model NO. SHR-HLV535 Sensor CMOS HDMI Format 1080I Horizontal Resolution 420tvl Kind Autofocus Lens Certification CE, FCC, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition Effective Distance 500 M Sensor Size 1/3 inch Remote Control With Remote Control Night Vision 500 M Day Vision 1000 M Laser Illuminator Power 5W Laser Illuminator Wave Length 810nm Even Light Mcic Visible Light Camera Sensor CMOS Visible Camera Total Pixel 2.1MP Visible Camera Lens Aperture F1.6`F4.4 Video Code Format H.264/H.265/Mjpeg Pantilt Presets 256 Cruising Function 6 Paths Transport Package Carton Case Package Specification 240mmx374mmx243mm Trademark CZVZ Origin China Production Capacity 100 Units / Month

Product Description

OEM 500m Long Range CCTV Analog IR Laser Infrared PTZ Surveillance Camera for Vehicle Mount Product Features:   Adopting near-infrared light source to fill light, good concealment, not easy to be detected Specialized high definition night vision laser homogenization technology, laser spot high brightness and good homogenization of laser spot, exquisite image with no noise  20* day and night low light 2 megapixels color to black camera, realizing day and night continuous monitoring Super large angle continuous servo synchronous zooming laser illuminator, MMA inside optical axis fine adjustment aligned technology High performance embedded processor, adopting high efficiency H264 compression algorithm, clear, real time and smooth video Supporting dual stream, small time delay, fully satisfying different network bandwidth Fully supporting ONVIF,GB/T28181, providing SDK, can docking with main monitoring platform home and abroad Supporting WEB browsing video, providing access to NVR platform to conduct uniform parameter configuration and operation state management Humanized design, high intelligence, supporting 3D locating, power off memory, zooming and speed changing Adopting high performance power supply program, wide voltage input, low power consumption, suitable for special power supply mode such as solar energy IP66 protection grade,2000V anti-lightning, adapting to all kinds of complex environment Professionally designed shell, artistic, light, firm, anti-high temp, anti-corrosion, water proof, anti-acid rain  Specifications: Monitoring distanceNight vision500metersDay vision1000metersCameraSensor1/2.8" Progressive Scan CMOSTotal pixels2.1 MPLens focal lengthf=4.3~129mm,30x optical zoomingLens apertureF1.6~4.4Min illumination0.05Lux(color),0.01Lux(black and white)Electronic shutter speedAuto and manual adjustmentVideoing controlAuto gain control, auto white balance, auto backlightcompensation,supporting manual and auto day and night mode switchVideo coding     Coding modeH.264/H.265/MJPEGVideo resolution1920x1080Bit rate64Kbps~4MbpsFrame rate1~25F/S(50Hz),1~30F/S(60Hz)Subtitle overlayStation logo, date, timeImage adjustmentBrightness, contrast ratio, saturationProtocolTCP/IP,HTTP,DHCP,DNS,DDNS,RTP,RTSP,PPPoE,SMTP,NTP,UPnP,SNMP,FTP,802.1x,QoS,HTTPS,IPv6 (SIP,SRTP,)IlluminatorPower5wWave length810nmIlluminating angle1°~20°,synchronous servo continuous adjustmentLaser homogenizationMCIC homogenization technologyPan-tiltAngleHorizontal 360°continuous rotation,pitching:-90°~+90°speedHorizontal 0°~80°/s,pitching 0°~60°/sPreset bitsMax 256Cruising function6 pathsInterfaceNetwork interface1×10Base-T/100Base-TX,RJ45Power supply interface1×AC 24V socket, for external power supply adapterAudio interface1×Line In,1×Line OutAlarm interface1 switch input, 1switch outputEnvironment indicatorsWorking temp-25ºC~+55ºCStorage temp-40ºC~+65 ºCProtection gradeIP66Anti-vibration10~55Hz,2m/s2,0.75mmAnti-impact150m/s2,11msAnti-salt fogcontinuous spraying for 48 hours at PH 6.5-7.2, surface with no changesPower supplyWorking power supplyAC 24V±5% /2.5A,please use appendant power supplyDevice power consumption≤60WPhysical featuresSize240mm×374mm×243mmWeight8KgOthersApplication functionreal-time clock, supporting manually capturing image and manually videoingConfiguration and maintenanceSupporting configuration management and video browsing through WEB browser, providing access to NVR platform to conduct uniform parameter configuration and operating state management, supporting ONVIF2.0,GB28181

Customized Service:



> Product Color           > Location Control          > Line out Position             > Installation Method

Laser Night Vision Camera Application:   Packaging & Shipping

FAQ

Q: 1. Is sample order available?Yes, we can accept the sample order for testing. Q: 2. Do you have the MOQ requirement?The MOQ is 1 piece. Q: 3. Do you support technical supporting for the installation and operation?Yes, we have professional technician to supply solution for you. Q: 4. What is the lead time?It depends on the order quantity. Q: 5. How to ship the products?For small order, it's usually shipped by express, like FEDEX, DHL, UPS or TNT etc. For bulk order, it can be shipped as customer's need. Q: 6.What is the warranty for the product?The warranty is 1 year. Q: 7. How about your after sale service?Any problem about our product, please contact with us at any time. Q: 8. Do you accept the OEM product?Yes, we can produce the product as customer requirement.

Company Profile

CZVZ company, which was founded in year 2004, is one of the largest manufaturer of long range thermal imaging camera and laser night vision camera, as well as a relying Academician serveillance Engineering Technology Research Center in China. CZVZ adheres to independent innovation, which developed the world's first laser night vision camera, and the continuous zoom infrared thermal imaging technology has reached the international advanced standard level. The laser night vision and infrared thermal imaging products have been widely used in nation defense, safe cities, railways, highways, forest fire, oil and other fields, achieved all-weather surveillance, provided technical support for the maintenance of national security and socal stability.Company Photos
