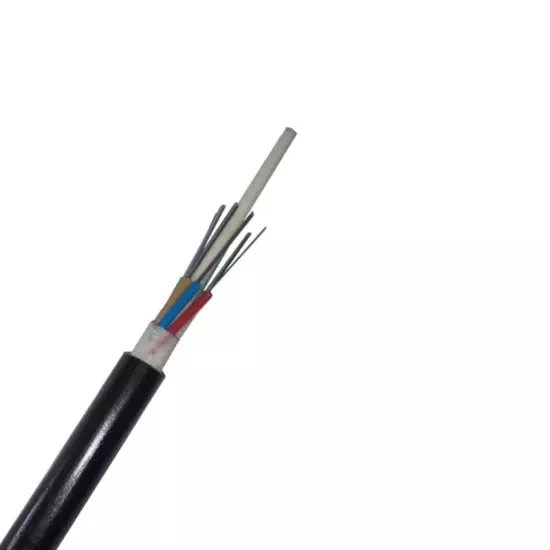

Non-Metallic Optical Fiber Cable, 12/24/48/96 Core Singlemode Fiber Optic Cable PE Jacket

Model NO. G1A9-512 Material Shape Round Wire Allowed Lateral Pressure 100(N/100mm)<1000(N/100mm) Allowed Tensile Strength 100N<1000N Core Multicore Certification RoHS, CE, ISO9001 Brand CZVZ Sheath Material PE Cable Structure Non-Metallic Cable Design Stranded Loose Tube Fiber Core up to 144 Cores Fiber Type Sm G652D Jacket PE Suitable Aerial, Duct OEM Yes MOQ 1000m Small Order Accepted Transport Package Polywooden Drum Trademark CZVZ Origin China HS Code 85447000

Product Description



Product Description

CZVZ Fiber optic cable are designed for outside plant(OSP) applications and intended for use in communication network connects requiring cable to be installed within duct systems or lashed to aerial messenger wire structures. The loose tube design provides stable performance over a wide temperature range and is compatible with any telecommunications-grade optical fiber. It is lightweight and reduced-diameter.

Features

|   Up to144 cores |   Fiber code: GYFTY |   Stranded loose tube,Non-armored design |   Lightweight & Reduced-Diameter |   FRP strength memeber |   Good mechanical performance

Application

|   Widely used in FTTH access network. |   Telecommunication Networks |   CCTV Networks |   Data communications Networks |   Local Area Networks

Product Parameters    Fiber Count2-144 coresFiber Coloring4C:blue/orange/green/ natural 6C:blue/orange/green/brown/grey / natural8C:blue/orange/green/brown/grey / natural/red/black12C:blue/orange/green/brown/grey/natural/red/black/yellow/purple/pink/Aqua24C:same as 12C for one set of 12 colors and dots on another set of 12 colorsLoose Tube MaterialPBTFiber in Tube2-12 fiberFilling Filling compoundRipcords2Cable strength  FRP strength memeber SheathPE Cable Diameter9.8-10.5mm

Fiber Type

Singlemode - G652.D

Wavelength

1310nm/1550nm

Attenuation(dB/km)

1310nm≤0.34

1383nm ≤0.34

1550nm ≤0.20

1625nm ≤0.24

Zero Dispersion Wavelength

1310-1324nm

Fiber Cutoff wavelength(nm)

≤1260

Cladding diameter(um)

125±1.0

Cladding material

SiO2

Cladding non-circularity(%)

≤1.0

Coating/cladding concertricity error(um)

≤12.0

Coating diameter(um)

245±7

Core diameter(um)

9±2.5

Core non-circularity(%)

≤6.0

Bending Diameter(mm)
