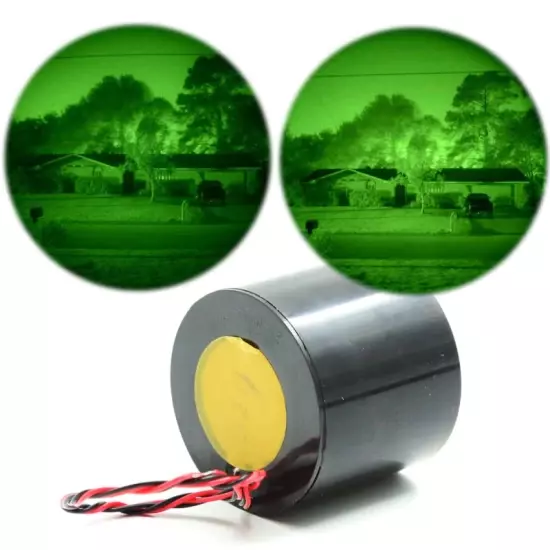

Mx10130 Mx10160 Gen2+ Gen 3 White Green Phosphor Optical Lenses Image Intensifier Tube for Night Vision Device

Model NO. DA-Image Intensifier Tube Style Head-mounted Structure Binocular Kind Image Intensifier Night Vision Operation Principle Low-light Night Vision Shell Material Plastic Customized Customized Fom 1600/1700 Snr 25 Magnification 1X Resolution 64 Lp/mm Fov 40 Degree Electric Connection End Lead/Contacts Sensitivity (2856K) 800 μa/Lm Image Intensifier Tube Gen2+ / Gen 3 Waterproof IP65(IP67 Optional) Battery Type Lithium Batteries Cr123X1 Weight 80g Brand Name CZVZ Model Number Mx10160 Name Mx 10160 Figure of Merit 1600 Transport Package Safety Box Provided Specification 14X8X10 cm Trademark DA-Image Intensifier Tube Origin China HS Code 9005809000 Production Capacity 200PCS/Month

Product Description

Mx10130 Mx10160 Gen2+ Gen 3 White Green Phosphor Optical Lenses Image Intensifier Tube For Night Vision Device

Specification

  PRODUCT      SPECIFICATIONSFOM1400+1600+1800+2000+Sensitivity  (μA/lm)700+750+/850+1000+1000+SNR23+25+28+28+Resolution(lp/mm)64+64+64-7264-72Photo CathodeS25+S25+S25RS25ROperating voltage (V)2.2-3.42.2-3.42.2-3.42.2-3.4Operating current (mA)15252525Luminance gain  (cd/m²/lx)8000-120009000-1200010000-2000010000-20000Maximum output brightness  (cd/m²)4~84~84~104~10EBI  (μlx)≤0.25≤0.25≤0.25≤0.25Uniformity of luminance(2856K)3:13:13:13:1Cathode effective diameter (mm)≥17.5≥17.5≥17.5≥17.5Power supplyNon Auto-gate/Auto-gateNon Auto-gate/Auto-gateAuto-gateAuto-gateFluorescent powderP22/P43/P45P43/P45P43/P45P43/P45Weight (g)≤80≤80≤80≤80Power dissipation (mW)33-5155-8555-8555-85

REAL FOM ValueFOM value we provide is the real figure of merit, FOM1600 is FOM1600, FOM 2000 is FOM2000, never and ever lies. See below test report from NNVT , it's real Gen 3rd, FOM=60*30.98=FOM1858

Auto-gating Available

Autogating is an extremely critical feature for IITs' life that dynamically and automatically controls the bright into the image intensifier, so that auto-gating function can well help IITs avoid damage due to brightlight.

In Stock!!!CZVZ has over 300 pcs Gen 2+ image intensifier tubes and over 100 pcs Gen 3 Image intensifier tubes in stock now, so you can not only get your tubes very fast, but also receive your PVS-14, PVS-31and PVS-7 in a short time!

Company Information

  Definitely CZVZ is a manufacturer, who is pretty professional in Research,delelopment and producing Night vision and thermal imaging devices.Warmest welcome you visit our factory and have a face-to-face discussion on your unique discussion, the more difficult project, we love more.· Production Department

· International Exhibitions CZVZ attended many international exhibitions in different countries, like Malaysia, Indonesia,Thailand, Turkey, Azerbaijan,etc. In Sep 24-26, we will attend Azerbaijan International DEFENCE EXHIBITION ,Booth Number is 5A011;In Sep 22-25,we will also attend SAHA EXPO 2024 International Defence & Aerospace Exhibition in Turkey; y Profileany Profile
