Mx10130 Gen2+ Gen 3 Green P43 White P45 16mm 18mm Night Vsion Image Intensifier Tubes Mx10160 for Pvs14

Model NO. DA-Image Intensifier Tube Style Head-mounted Structure Binocular Kind Image Intensifier Night Vision Operation Principle Low-light Night Vision Shell Material Plastic Customized Customized Fom 1600/1700 Snr 25 Magnification 1X Resolution 64 Lp/mm Fov 40 Degree Electric Connection End Lead/Contacts Sensitivity (2856K) 800 μa/Lm Image Intensifier Tube Gen2+ / Gen 3 Waterproof IP65(IP67 Optional) Battery Type Lithium Batteries Cr123X1 Weight 80g Brand Name CZVZ Model Number Mx10160 Name Mx 10160 Figure of Merit 1600 Transport Package Safety Box Provided Specification 14X8X10 cm Trademark DA-Image Intensifier Tube Origin China HS Code 9005809000 Production Capacity 200PCS/Month

Product Description

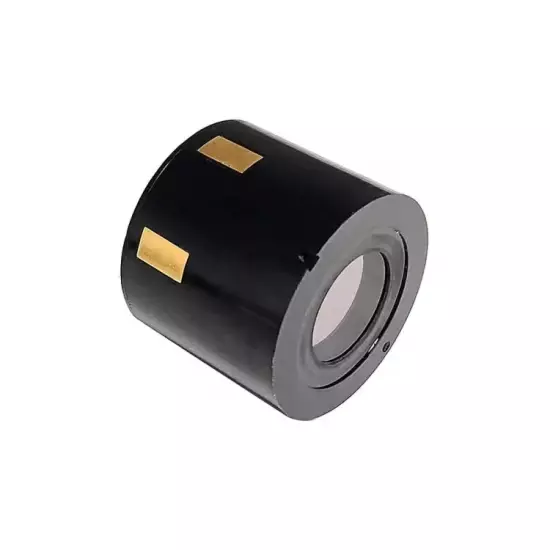

MX10130 Gen2+ Gen 3 Green P43 White P45 16mm 18mm Night Vsion Image Intensifier Tubes MX10160 for PVS14

Product Description

  Compared with the Gen2+ image intensifier tube, the Gen3 image intensifier tube uses GaAs photocathode. GaAs is more efficient in converting photons into electrons, can provide better resolution and sensitivity, and can provide better observation effects in darker environments.

  Performance ParameterNV3-6NV3-7NV3-8NV3-9Resolution (lp/mm)Limit Resolution≥61≥64≥64≥64Strong Light Resolution (@100kx)≥5≥5≥5≥5Sensitivity2856K Light Sensitivity μA/lm≥1800≥1800≥2000≥2000880 Radiation Sensitivity mA/W≥95≥95≥95≥95Signal-to-Noise Ratio≥28≥28≥28≥30Luminance Gain (cd/m2/lx)11000-2000011000-2000012000-2500012000-25000E.B.I(x10lx)≤2.5≤2.5≤2.5≤2.5Output Brightness (cd/m2@1lx-10lx)4-124-124-126-12Brightness Uniformity (@2856K)≤3:1≤3:1≤3:1≤3:1   2.5 lp/mm88%89%89%89%MTF7.5lp/mm72%74%74%74%15 lp/mm54%60%60%60%25 lp/mm30%35%35%35%Working Life(hours)7500100001000010000Operating Voltage (V)2.2-3.42.2-3.42.2-3.42.2-3.4Weight (g)≤80≤80≤80≤80Small High-voltage Power SupplyDC high voltage power supply or automatic gated power supplyEffective Cathode Diameter (mm)≥17.5Electric ConnectionEnd lead/ContactsFluorescent Screen TypeP43/P45 Specification

REAL FOM ValueFOM value we provide is the real figure of merit, FOM1600 is FOM1600, FOM 2000 is FOM2000, never and ever lies. See below test report from NNVT , it's real Gen 3rd, FOM=60*30.98=FOM1858

Auto-gating Available

Autogating is an extremely critical feature for IITs' life that dynamically and automatically controls the bright into the image intensifier, so that auto-gating function can well help IITs avoid damage due to brightlight.

In Stock!!!CZVZ has over 300 pcs Gen 2+ image intensifier tubes and over 100 pcs Gen 3 Image intensifier tubes in stock now, so you can not only get your tubes very fast, but also receive your PVS-14, PVS-31and PVS-7 in a short time!
