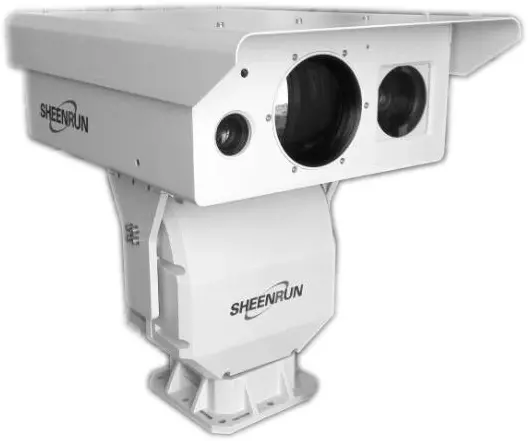

Multi-Sensor Long Range Daynight Laser Thermal Camera

Model NO. WHLV3020ATIR185R Kind Autofocus Lens Certification CE, FCC, RoHS, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition, Auto BLC Effective Distance ≧30m Remote Control With Remote Control Three Sensor Laser/Thermal/Day Camera Multi-Function Night Vision/Thermal Vision/Day Vision Transport Package Wooden Case/Carton Specification CE, FCC Trademark SHEENRUN Origin Shandong, China Production Capacity 50

Product Description

Product Features

*Three spectral imaging design, with advantage of visible light imaging clearly, thermal imaging camera detecting far and laser night vision range large

*Adopting continuous zooming thermal imaging technology, imaging clearly, can search in large area and recognize objectives in long distance

*Infrared detector with high temp sensitivity, with min temp resolution of 50mK

*Synchronous zooming laser illuminating system, long illuminating distance, large illuminating range, realizing monitoring in 0Lux complete black

*Day and night low illuminance 2 megapixels color to black camera, day and night continuous monitoring

*MCIC multi-tube core fusion mixed mode light homogenization technology, no speckle and dark ring, high edge definition

*Supporting fog penetration, backlight compensation, multistage wide dynamic

*Optional auto focusing function, realizing multiple focusing mode and triggering mode

*Optional thermal imaging camera presetting function, remembering FOV of each preset bit, enhancing working efficiency

*3D locating function, can realize frame selection magnifying function and clicking to center function, reducing operating difficulty, enhancing device usability

*External MMA fine adjustment mechanism, no need to disassemble to complete laser alignment adjustment

*Professionally designed shell, artistic, light, firm, anti-high temp, anti-corrosion, water proof, anti-acid rain

Specification Operating distanceVisible lightNight vision3000mDay vision5000mThermal imagingobjecthuman(1.8m×0.5m)Vehicle(2.3×2.3Detection distance4320m11880mRecognition distance1080m2970mIdentification distance540m1440mHigh definition lensFocal lens12.5~750mmFOV0.5°~28.7°Double lenssupporting(optional)Auto focusingsupporting(optional)Fog penetrationsupporting(optional)CameraSensor type1/1.8"Progressive Scan CMOSCoding mode   H.264/MJPEG/MPEG4Video resolution1080P,CIF,supporting three streamVideo bit rate32Kbps~16MbpsVideo frame rate1~25f/s(50Hz),1~30f/s(60Hz)IlluminatorIlluminating lens60* zooming laser telephoto lensPower20WWave length810nmIlluminating angle0.3°~18°continuous changeLight  homogenizationMCIC multi-tube core fusion mixed mode light homogenization technologyInfrared lensFocal length36~180mmFOV2.5°×2.0°~12.7°×10.2°F valueF1.0~F1.2Lens controlelectric zooming, electric focusing(auto focusing optional)DetectorDetector typeuncooled microbolometer focal plane array(VOx)Effective pixels324×256Spectral range8~14μmTemp sensitivity≤[email protected],300KFrame rate25HzImage processingDDE, pseudo colorPan-tiltCarrying capacity50kg(top load)AngleHorizontal 360°continuous rotation,pitching: -60°~+20°speedHorizontal 0.01°~12°/s,pitching 0.01°~8°/sPreset bits255Cruising8 paths,10 bits each pathAnti-lightning2000VinterfacePower supply interfaceAC24VNetwork interface1×10Base-T/100Base-TX,RJ45Other interfacesRS422 communication,BNC video outputEnvironment indicatorsWorking temp-25ºC~+55ºCStorage temp-40ºC~+65ºCProtection gradeIP66Power supplyWhole machine power supplyAC24V±10%,appendant AC220V~AC24V/8A water proof power supplyWhole machine power consumption≤170WPhysical featuresWhole machine weight45kgInstallation methodOutdoor pedestal mounting Other features                 *Power supply can be for customer require.  *PTZ function,heater optional  *Interface: RS485/422/232/Pelco D  OptionalThermal EffectApplicationOur Services(1)  We generally offer one year warranty. Extended warranty is also available. (2) Life-long technical support. Professional technical team and salesperson help you with troubleshooting procedures any time when needed.(3) We accept OEM.(4) We offer customized product.   Company IntroductionChina CZVZ Optics & Electronics Co., Ltd, which was founded in 2004, is a leading night vision equipment and rugged information equipment supplier, CZVZ adheres to independent innovation, developed the world's first laser night vision camera and the first uncooled continuous zoom infrared thermal imaging camera with independent intellectual property rights, its synchronous zoom laser night vision technology and continuous zoom thermal imaging technology have reached international advanced standard level, possess the world's largest market share in laser night vision market.
