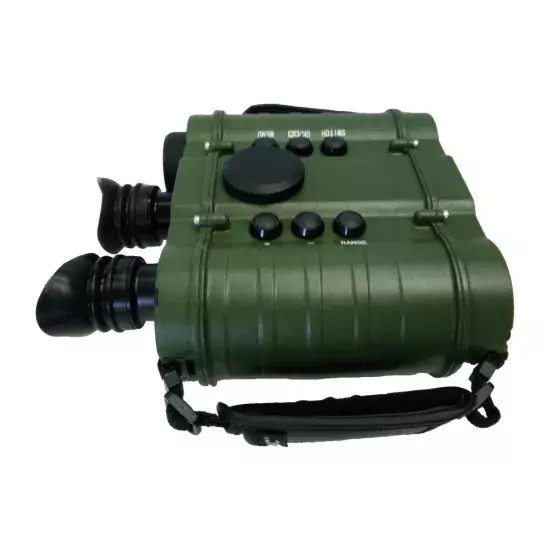

Multisensor Handheld Thermal Camera with Laser Range Finder & GPS & Compass

Model NO. MIR1000 Sensor Vox HDMI Format PAL Video Output Horizontal Resolution 324X 256 Resolution Kind Auto / Manual Certification CE, FCC Feature Waterproof / Weatherproof Effective Distance 0-4km Sensor Size Same as Lens Sizse Remote Control With Remote Control Maximum Detection Distance 1.2km for Human, 3.3km for Vehicle Maximum Recognition Distance 300m for Human, 820m for Vehicle Focal Length 50mm Color Black Protection Grade IP67 Transport Package Aluminum Alloy Box Specification CE FCC Trademark CZVZ Origin Shandong Province, China Production Capacity 50 Units / Month

Product Description

I. Product Features Resolution 324×256 uncooled microbolometer focal plane array detector, vox material 25µm pixel,exquisite image,tiny object observed more clearly,longer detection distance High sensitivity, temp resolution up to 50mK, frame rate 25 HZ 50mm infrared lens, electric focusing, clear image, homogeneous picture Visible light camera, 6.5* zooming, focal length 35mm Image denoising process, adding digital image detail enhancing function (DDE), output hot white/hot black/pseudo color image Binocular OLED display, imaging clearly, observing conveniently, good concealment Analog video signal output, external DC12V power supply, built in lithium battery Protection grade IP67, light magnesium alloy, inside nitrogen, water proof, dust proof, anti-impact II. Technical Data Observing distanceobjecthuman(1.8m×0.5m)vehicle(2.3 m×2.3 m)Detection distance1200m3300mRecognition distance300m820mThermal imagingEffective pixels324×256Spectral range8~14μmTemp sensitivity≤[email protected],300KFocal length50mm/F0.8FOV9.1°×7.3°Focusing methodElectric focusingVisible light cameraZooming×6.5FOV7.8°Prime lens35mmImage displayDisplayOLEDFrame rate25HzLocationprecision10m(rms)SatelliteBD-2/GPS,speed update 1sLaser rangingLaser typeSemiconductor lasers,wave length 1550nmDetection range20m~2.5Km(2.3×2.3 m vehicle)Ranging precision±2m(within 1Km),±5m(1Km ~2.5Km)Electronic compassAngle measurement precision±0.5°(dip angle 0°)Storagecapacity10000PCS images,30 hours videoInterfacePower supply interfaceDC12VOther interfacesvideo output PAL,data interface USBPower supplyWhole machine power supplyDC12V,built in lithium battery ,working time 3 hoursWhole machine power consumption5WEnvironment indicatorsWorking temp-20ºC~+55ºCProtection gradeIP67Physical featuresWeight≤1.7Kgsize223 mm×206mm×82mm III. Effect demo IV. Our Services (1)  We generally offer one year warranty. Extended warranty is also available.  (2) Life-long technical support. Professional technical team and salesperson help you with troubleshooting procedures any time when needed. (3) We accept OEM. (4) We offer customized product.    V. Factory Tour
