Multi Sensor HD Long Range Thermal Imaging Night Vision Camera for Security

Detail:
Model NO. SHR-WHLV4020HTIR210R-LRF10 Sensor CMOS HDMI Format 1080P Horizontal Resolution 650tvl Kind Autofocus Lens Certification CE, FCC, CCC, RoHS, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition Effective Distance 10km+ Sensor Size 1/4 inch Remote Control With Remote Control Night Vision 5000 M Day Vision 10000 M Visible Light Camera Lens Focal Length 16.7~100mm, 2X Extender Optional Camera Sensor CMOS Power 20W Wave Length 810nm Even Light Mcic Laser Lens Zoom Mode 3camc Gearing Mode, High Coaxiality Fog Penetration Support Auto Iris DC Drive Transport Package Standard Carton Package Specification 200mmx196mmx97mm Trademark Czvz Origin China Production Capacity 100 Units / Month Packaging & Delivery Package Size 70.00cm * 50.00cm * 80.00cm Package Gross Weight 50.000kg
Price: $40,000.00
Why Can We Provide this Competitive Price?
With digital management and bulk purchases from original manufacturers and authorized suppliers globally, Router-switch.com guarantees quality and authenticity at a competitive price.
Coupon
Up to $80 Coupons
Get Now
$10.00
Order Over $100
RS10
$20.00
Order Over $2000
RSTW
$50.00
Order Over $5000
RSFI
$80.00
Order Over $8000
RSEI
Availability: In Stock
$ 40,000.00 In stock 3 Years
3 years warranty
Quote now, save up to 8%.
United States
Payment:
  • Pay by wire transfer.
  • Pay with your paypal.
  • Pay with your webmoney.
  • Pay with your onafriq.
  • Pay with your Visa credit card.
  • Pay with your Mastercard credit card.
  • Pay with your Discover Card.
  • Pay by Western Union.
More
Support:
TZS, XAF, TZS payment.
  • Genuine Guarantee
  • Price Protection
  • Bulk Order Rebate
  • 100% Moneyback

Multi Sensor HD Long Range Thermal Imaging Night Vision Camera for Security

Price: $40,000.00
-
+
Overview
Model NO. SHR-WHLV4020HTIR210R-LRF10 Sensor CMOS HDMI Format 1080P Horizontal Resolution 650tvl Kind Autofocus Lens Certification CE, FCC, CCC, RoHS, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition Effective Distance 10km+ Sensor Size 1/4 inch Remote Control With Remote Control Night Vision 5000 M Day Vision 10000 M Visible Light Camera Lens Focal Length 16.7~100mm, 2X Extender Optional Camera Sensor CMOS Power 20W Wave Length 810nm Even Light Mcic Laser Lens Zoom Mode 3camc Gearing Mode, High Coaxiality Fog Penetration Support Auto Iris DC Drive Transport Package Standard Carton Package Specification 200mmx196mmx97mm Trademark CZVZ Origin China Production Capacity 100 Units / Month

Packaging & Delivery

Package Size 70.00cm * 50.00cm * 80.00cm Package Gross Weight 50.000kg

Product Description

Multi Sensor HD long Range Thermal Imaging Night Vision Camera for SecurityMulti Sensor HD Long Range Thermal Imaging Night Vision Camera for Security Product Description



Product Features:

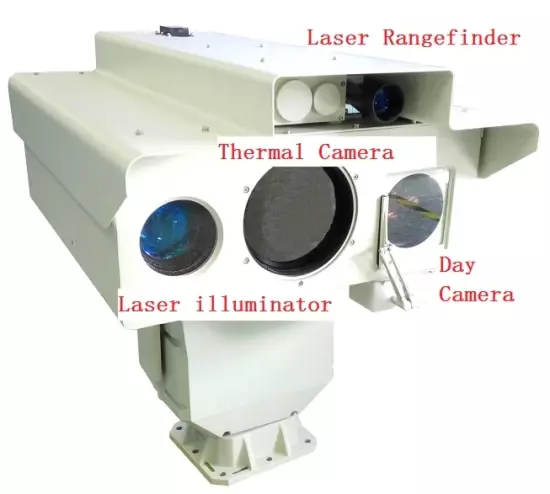

Long range visible light camera and thermal imaging camera integrating design, realizing day and night monitoring

Universal, variable speed pantilt, realizing all-around, no-blind-corner monitoring and high precision location

Featured laser night vision technology, see target clearly at night in 0 Lux environment

Laser rangefinder, GPS optional

Integrated intelligent temperature controlling system, making sure electronic device inside the housing work normally

Passive infrared thermal imaging, good concealment, not easy to be perceived

Professionally designed housing, artistic, light, solid, high temperature resistant, anti-corrosion, water-proof, anti-acid rain

Low power consumption, little heat generation, stable working performance

Specifications:



DistanceVisible light CameraDay vision 8~15km, night vision 4~5km (object: human)Thermal CameraTargetHuman(1.8m×0.5m)Vehicle (2.4m×2.4m)Detection6440m18400mRecognition1610m4600mIdentification800m2300mVisible light camera  Focal length16.7~1000mmFOV0.45°~25°Auto irisDC driveFog penetratingSupportingAuto focusSupportingWiperSupportingSensor1/1.8''Progressive Scan CMOSColor modeICR double filter, day&night switchShutter speedAuto and manual adjustmentCamera controlAuto gain control, auto white balance, supporting manual and auto day & night mode switchFog penetratingOpen /Close is optionalWDROpen/Close is optionalBack focus fine adjustmentSupporting, can remotely debugNoise reduction3D digital noise reductionCode formatH.264/MJPEG/MPEG4Video resolution1080p, supporting three streamVideo code rate32Kbps~16MbpsVideo frame rate50Hz:25fps(1920×1080),25fps (1280×720) 60Hz:30fps(1920×1080),30fps (1280×720)Title overlayLogo, date, timeImage adjustmentBrightness, contrast, saturation, sharpness etc.Thermal cameraDetector TypeUncooled microbolometer Focal array detector, VOxPixel640×512Spectrum Range8~14μmNETD≤50mK@F1.0, 300KFocal lenth20~230mm,11.5x optical zoomFOV2.7°×2.1°~30.4°×24.5°IFOV0.07~0.85mradLens controlElectronic zoom/focus, auto focusImage processDDE, 10 Pseudo ColorLaser IlluminatorFocal lenth60mmHD focus laser lensCoatingMultilayer near-infrared coatingAxis adjustingOutside MMAPower20WWavelength810/808Lighting angle0.5°~27° continuous zoomLaser switchAuto/manualLaser range finder(Optional)Max range10km (In the mode of mid-latitudes atmosphere,T=20ºC, relative humidity 70%,1 standard atmospheric pressure, horizontal visibility>23.5km)Max range10000mmRange(3meter*3meter)≥6000mLaser wavelength1570nmMin range50mRepetition frequency1HzPrecision±1mBeam Divergence0.6~0.8mradPantiltPan angle360°, continuous rotationTilt angle-60°~+20°Pan speed0.1°~ 12°/sTilt speed0.1°~8°/sPreset128Preset precision±0.1°Auto cruise2 path, 64 presets each pathAuto line scan1 pathCommunication protocolPelco-D,Pelco-P optionalBit rate2400/4800/9600/19200 bps optionalInterfacePowerDC30VInternet1×10Base-T/100Base-TX, RJ45 interfaceEnvironmentOperation temperature-25ºC~+55ºCStorage temperature-40ºC~+65ºCInternational protectionIP66Salt fog proofPH6.5~7.2, Continuously spraying 48 hoursPowerWhole power supplyDC30V±1.0%, accompanied with 220VAC~30VDC wide range power adapterPower consumption≤180W
Application:  Safe city, forest fire-proof, high attitude monitoring,  railway, harbor, oilfield, freeway and border defense etc.Multi Sensor HD Long Range Thermal Imaging Night Vision Camera for Security FAQ



FAQ: 1. Q: Is your company manufacturer?           Yes, CZVZ is the thermal camera and laser camera manufacturer since year 2004. 2. Q: Can you supply OEM service?          Yes, CZVZ can do OEM products as customer's requirement. 3. Q: What is the product's lead time?          It is confirmed by the order quantity. 4. Q: What is the warranty?          It is generally 1 year warranty, extend warranty is available. 5. Q: How will the product be shipped?          For sample order, it will be shipped by DHL, FEDEX, UPS or TNT.          For bulk order, we can arrange the shipment as customer requirement. 6. Q: How about your after sale service?          Any problem about our product, you can contact with us at any time. Our team will supply technical service for you.   Company Profile



Company Introduction: CZVZ company, which was founded in year 2004, is one of the largest manufaturer of long range thermal imaging camera and laser night vision camera, as well as a relying Academician serveillance Engineering Technology Research Center in China. CZVZ adheres to independent innovation, which developed the world's first laser night vision camera,  and the continuous zoom infrared thermal imaging technology has reached the international advanced standard level.  The laser night vision and infrared thermal imaging products have been widely used in nation defense, safe cities, railways, highways, forest fire, oil and other fields, achieved all-weather surveillance, provided technical support for the maintenance of national security and socal stability.The company photo: Multi Sensor HD Long Range Thermal Imaging Night Vision Camera for SecurityCertificate:Multi Sensor HD Long Range Thermal Imaging Night Vision Camera for Security
Specification

Multi Sensor HD Long Range Thermal Imaging Night Vision Camera for Security Specification

Model NO. SHR-WHLV4020HTIR210R-LRF10 Sensor CMOS HDMI Format 1080P Horizontal Resolution 650tvl Kind Autofocus Lens Certification CE, FCC, CCC, RoHS, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition Effective Distance 10km+ Sensor Size 1/4 inch Remote Control With Remote Control Night Vision 5000 M Day Vision 10000 M Visible Light Camera Lens Focal Length 16.7~100mm, 2X Extender Optional Camera Sensor CMOS Power 20W Wave Length 810nm Even Light Mcic Laser Lens Zoom Mode 3camc Gearing Mode, High Coaxiality Fog Penetration Support Auto Iris DC Drive Transport Package Standard Carton Package Specification 200mmx196mmx97mm Trademark Czvz Origin China Production Capacity 100 Units / Month Packaging & Delivery Package Size 70.00cm * 50.00cm * 80.00cm Package Gross Weight 50.000kg
