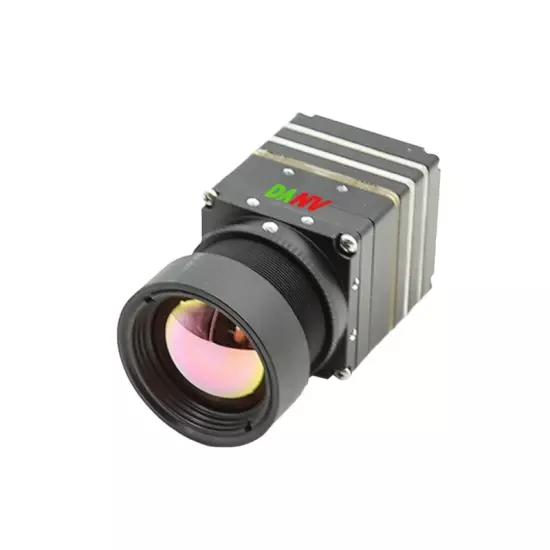

Mini Uncooled Infrared Thermal Image Camera Module Core Sm567-6

Model NO. DA-SM567-6 Production Process Integration Material Semiconductor Material IP Rating IP67 Certification CE Customized Customized Product Type Mini Thermal Camera Core Resolution 640X480px Wavelength Response Range 8-14um Frame Rate 50Hz Purpose Integrated with Different System Polarity White/ Black/Color Sensitivity 30mk Anti Glare Yes Non-Uniformity Correction Self-Adapting Calibration Fpa Formal/ Pixel Pitch 640*480px @ 17μm Lens Optical 12mm, 19mm, 35 mm, 40 mm, 50 mm, 75 mm, 10 Transport Package Safety Box Specification 33g Trademark CZVZ Origin Shaanxi HS Code 9005809000 Production Capacity 1000PCS/Month

Product Description

Product Description



Shutter 640x480px NTED less 20mk LWIR thermal imaging sensor camera module   1.HD mini shutter 2.640x480px@17µm pitch Amorphous Silicon uncooled detector. 3.Compact design LWIR thermal imaging sensor camera module      We provide LWIR (Long-wave infrared) camera cores for specialized imaging applications requiring detection of reflected radiation, including counter-UAS, mapping and precision agriculture!



Regular models and mini models can be customized        1.Small, light, and powerful. 2.Different lens can be customized 3.Different imaging color modes available 4.Smaller, lighter, more affordable optics     OEM/ODM welcomed!Pls contact our professional tech team directly~ For drones, security or fire fighting     Competitive price and flexible integration options 1. The interface can becustomized, USB/RJ45/HDMI/Camera Link,etc 2. Lightest in weight, module excluding lens only 12g Interface of Mini thermal imaging core       Shaanxi CZVZ Protective Technology Co., Ltd.is a leading manufacturer and developer     As a professional and trustable manufacturer, our advanced equipment! Professsional research& D team and hardwroking workersprovide you best solution in Gen2+/Gen3 Night Vision Devices, Thermal Imaging Devices, warmest welcome you visit our factory. Welcome to Join us on a journey where R&D ,innovation, precision, and reliability converge to redefine what is possible in nighttime vision.   Professional Manufacturer IRD is! Welcome you send inquiry or visit our factory for checking. Provide the best solution for you! Professional R&D design engineer team and advanced equipment!   1.3500+ square meter workshop 2.Professional Engineers and workers 3.2000 pcs production capacity 4.300+ workers 5.Quality Guaranteed Stock Available !Support OEM ODM customization !Fast delivery !Cheaper price        Warmest welcome you face-to-face explore our diverse range of products, from thermal maging devices to precision measurement instruments! Participate in International Exhibitions   We go abroad to attend International Exhibitions every year!   Looking forward to meeting you at the exhibition!

Product Parameters

SPECIFICATIONItemDA-SM567-3DA-SM567-6Detector PerformanceTypeUncooled Asi FPA DetectorFPA Formal/ Pixel Pitch384*288px@ 17μm640*480px @ 17μmSentivityNETD<30mk @ f/1.0 300kFrame Rate50HzSpectral Range8~14μmImage ProcessingNon-unifromity CorrectionSelf-adaption CalibrationTime to Image<3sImage EnhancementDDEImage Display Resolution640*480pxFrame Rate50HzLensOptical 12mm, 19mm, 35 mm, 40 mm, 50 mm, 75 mm, 100 mmDispaly ControlModesWhite hot; Black hot; (Optical colorful)Image Zoomx2, x4 digital zoomBrightnessAuto/ManualContrastAuto/ManualImage ReversalHorizontal/VerticalCrosshairOne or moreAnalogue VideoYesPowerOperation Voltage RangeDC: +2.5V~+5.5VTypicalDC 3.7VPower Consumption<0.9 WReverse ProtectionYesOver/Under Voltage ProtectionYesEnvironment ParametersOperation Temperature RangeCommercial: -20ºC~+60ºC;  Special Purpose: -40ºC~+60ºCStorage Temperature Range-45ºC~+65ºCHumidity5%~95% non-condensingAnti-vibration and ShockGJB 150-16 2.3.1;  GJB 150-18 T7 100g/6msTemperature Shock-5ºC/min (-40ºC~+60ºC)Physical AttributesWeight (excludes lens)12g33gModule Size20*20 mm (only PCB)24*24 mm (only PCB)External Power SupplyYesKeyboardYesDigital Video Output14 Bit (50Hz) / BT.656 (customized) CommunicationRS232 or RS485

FAQ

Q: Are you manufacturer or trader?

A: CZVZ is a professional manufacturer of night vision, thermal vision and other photoelectric products.   Q: What products can you provide?A: We can provide high-quality night vision products, infrared thermal imaging devices, Gen2+/Gen3 image intensifier tubes, infrared detectors, other optoelectronic products and core accessories, as your requirement. Q:What is the lead time of your products? A: It depends on the order quantity and the season you place the order. Usually we can ship within 3-5 days for small quantity,for large quantity please contact us.   Q.:What is your payment term? A: By T/T in advance.   Q:What is the shipping method? A: Usually shipped by Express delivery (DHL, EMS, UPS, FEDEX, etc.) is adopted. Please contact us if you have any requirements.   Q:Do you accept OEM or ODM? A: Yes, our factory definitely provide OEM or ODM service, it depends on the quantity.   Q: How can I placeorder? A: You can contact us by send inquiry about your order details, or place order online.   Q: How long is the warranty? A: Most of our products provide the one year warranty.
