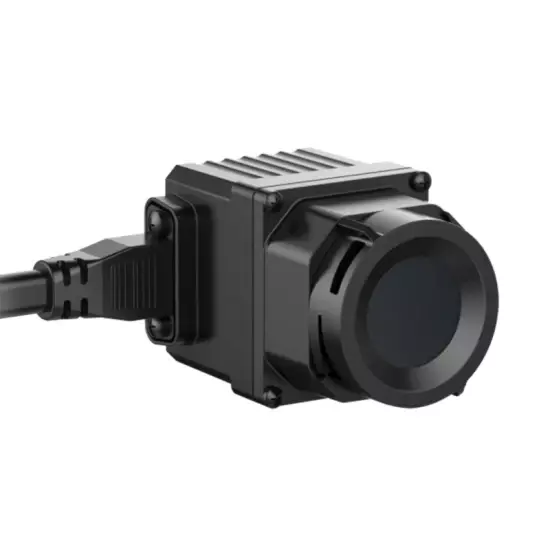

Mini Infrared Thermal Imager High Range Module Car Thermal Imaging Night Vision with Strong Concealment

Model NO. DA-N Function Video Storing, Self-checking, Identity Recognition Shooting Angle Customized Pixel Customized SD Card Memory Size Customized Type Night Vision Style Image Recorder Camera Customized Video Resolution High Definition Specification Box Trademark DA Origin China Production Capacity 5000 Piece/Month

Packaging & Delivery

Package Size 40.00cm * 40.00cm * 30.00cm Package Gross Weight 4.000kg

Product Description

Product Description

The DA-N infrared thermal imaging product (hereinafter referred to as the "product") is mainly used in advanced assisted driving of automobiles. It can obtain clear images during driving at night or in low light, and provide more comprehensive and accurate information on potential hazards to help The driver obtains a higher foresight ability.

Application

Product Parameters SpecificationSensor TypeUncooled VoxResolution400 x 300Pixel17umSpectral band8um~14umAnalog videoCVBS CVBSPAL NTSC768x576720x48025Hz30HzImage Algorithm Automatic brightness contrast, image increasePowerVideo connect CVBSPower inputDC9V-DC32V, typical 24VPower adapter≤3.5W(@24V power,don't start window heating )≤9W(@24V power,start window heating )EnvironmentWork Temp.-40ºC~+85ºC Storage Temp.-45ºC~+90ºCProtection IP67Lens system Lens focus 9.7mm/F1.0 FOV 37.0°x 28.0° Physical properties        Size40*36*58mm(excludes connector)Weight150g±3g(excludes cable)SystemStart time≤8S(Normal temp.)Shutter controlAutoHeatingWhen the window temperature is lower than 2ºC±2ºC, it will automatically start the intelligent heating. When the window temperature is higher than 7ºC±2ºC, it will automatically turn off the heating functionDetection rangeDetection rangeHuman(1.8m*0.5m) ≥150m  Vehicle(2.3m*2.3m) ≥300m Company Profile
