Military Multifunctional Long Distance 10km Handheld Binocular Infrared Night Vision Cooled Thermal Imager Camera

Model NO. DA-C640 Operation Principle Infrared Night Vision Shell Material Metal Customized Customized Sensor Mwir Resolution 640X512px Wavelength Response Range 3-5um Fov 7X5.2~2.3X1.7 Focal Length 78~240mm Continuous Zoom Cooling Time Less 6 Mins Visible Camera Yes Laser Range Finder Yes Power Battery Powered Operating Hours Continuous Working Time More Than 6 Hours External Power Supply Yes Take Picture Yes Record Video Yes GPS/Beidou Yes Adjustment Range -4 ~+4 Transport Package Military safety Box Specification DA-C640 Trademark CZVZ Origin Shaanxi Production Capacity 100PCS/Month

Product Description

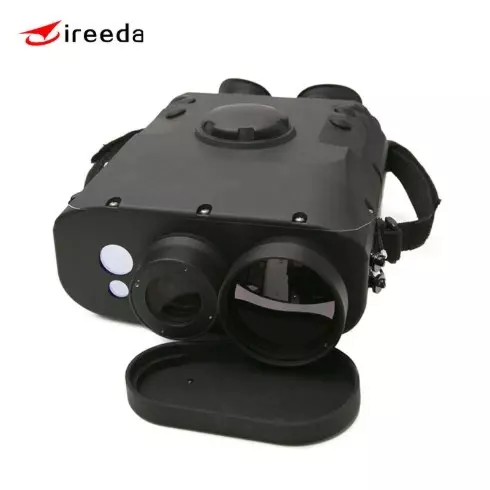

Military multifunctional long distance 10km handheld binocular infrared night vision cooled thermal imager camera  For more details just contact Ms.Melin:     Product Description DA-C640 series are multi-functional cooled handheld binocular thermal imagers. It comprises a thermal imager with 8x continuous optical zoom, CCD visual camera digital compass GPS, and a visual camera.MH-MC is compact and portable. It is designed for border defense, customs, police surveillance, etc. Compact design, wide field of view, and sensitive sensors or image intensifier tubes, this handheld night vision binocular provides a reliable solution for nighttime observation. Which it can provide to enhance viewing in low light conditions,on straight night vision and moonlight. It is designed for military, hunting, wildlife observation, security, and surveillance, and so on.



Detailed Photos



Product Parameters

Technical ParametersInfrared channelSensorMWIRResolution640x 512px Wavelength response range3~5 µmField of view7°x5.2° ~ 2.3°x1.7°Focal Length78~240mm continuous zoomCooling time≤ 6 minuteVisible camera channelSensor1920*1080px Color CMOSPixel Format2 MegapixelsField of view7°x5.2° ~ 1.8°x1.3°Focal Length26~105mm continuous zoomFog penetrationWhen visibility≥4km, the fog penetration ratio is 1.5RangeThermal ChannelHumanDetection≥ 5000 mRecognition≥ 3500 mVehicleDetection≥ 12000 mRecognition≥ 8000 mVisible camera channelHumanDetection≥ 5000 mRecognition≥ 3500 mVehicleDetection≥ 12000 mRecognition≥ 8000 mLaser Range FinderBig target≥ 10000 mVehicle≥ 8000 mPower ParameterPowerBattery-poweredOperating hoursContinuous working time: ≥6hoursExternal power supply ModeyesImage And Video StorageImage  ≥1000 pcs JPEG format pictureVideo ≥  four (4) hours of video storageGPS/BeidouPositioning accuracyHorizontal: 5m (CEP), Vertical: 4m (PE)Target PositioningWhen the observation distance is 3km, the target positioning accuracy is 5m (CEP)Eyepiece Diopter AdjustmentAdjustment range   -4°~ +4°Digital Electronic CompassMagnetic azimuth angle measurement Accuracy: 0.12°DisplayHigh Definition OLED with 1280 x 1024Volume & WeightSize≤ 290*200*90mmWeight≤ 3.3kg ( battery included) Environmental parametersProtection levelIP68Operating Temperature-40°C~+55°CStorage Temperature-55°C~+55°C   Packaging & Shipping



Application

DA-C640 High Quality with GPS and compass Waterproof  Binoculars Military handheld Night Vision Thermal cooled camera is a high-performance, multifunctional refrigerated infrared reconnaissance equipment, integrating reconnaissance, ranging, positioning, orientation, and other functions in one. It can be used to observe the battlefield day and night. Know the enemy's situation and terrain, observe the observation target and shooting effect, etc.
