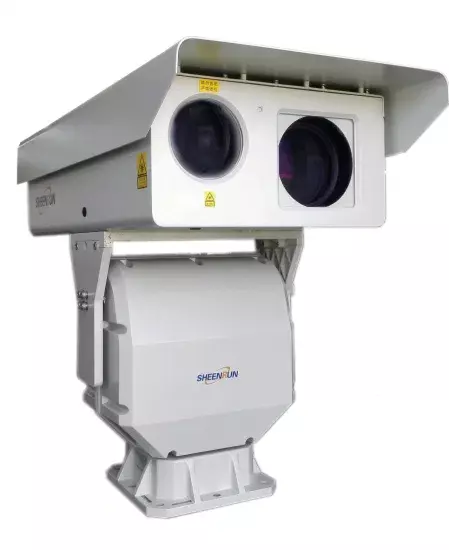

Military Grade Long Range Laser Night Vision IP Camera for Security Project

Model NO. HLV 3020 Sensor CMOS HDMI Format 1080P Horizontal Resolution 540tvl Kind Autofocus Lens Certification CE, FCC, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition, Vandal-proof Effective Distance 3000 M Sensor Size 1/1.8′′ Remote Control With Remote Control Day Vision 6500m Night Vision 3000m Focal Length 20~1000mm Fov 0.38°~17.8° Sensor Type 1/1.8"Progressive Scan CMOS Coding Mode H.264/MPEG4/Mjpeg Video Resolution 1080P,CIF,Supporting Three Stream Illuminating Lens 60* Zooming Laser Telephoto Lens Power 20W Wave Length 810nm Transport Package Carton Specification 440mm× 213mm× 217mm Trademark CZVZ Origin Shandong Province, China Production Capacity 200 Units / Month

Packaging & Delivery

Package Size 60.00cm * 50.00cm * 40.00cm Package Gross Weight 35.000kg

Product Description

Product features Synchronous zooming laser illuminating system, long illuminating distance, large illuminating range, realizing monitoring in 0Lux complete black Day and night low illuminance 2 megapixels color to black camera, day and night continuous monitoring MCIC multi-tube core fusion mixed mode light homogenization technology, no speckle and dark ring, high edge definition Supporting fog penetration, backlight compensation, multistage wide dynamic Optional auto focusing function, realizing multiple focusing mode and triggering mode Supporting camera back focal length fine adjustment technology and camera remote debugging Supporting long focal length speed limit and 3D locating function Abundant network protocol and good network applicability, adapting all kinds of network environment External MMA fine adjustment mechanism, no need to disassemble to complete laser alignment adjustment Professionally designed shell, artistic, light, firm, anti-high temp, anti-corrosion, water proof, anti-acid rain   Specification   Monitoring distanceNight vision3000metersDay vision6500metersImaging lensFocal length20~1000mmFOV0.38°~17.8°Auto focusingSupporting(optional)Fog penetrationSupporting(optional)CameraSensor type1/1.8"Progressive Scan CMOSCoding modeH.264/MPEG4/MJPEGVideo resolution1080P,CIF,supporting three streamVideo bit rate32Kbps~16MbpsVideo frame rate1~25F/S(50Hz),1~30F/S(60Hz)IlluminatorIlluminating lens60* zooming laser telephoto lensPower20WWave length810nmIlluminating angle0.3°~18°continuous changingLight  homogenizationmulti-tube core fusion mixed mode light homogenization technologyShieldMaterialPrecise casting aluminum alloyWindow glass4mm crystallite super white optical glassPan-tiltCarrying capacity50kg(top load)AngleHorizontal 360°continuous rotation,pitching -45°~+45°(-60°~+20° optional)SpeedHorizontal 0.01°~12°/s,pitching 0.01°~8°/sPreset bits255 bits,supporting lens zooming,focusing and preset bitsAuto cruising8 paths,10 preset bits each pathAnti-lightning2000VInterfacePower supply interfaceAC24VNetwork interface1×10Base-T/100Base-TX,RJ45Environment indicatorsWorking temp-25ºC~+55ºCStorage temp-40ºC~+65ºCProtection gradeIP66Power supplyWhole machine power supplyAC24V±10%,appendant AC220V~AC24V/5A water proof power supplyWhole machine power consumption≤150WPhysical featuresWeight50kgInstallation methodoutdoor pedestal mounting
