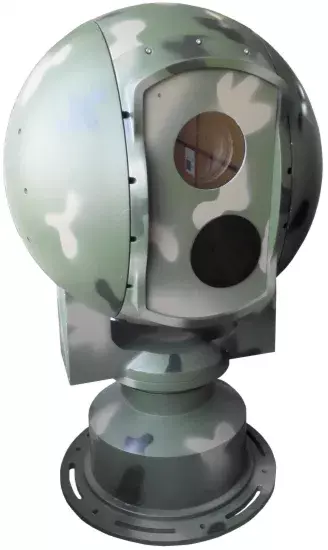

Military Grade Dual Sensor Daylight and Thermal Imaging Camera for Government Project

Model NO. PT500HLV3020TIR300-E Sensor Cooled Detector(Vox) HDMI Format 480P Horizontal Resolution 384×288 Kind Autofocus Lens Certification CE, FCC, RoHS, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition, Vandal-proof Effective Distance 15km Sensor Size 1/3 inch Remote Control Without Remote Control HD Camera 9000m Thermal Detect 6270 for Human; 15330m for Car Thermal Recognize 1570m for Human; 3830m for Car Thermal Identify 780m for Human; 1920m for Car Detector Cooled Detector Pixel 384×288 Spectrum 8~14μm Netd ≤25mk Frame Rate 25 Hz Focal Length 75/300mm Dual Fov Lens Transport Package Carton Specification 400mm× 400mm× 500mm Trademark CZVZ Origin China Production Capacity 10 Units / Month

Product Description

 Features:    Adopting thermal imaging technology, imaging clearly, can search in large area and recognize objectives in long distance High resolution infrared detector with NETD≤ 50mK Day and night 2 megapixels low illuminance color camera, realizing day and night continuous monitoring Optional auto focusing function, realizing multiple focusing mode and triggering mode Optional thermal imaging camera presetting function, remembering FOV of each preset bit, enhancing working efficiency 3D locating function, can realize frame selection magnifying function and clicking to center function, reducing operating difficulty, enhancing device usability High reliability aluminum alloy electro-optical pantilt, reinforcement design, strong ability of anti-wind, anti-salt fog, low and high temperature resistance etc. Specification:   Monitoring distanceHD camera9000mThermalcameraHumanVehicle6270m15330m1570m3830m780m1920mThermal detectorDetector Cooled detectorPixel384×288Spectral range8~ 14μmNETD≤25mKFrame rate25HzImage processDDEThermal lensFocal length75/300mm dual FOV lensFOV7.3°×5.9°/1.8°×1.5°F valueF2.3Lens controlE-zoom, e-focus (auto focus optional)IFOV0.4~0.1mradHD CameraSensor type1/1.8'' Progressive Scan CMOSCoding formatH.264/MJPEG/MPEG4Video resolution1080P, CIF, supporting three streamVideo bit rate32Kbps~ 16MbpsVideo frame rate1~ 25F/S (50Hz), 1~ 30F/S (60Hz)HD lensFocal length16.7~1000mmFOV25°~ 0.45°OtherDefog, Auto focus Support for optionalPan-tiltload40kgAnglePan: 0°~ 360°; Tilt: -45°~ +45°speedPan: 0.01°~ 45°/s; Tilt: 0.01°~ 30°/sPreset200Preset accuracy±0.1° (±0.05° optional)Auto cruise8 paths, 10 presets each pathAuto scan1 pathAnti-windGrade 12InterfacePower supplyDC30VNetwork interface1x10Base-T/100Base-TX, RJ45VideoRS485/RS422, BNC video outputEnvironment indicators temp.operation -25ºC~ +55ºC (-40ºC~ +65ºC optional), Storage -40ºC~ +65ºCProtection gradeIP66Power supplyPowerWide range power input AC90~305V to output DC30V/10A, anti-water power supplyConsumption≤180W (without heater); ≤230W(with heater)   3 Our Services (1)  We generally offer one year warranty. Extended warranty is also available.  (2) Life-long technical support. Professional technical team and salesperson help you with troubleshooting procedures any time when needed. (3) We accept OEM. (4) We offer customized product.    4 Company Introduction China CZVZ Optics & Electronics Co., Ltd, which was founded in 2004, is a leading night vision equipment and rugged information equipment supplier, as well as a relying construction company of Shandong Province Academician Workstation and Night Vision Surveillance Engineering Technology Research Center. CZVZ adheres to independent innovation, developed the world's first laser night vision camera and the first uncooled continuous zoom infrared thermal imaging camera with independent intellectual property rights, its synchronous zoom laser night vision technology and continuous zoom thermal imaging technology have reached international advanced standard level, possess the world's largest market share in laser night vision market.
