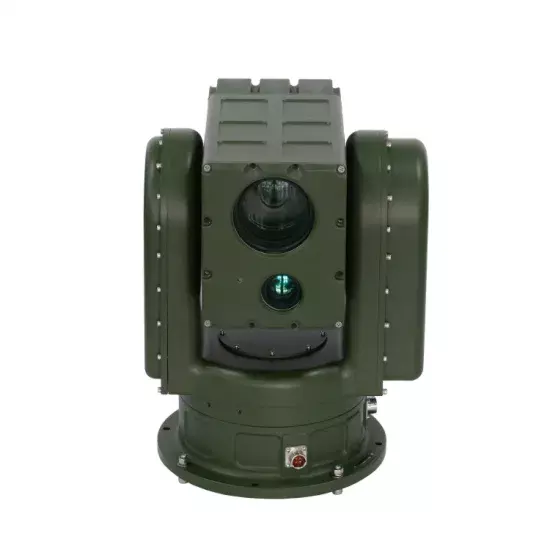

Military Grade Daylight and Thermal Imaging Camera for Border Defense

Model NO. SHR-UT450HLV1020TIR155R Sensor CMOS & Uncooled Fpa Detector HDMI Format 1080P & 480p Horizontal Resolution 540tvl Kind Autofocus Lens Certification CE, FCC, RoHS, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition, Vandal-proof Effective Distance Day:2000m Thermal: 9900m Sensor Size 1/1.8 Remote Control With Remote Control HD Daylight Camera 2000m Thermal Detect Human 3600m; Car 9900 Thermal Recognize Human 900; Car 2470 Thermal Identify Human 450; Car 1200 Thermal Pixel 324X256 Thermal Lens 30~150mm, 5X Zoom HD Camera Sensor 1/1.8′′ Progressive Scan CMOS HD Camera Lens 10~320mm PTZ Angle Pan: 0°~ 360°; Tilt: -45°~ +45° PTZ Precision ±0.1°(±0.05° Optional) Transport Package Carton Specification 400mm× 400mm× 500mm Trademark CZVZ Origin China Production Capacity 10 Units / Month

Packaging & Delivery

Package Size 55.00cm * 45.00cm * 45.00cm Package Gross Weight 40.000kg

Product Description

  1 Features: Adopting thermal imaging technology, imaging clearly, can search in large area and recognize objectives in long distance 324×256 high resolution infrared detector with NETD≤ 50mK Day and night 2 megapixels low illuminance color camera, realizing day and night continuous monitoring Optional auto focusing function, realizing multiple focusing mode and triggering mode Optional thermal imaging camera presetting function, remembering FOV of each preset bit, enhancing working efficiency 3D locating function, can realize frame selection magnifying function and clicking to center function, reducing operating difficulty, enhancing device usability High reliability aluminum alloy electro-optical pantilt, reinforcement design, strong ability of anti-wind, anti-salt fog, low and high temperature resistance etc.  2 Specification:   Monitoring distanceVisible camera2000mObjectHumanVehicleThermal camera3600m9900m900m2470m450m1200mThermal detectorDetector Uncooled microbolometer focal plane array(Vox)Effective pixel324×256Spectral range8~ 14μmNETD≤[email protected],300KFrame rate25HzImage processDDE, pseudo colorThermal lensFocal length30~150mm,5x zoomFOV3.1°×2.4°~15.2°×12.2°F valueF1.0~ F1.2Lens controlE-zoom, e-focus (auto focus optional)IFOV0.17~0.83mradHD CameraSensor type1/1.8'' Progressive Scan CMOSCoding formatH.264/MJPEG/MPEG4Video resolution1080P, CIF,supporting three streamVideo bit rate32Kbps~ 16MbpsVideo frame rate1~ 25F/S (50Hz), 1~ 30F/S (60Hz)HD lensFocal length10~320mmFOV1.4°~ 38.5°OtherDefog, Auto focus Support for optionalPan-tiltload25kgAnglePan: 0°~ 360°; Tilt: -45°~ +45°speedPan: 0.01°~ 45°/s; Tilt: 0.01°~ 30°/sPreset200Preset accuracy±0.1°(±0.05° optional)Auto cruise8 paths, 10 presets each pathAuto scan1 path Anti-windGrade 12InterfacePower supplyDC30VNetwork interface1x10Base-T/100Base-TX, RJ45Video interfaceRS485/RS422, BNC video outputEnvironment indicators temp.operation -25ºC~ +55ºC (-40ºC~ +65ºC optional), Storage -40ºC~ +65ºCProtection gradeIP66Power supplypower supplyWide range power input AC90~305V to output DC30V/10A, anti-water power supplyConsumption≤180W       3 Our Services (1)  We generally offer one year warranty. Extended warranty is also available.  (2) Life-long technical support. Professional technical team and salesperson help you with troubleshooting procedures any time when needed. (3) We accept OEM. (4) We offer customized product.    4 Company Introduction China CZVZ Optics & Electronics Co., Ltd, which was founded in 2004, is a leading night vision equipment and rugged information equipment supplier, as well as a relying construction company of Shandong Province Academician Workstation and Night Vision Surveillance Engineering Technology Research Center. CZVZ adheres to independent innovation, developed the world's first laser night vision camera and the first uncooled continuous zoom infrared thermal imaging camera with independent intellectual property rights, its synchronous zoom laser night vision technology and continuous zoom thermal imaging technology have reached international advanced standard level, possess the world's largest market share in laser night vision market.
