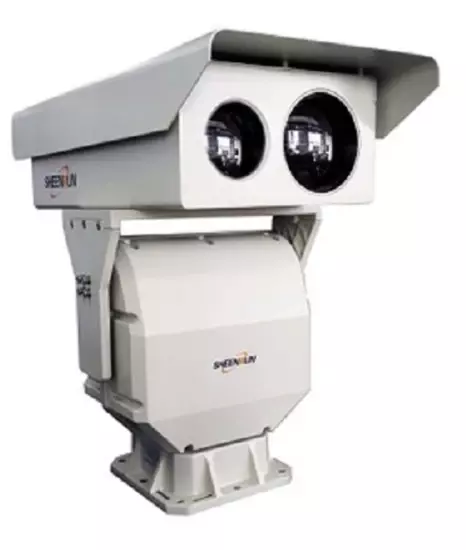

Military Grade Day and Thermal PTZ Camera for Sale

Model NO. SHR-HLV1520TIR104R Sensor Uncooled Fpa Detector (Vox) Kind Autofocus Lens Certification CE, FCC, RoHS, ISO9001: 2000 Feature Waterproof / Weatherproof, Mini Size, Vandal-proof Effective Distance Over 1000m Sensor Size 1/3 inch Remote Control With Remote Control Thermal Detection Distance 2800m for Human, 8000m for Vehicle Thermal Recognition Distance 700m for Human, 2000m for Vehicle Daylight Camera Distance 1000m Thermal Lens 25-100mm, 4X Optical Zoom Thermal Camera Detector 640×512 Uncooled Vox Detector Thermal Lens F Value F 1.0 Thermal Lens Control Electric Focus, Auto Focus Daylight Camera Lens 15.2~500mm Pixel 2.1MP Size 637×377×573mm Transport Package Carton / Wooden Case Specification 45kg Trademark CZVZ Origin Shandong Province, China Production Capacity 1000 Units / Month

Packaging & Delivery

Package Size 60.00cm * 50.00cm * 40.00cm Package Gross Weight 25.000kg

Product Description

1  Features (1) 384×288/640×512 High resolution uncooled microbolometer infrared focal plane arrays,vox(2) 25µm super small pixel,image quality fine,observe small target more clearly,further detection distance(3) High sensitivity, NETD can reach 50mk and frame at 25Hz(4) Word originate 25~100mm continuous zooming,can search in a wide range as well as identify target far,don't lost target(5) Image noise reduction processing,add DDE function; output hot white/ hot black/pseudo color(6) Low power consumption, quick start-up, stable performance, image clearly with high uniformity(7) Simple operation,easy to use and maintain (8) Precision casting aluminium alloy shell,sealed and waterproof,nitrogen inside, anti-harsh environment,overlength working lifetime 2. Specifications  Operating distanceVisible light5000mThermal imagingobjecthuman(1.8m×0.5m)Vehicle(2.3m×2.3m)Detection distance2800m8000mRecognition distance700m2000mIdentification distance350m1000mHD lensLens15.2~500mmFOV0.8°~25.6°Aperture TypeAuto ApertureFocusManual/AutoCamera and video codingSensor type1/1.8" Progressive Scan CMOSTotal pixels2.1MPCamera controlAuto gain control, auto white balance, auto backlight compensation, supporting manual and auto day and night mode switchPenetrate fogOn/Off optionalPost-focusingSupport, Remote-testCoding formatH.265/H.264/MJPEGNoise reduction3D Digital noise reductionVideo resolution1920x1080, three stream supportedVideo frame rate50Hz:25fps(1920×1080),25fps (1280×720)60Hz:30fps(1920×1080),30fps (1280×720)Image adjustmentbrightness, contrast ratio, saturationInfrared lensFocal length25~100mm,5× optical zoomingFOV3.7°x2.8°~14.9°x11.2°(384x288)6.2°x4.7°~24.6°x18.5°(640x512)F valueF1.0~F1.2Lens controlelectric zooming, electric focusing (auto focusing optional)DetectorDetector typeUncooled microbolometer focal plane array(VOx)Effective pixels384×288/640x512Spectral range8~14μmTemp sensitivity≤[email protected],300KFrame rate25HzImage processingDDE, pseudo colorPan-tiltCarrying capacity50kg (top load)AngleHorizontal 360°continuous rotation, pitching -45°~+45°SpeedHorizontal 001°~20°/s, pitching 0.1°~10°/sPreset bits255Cruising2 paths,64 bits each pathAuto-scan1 pathInterfacePower supply interfaceDC30VNetwork interface1×10Base-T/100Base-TX,RJ45Environment indicatorsWorking temp-25ºC~+55ºCStorage temp-40ºC~+65ºCProtection gradeIP66Power supplyWhole machine power supply90VAC~305VAC to DC30V water proof power supplyWhole machine power consumption≤120WPhysical featuresWhole machine weight≤45kgDimension637×377×573(L×W×H)mmInstallation methodOutdoor pedestal mounting 3 Our Services (1)  We generally offer one year warranty. Extended warranty is also available.  (2) Life-long technical support. Professional technical team and salesperson help you with troubleshooting procedures any time when needed. (3) We accept OEM. (4) We offer customized product.    4 Company Introduction China CZVZ Optics & Electronics Co., Ltd, which was founded in 2004, is a leading night vision equipment and rugged information equipment supplier, as well as a relying construction company of Shandong Province Academician Workstation and Night Vision Surveillance Engineering Technology Research Center. CZVZ adheres to independent innovation, developed the world's first laser night vision camera and the first uncooled continuous zoom infrared thermal imaging camera with independent intellectual property rights, its synchronous zoom laser night vision technology and continuous zoom thermal imaging technology have reached international advanced standard level, possess the world's largest market share in laser night vision market.
