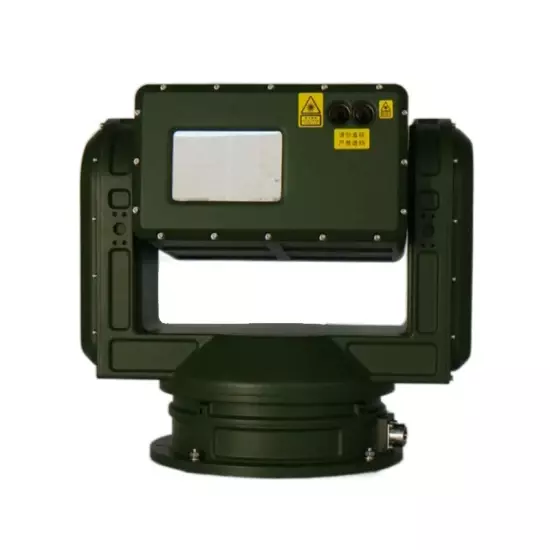

Military Grade Day and Night U Shape Electro-Optical PTZ Camera System with High Precision

Model NO. SHR-UT550HLV4020HTIR210R Sensor CMOS and Uncooled Fpa Detector HDMI Format 1080P Kind Autofocus Lens Certification CE, FCC, CCC, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition, Vandal-proof Effective Distance 16 Km Sensor Size 1/3 inch Remote Control With Remote Control Thermal Detector Uncooled Microbolometer Focal Plane Array(Vox) Thermal Detector Pixels 640×512 Thermal Lens 20~200mm, 10X Zoom Thermal Lens F Value F1.0~ F1.2 HD Camera Sensor 1/1.8′′ Progressive Scan CMOS HD Camera Lens 16.7~1000mm PTZ Angle Pan: 0°~ 360°; Tilt: -45°~ +45° PTZ Speed Pan: 0.01~ 45°/S; Tilt: 0.01~ 30°/S PTZ Accuracy ±0.1°(±0.05° Optional) Protection Grade IP66 Transport Package Carton Specification 400mm× 400mm× 500mm Trademark CZVZ Origin China Production Capacity 10 Units / Month

Packaging & Delivery

Package Size 50.00cm * 45.00cm * 45.00cm Package Gross Weight 25.000kg

Product Description

1 Features:   Adopting thermal imaging technology, imaging clearly, can search in large area and recognize objectives in long distance 640× 512 high resolution infrared detector with NETD≤ 50mK Day and night 2 megapixels low illuminance color camera, realizing day and night continuous monitoring Optional auto focusing function, realizing multiple focusing mode and triggering mode Optional thermal imaging camera presetting function, remembering FOV of each preset bit, enhancing working efficiency 3D locating function, can realize frame selection magnifying function and clicking to center function, reducing operating difficulty, enhancing device usability High reliability aluminum alloy electro-optical pantilt, reinforcement design, strong ability of anti-wind, anti-salt fog, low and high temperature resistance etc.   2 Specification:   ModelUT550HLV4020HTIR210RMonitoring distanceVisible camera9000mObjectHumanVehicleThermal camera5600m16000m1400m4000m780m2000mThermal detectorDetector Uncooled microbolometer focal plane array(Vox)Effective pixel640×512Spectral range8~ 14μmNETD≤[email protected],300KFrame rate25HzImage processDDE, pseudo colorThermal lensFocal length20~200mm,10x zoomFOV3.1°×2.5°~30.4°×24.6°F valueF1.0~ F1.2Lens controlE-zoom, e-focus(auto focus optional)IFOV0.09~0.85mradHD CameraSensor type1/1.8'' Progressive Scan CMOSCoding formatH.264/MJPEG/MPEG4Video resolution1080P,CIF,supporting three streamVideo bit rate32Kbps~ 16MbpsVideo frame rate1~ 25F/S (50Hz), 1~ 30F/S (60Hz)HD lensFocal length16.7~1000mmFOV25°~ 0.45°OtherDefog, Auto focus Support for optionalPan-tiltload40kgAnglePan: 0°~ 360°; Tilt: -45°~ +45°speedPan: 0.01°~ 45°/s; Tilt: 0.01°~ 30°/sPreset200Preset accuracy±0.1°(±0.05° optional)Auto cruise8 paths, 10 presets each pathAuto scan1 path Anti-windGrade 12InterfacePower supplyDC30VNetwork interface1x10Base-T/100Base-TX, RJ45Video interfaceRS485/RS422, BNC video outputEnvironment indicators temp.operation -25ºC~ +55ºC (-40ºC~ +65ºC optional), Storage -40ºC~ +65ºCProtection gradeIP66Power supplypower supplyWide range power input AC90~305V to output DC30V/10A, anti-water power supplyConsumption≤180W   3 Our Services (1)  We generally offer one year warranty. Extended warranty is also available.  (2) Life-long technical support. Professional technical team and salesperson help you with troubleshooting procedures any time when needed. (3) We accept OEM. (4) We offer customized product.    4 Company Introduction China CZVZ Optics & Electronics Co., Ltd, which was founded in 2004, is a leading night vision equipment and rugged information equipment supplier, as well as a relying construction company of Shandong Province Academician Workstation and Night Vision Surveillance Engineering Technology Research Center. CZVZ adheres to independent innovation, developed the world's first laser night vision camera and the first uncooled continuous zoom infrared thermal imaging camera with independent intellectual property rights, its synchronous zoom laser night vision technology and continuous zoom thermal imaging technology have reached international advanced standard level, possess the world's largest market share in laser night vision market.
