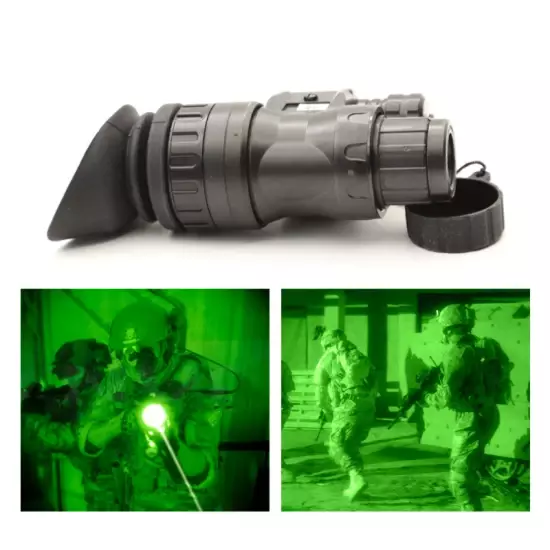

Military and Hunting Portable Mini Night Vision Goggles Monocular Helmet

Model NO. DA-HNVM Style Customized Structure Monocular Kind Image Intensifier Night Vision Operation Principle Low-light Night Vision Customized Customized Magnification 1X Generaration Image Intensifier Tube Gen2(+) Fom, Typical 1400 Transport Package Box Trademark DA Origin China

Product Description

Product Description DA-HNVM is portable and multi -functional night vision monocular,adopt Generation3 image intensifier tube, with high resolution, small in size, light in weight. Magnification can be changed by replacing different objective lens.This device guarat tees quality image for surveillance at night.It can be equipped with digital camera, videorecorder,CCD video camera .This durable and reliable device are widely used in military observation,sea defence,frontier reconnaissance,surveillance, suppress smuggling,drugs and traffickers seizure,security check ect,and also can be used in other low light condition.

Features



Application



Product Parameters IndexParametersField of View≥50°Lens System20 mm/ F 1.2Magnification1XGeneraration Image Intensifier TubeGen2(+)Resolution≥60 lp/mmFOM, Typical1400Photocathode Type18 mm S25+Photocathode Sensitivity, Typical600-900Luminous Gain, Typical10000 fl/fcdSignal to Noise Ratio, Typical23Clear Eye Distance25 mmEye Relief14 mmDetection Range (Quarter Moon)1000 mDetection Range (No Moon)800 mRecognition Range (Quarter Moon)120 mRecognition Range (No Moon)100 mNight Vision Resolution(Illuminance 1×10-1Lx, Target Contrast 85%--95%)1.0 mradNight Vision Resolution(Illuminance 1×10-1Lx, Target Contrast 35%--40%)2.8 mradFocus Range250 mm to infiniteDiopter Adjustment-6D -- +2DAuto-OffThe device will power-off automatically when the brightness exceeds 20Lx.Supply Voltage1.5V AA BatteryContinuous Working Time(Without IR Illumination)48 hContinuous Working Time(With IR Illumination)15 hMTTF10000 hOperating Temperature-32ºC -- 50ºCStorage Temperature-35ºC -- 55ºCShock Resistance20 gAnti-Battery ReverseYesProtection DegreeIP67Dimensions151*50*69 mmWeight260 gFAST Bracket Weight160 gMonocular Bracket Weight50 gBinocular Bracket Weight70 gSoft Cap Weight260 g
