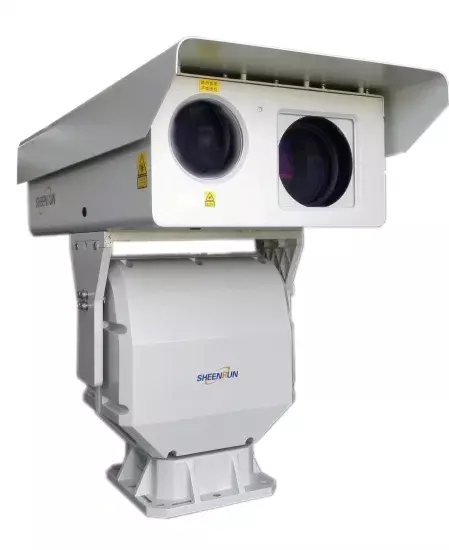

Longest Range Laser Night Vision Camera for Border Defense Project

Model NO. SHR-HLV4020 Sensor CMOS HDMI Format 1080P Horizontal Resolution 540tvl Kind Autofocus Lens Certification CE, FCC, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition, Vandal-proof Effective Distance ≧30m Sensor Size 1/3 inch Remote Control With Remote Control Day Vision 8~10km Night Vision 4km Camera Lens 16.7~1000mm  60X Camera Sensor 1/1.8′′progressive Scan CMOS Resolution 1080P, Illuminator Lens 100mmhd Focus Laser Lens Laser Wave Length 810nm Lightning Angle 0.3°~20° Continuous Zoom Weight 45kg Transport Package Carton Specification 400mm× 400mm× 500mm Trademark CZVZ Origin Shandong Province, China Production Capacity 200 Units / Month

Product Description

1 Product Features Adopt laser illuminating system, long lighting distance with large scope, uneasy to be discovered; Day & Night low illumination megapixels color to black camera, realize continuous monitoring day and night; Auto exposal control, AWB, AGC; High-efficiency video processing chips, H.264 code, HD images of millions resolution; Dual-stream function to meet the different network broadband; Rich network protocol, good adaptability; Mobile surveillance and alarm linkage, intelligence video monitoring; Built-in Web Server, convenient to control; Shifting pan-tilt, realize all directions no blind spot monitoring and high accurate orientation; Smart shell with professional design, light, firm, anti-corrosion, waterproof and acid rain proof.  2 Specification Monitoring DistanceNight vision4000mDay vision8000~10000mLensFocal length16.7~1000mm  60XIrisF3.5~16Auto irisDC driveFOV0.45°~25°Fog penetratingsupportFocus controlelectronicFocusAuto/manualPresetSupport lens zoom and focus presetinterfaceC/CSCameraSensor1/1.8''Progressive Scan CMOSPixels2MPColor modeIntegration ICR double filter switch between day and nightShutter speedAuto/manualVideo controlAGC, AWB, support day/night mode switch auto/manualFog penetratingON/OFFWDRON/OFFBLCON/OFF and area optionalInterested areaSupport ON/FF, area optionalBack focus adjusting techSupport, remote controlNoise reduction3D digitalCode typeH.264/MJPEG/MPEG4Resolution1080p,Video rate32Kbps~16MbpsFrequency50Hz:25fps(1920×1080),25fps (1280×720)60Hz:30fps(1920×1080),30fps (1280×720)Character addingCamera number, time, dateImage adjustmentLight, contrast, saturation, sharpInternet protocolTCP/IP/RTP/RTSP/HTTP/DNS/DDNS/DHCP/FTP/NTP/PPPOE/SMTP/UPNPfeaturesSupport heartbeat, video cover, password protected Laser lensFocal lenth100mmHD focus laser lenscoatingMultilayer near-infrared coatingPresetSupport precise potentiometer voltage feedbackFocus way3CAMAxis adjustingOutside MMALaser illuminatorpower15WWavelength810nmLighting angle0.3°~20° continuous zoomLaser switchAuto/manualMQMMMQMM Micro lens waveguide fiber mixed modeEncapsulateSealed NitrogenHeat emissionArray Air-cooled heat emission, inside fanShieldMaterialHigh precision aluminum alloy shellStructureIntegration double windowSurface coatingPTA Tri-proof Coating, Anti-saltfogCoating paintingPTA coating ,  anti sea corrosionPantiltBurden weight50kg(top load)Horizontal angleHorizontal 0°~360°Vertical angle-45°~+45°Pan speed0.01°~20°/sTilt speed0.01°~12°/sPresets200  Presets precision±0.1°Auto cruise8 paths, each path can set up 10 presetsAuxiliary switch2Thunder proof2000VSize320mm×206mm×380mm(L×W×H)InterfacePowerAC24VInternet1×10Base-T/100Base-TX,RJ45Environmental indicatorsOperation temperature-25ºC~+55ºCStorage temperature-40ºC~+65ºCInternational protectionIP66Salt fog proof PH6.5~7.2, Continuously spraying 48 hoursPower supplyWhole device power supplyAttached 220VAC~30VAC/6A water proof power supplyWhole device power consumption≤150WPhysical featuresWhole device weight≤45kgInstallationOutdoor base install  3 Our Services (1)  We generally offer one year warranty. Extended warranty is also available.  (2) Life-long technical support. Professional technical team and salesperson help you with troubleshooting procedures any time when needed. (3) We accept OEM. (4) We offer customized product.    4 Company Introduction China CZVZ Optics & Electronics Co., Ltd, which was founded in 2004, is a leading night vision equipment and rugged information equipment supplier, as well as a relying construction company of Shandong Province Academician Workstation and Night Vision Surveillance Engineering Technology Research Center. CZVZ adheres to independent innovation, developed the world's first laser night vision camera and the first uncooled continuous zoom infrared thermal imaging camera with independent intellectual property rights, its synchronous zoom laser night vision technology and continuous zoom thermal imaging technology have reached international advanced standard level, possess the world's largest market share in laser night vision market.
