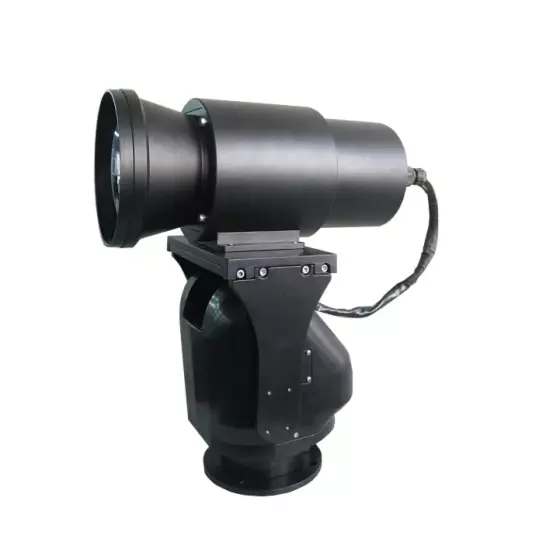

Long Range Vehicle Mounted PTZ Anti-Salt Fog Uncooled Infrared Thermal Imaging Camera

Model NO. TIR104R Sensor CMOS HDMI Format 1080P Horizontal Resolution 520tvl Kind Autofocus Lens Certification CE, FCC, CCC, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition, Vandal-proof, Auto BLC Effective Distance 10000m Sensor Size 1/3 inch Remote Control With Remote Control Weight 4 Kg Transport Package Wooden Case/Carton Specification IP66 Trademark CZVZ Origin Jinan, Shandong, China Production Capacity 5000

Product Description

Product Features1) 324×256 High resolution uncooled microbolometer infrared focal plane arrays,vox2) 25µm super small pixel,image quality fine,observe small target more clearly,further detection distance3) High sensitivity, NETD can reach 50mk and frame at 25Hz4) Word originate 25~100mm continuous zooming,can search in a wide range as well as identify target far,don't lost target5) Image noise reduction processing,add DDE function; output hot white/ hot black/pseudo color6) Low power consumption, quick start-up, stable performance, image clearly with high uniformity7) RS 485 interface control, analog video signal output8) Simple operation,easy to use and maintain9) Precision casting aluminium alloy shell,sealed and waterproof,nitrogen inside, anti-harsh environment,overlength working lifetimeSpecification Monitoring distanceObjectPeople(1.8m×0.5m)Vehicle(2.3m×2.3m)Detect distance2400m6600mRecognize distance600m1650mIdentification distance300m800mThermal lensFocal length25~100mm,4x optical zoomFOV4.6°×3.7°~18.2°×14.6°F1.0Lens controlElectronic zoom/focus(auto focus is optional)DetectorDetector typeUncooled FPA detector(vox)Pixel324×256,pixel 25µmSpectrum8~14μmNETD≤50mKFrame25HzNUCAuto/Manual/Background correctionImage processDDE,pseudo colorVideo outputPALInterfacePower supply interfaceDC12VOther interfaceRS485,BNC Video outputEnvironmental indicatorsWorking temperature-25ºC~+55ºCStorage temperature-40ºC~+65ºCInternational protectionIP66Anti-vibrationGB/T 4857.10-2005Anti-impactGB/T 15412-94 Free drop test methodAnti-thunder2000VPowerPower supplyDC12V(attached AC220V/DC12V power adapter)Power consumption≤8WPhysical featuresWeight≤4KgSize390mm×174mm×173mm(L×W×H,contain sunshield cover)InstallationOutdoor base install
